LM-212 - Echo Walk-Behind Lawn Mower Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

Walk-Behind Lawn Mower

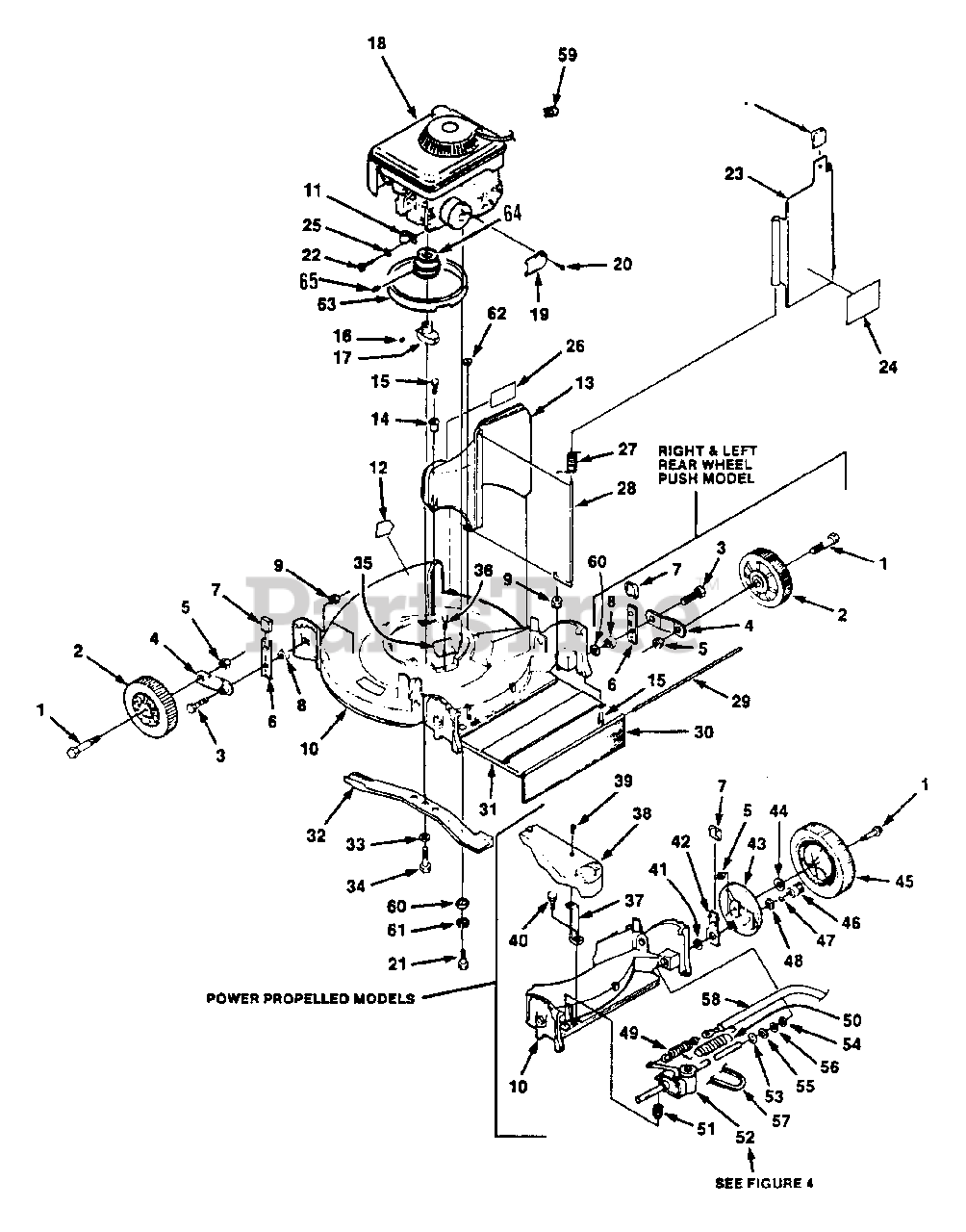

Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

  • Title

1

Echo 700992138

AXLE - ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 700993958

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 700359180

BOLT - 5/16×18
(Superseded to Discontinued)

$

$

Not available

4

Echo 700991287

ARM - WHEEL ADJUSTING

$18.99

$

Usually ships in 2-4 days

0

5

Echo 700444850

NUT - 3/8-24
(Superseded to Discontinued)

$

$

Not available

6

Echo 700990087

INDEXING SPRING & PIN ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 700336623

KNOB
(Superseded to Discontinued)

$

$

Not available

8

Echo 700358362

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 700445775

NUT - 5/16-18 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 700994059

DECK - 21"
(Superseded to Discontinued)

Note: Includes ITEM 12

$

$

Not available

11

CLAMP

Note: NOT USED ON THIS MODEL

$

$

Not available

12

Echo 700339460

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

13

Echo 700994064

CHUTE, DISCHARGE
(Superseded to Discontinued)

$

$

Not available

14

Echo 700473183

EYELET
(Superseded to Discontinued)

$

$

Not available

15

Echo 700408878

SCREW - 1/4-20×3/4" -- HEX CAP
(Superseded to Discontinued)

$

$

Not available

16

Echo 700463029

KEY
(Superseded to Discontinued)

$

$

Not available

17

Echo 700994015

ADAPTER, BLADE
(Superseded to Discontinued)

$

$

Not available

------------------

ENGINE, 4 H.P. (2-CYCLE)

$

$

Not available

------------------

DEFLECTOR, EXHAUST

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SCREW - 8/32×3/8"

Note: NOT USED ON THIS MODEL

$

$

Not available

21

Echo 700400196

SCREW - 5/16-18×2" -- HEX CAP
(Superseded to Discontinued)

$

$

Not available

------------------

SCREW - 1/4-20×1/2"

Note: NOT USED ON THIS MODEL

$

$

Not available

23

Echo 700994092

DOOR, CHUTE
(Superseded to Discontinued)

$

$

Not available

24

Echo 700991217

LABEL - DOOR
(Superseded to Discontinued)

Note: Includes ITEM 24

$

$

Not available

25

LOCKWASHER - 1/4"

Note: NOT USED ON THIS MODEL

$

$

Not available

26

Echo 700993367

LABEL - GASAHOL
(Superseded to Discontinued)

$

$

Not available

27

Echo 700992947

SPRING
(Superseded to Discontinued)

$

$

Not available

28

Echo 700359167

PIN, HINGE
(Superseded to Discontinued)

$

$

Not available

29

Echo 700359170

ROD, DRAG FLAP
(Superseded to Discontinued)

$

$

Not available

30

Echo 700359257

FLAP, DRAG
(Superseded to Discontinued)

$

$

Not available

31

Echo 700991284

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

32

Echo 700992766

BAR, CUTTER - 21"

$

$

Currently unavailable

33

Echo 700446142

WASHER, LOCK 3/8
(Superseded to Discontinued)

$

$

Not available

34

Echo 700994023

BOLT, HEX HEAD 3/8"-24×1-1/2"

$1.49

$

Usually ships in 2-4 days

0

35

Echo 700991286

COVER, BELT
(Superseded to Discontinued)

$

$

Not available

36

Echo 700409907

SCREW - 1/4-20×1/2" -- HEX CAP
(Superseded to Discontinued)

$

$

Not available

37

SUPPORT

Note: NOT USED ON THIS MODEL

$

$

Not available

38

COVER, DRIVE

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SCREW - 1/4-20×3/4"

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SCREW - 10-16×1/2"

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SPACER, HGT. ADJ.

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

LEVER, SPRING

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

DRIVE WHEEL SUPPORT ASSY

Note: NOT USED ON THIS MODEL; INCLUDES BUSHING

$

$

Not available

44

WASHER

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

DRIVE WHEEL

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

PINION, L.H.

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

PINION, L.H.

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

PAWL, PINION

Note: NOT USED ON THIS MODEL

$

$

Not available

48

WASHER

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SPRING

Note: NOT USED ON THIS MODEL

$

$

Not available

50

COVER, SPRING

Note: NOT USED ON THIS MODEL

$

$

Not available

51

SPRING

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

GEAR ASSY

Note: NOT USED ON THIS MODEL; Order Components

$

$

Not available

53

RING

Note: NOT USED ON THIS MODEL

$

$

Not available

54

WASHER

Note: NOT USED ON THIS MODEL

$

$

Not available

55

WASHER

Note: NOT USED ON THIS MODEL

$

$

Not available

56

SHIM

Note: NOT USED ON THIS MODEL

$

$

Not available

57

BELT, DRIVE

Note: NOT USED ON THIS MODEL

$

$

Not available

58

CABLE, TRACTION

Note: NOT USED ON THIS MODEL

$

$

Not available

59

Echo 700990567

ROPE STOP
(Superseded to Discontinued)

$

$

Not available

60

Echo 700453009

WASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

61

Echo 700446134

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

62

Echo 700453023

WASHER - 1/4"
(Superseded to Discontinued)

$

$

Not available

63

Echo 700994016

RING, ENGINE
(Superseded to Discontinued)

$

$

Not available

------------------

PULLEY, 2-SPEED

Note: NOT USED ON THIS MODEL

$

$

Not available

------------------

SCREW, SET

Note: NOT USED ON THIS MODEL

$

$

Not available
