LM-212 PB - Echo Walk-Behind Lawn Mower Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

Walk-Behind Lawn Mower

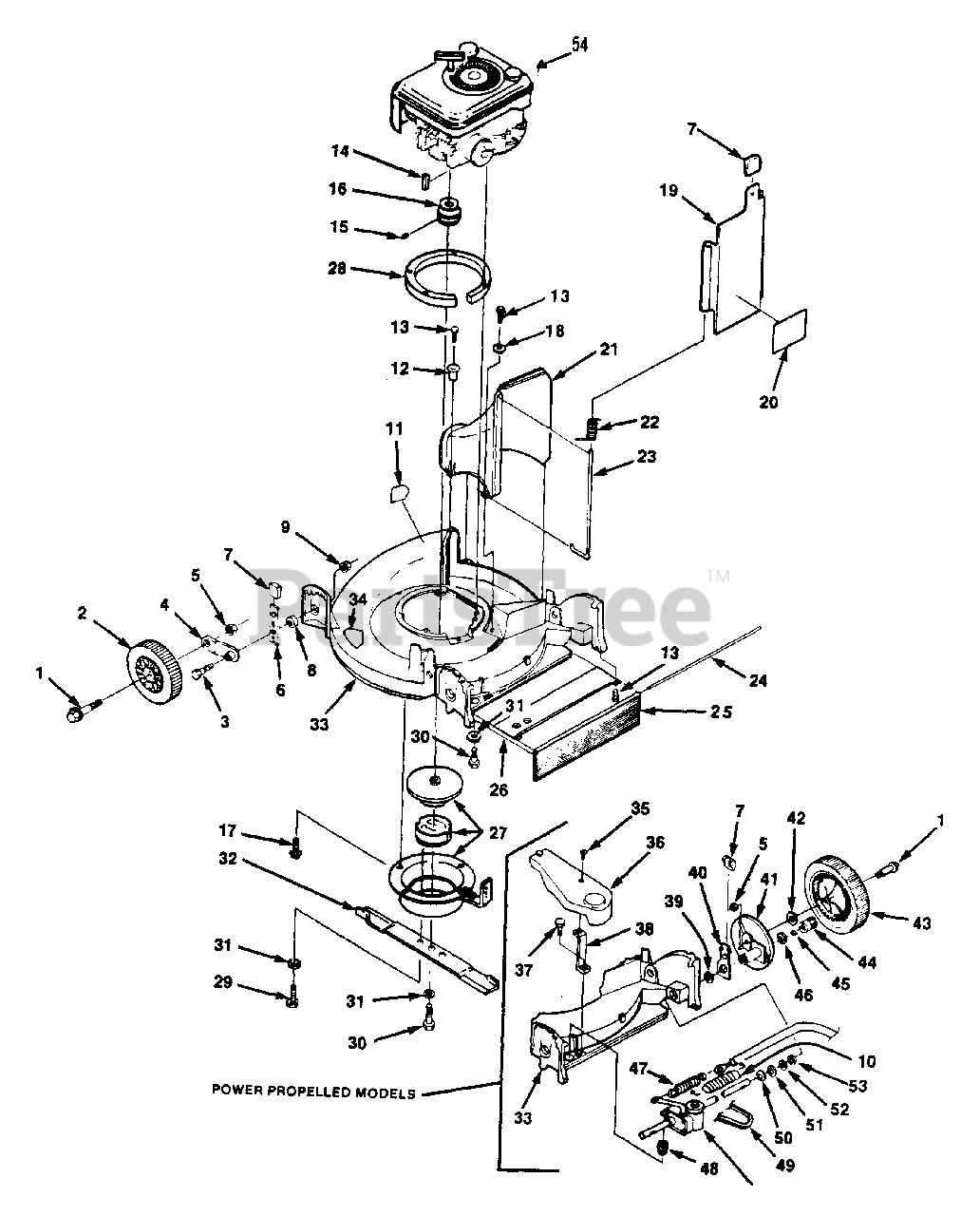

Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

  • Title

1

Echo 700992138

AXLE ASSY
(Superseded to Discontinued)

Note: Includes ITEM 5

$

$

Not available

2

Echo 700993058

WHEEL ASSY

$

$

Currently unavailable

3

Echo 700359180

BOLT - 5/16 X 18
(Superseded to Discontinued)

$

$

Not available

4

Echo 700991287

ARM - WHEEL ADJUSTING

$18.99

$

Usually ships in 2-4 days

0

5

Echo 700444850

NUT - 3/8-24
(Superseded to Discontinued)

$

$

Not available

6

Echo 700990087

INDEXING ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 700336623

KNOB
(Superseded to Discontinued)

$

$

Not available

8

Echo 700358362

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 700445775

NUT - 5/16-18 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 700359270

COVER, SPRING
(Superseded to Discontinued)

$

$

Not available

11

Echo 700339460

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

12

Echo 700473183

EYELET
(Superseded to Discontinued)

$

$

Not available

13

Echo 700408878

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

14

Echo 700463029

KEY
(Superseded to Discontinued)

$

$

Not available

15

Echo 700422505

SCREW - 1/4-20 X 3/8"
(Superseded to Discontinued)

$

$

Not available

16

Echo 700993007

PULLEY - Drive
(Superseded to Discontinued)

$

$

Not available

17

Echo 700409912

SCREW - 5/16-18
(Superseded to Discontinued)

$

$

Not available

18

Echo 700453023

WASHER - 1/4"
(Superseded to Discontinued)

$

$

Not available

19

Echo 700984092

DOOR, CHUTE

Note: Includes ITEMS 20 & 7

$

$

Currently unavailable

20

Echo 700991217

LABEL - DOOR
(Superseded to Discontinued)

$

$

Not available

21

Echo 700994064

CHUTE, DISCHARGE
(Superseded to Discontinued)

$

$

Not available

22

Echo 700992947

SPRING
(Superseded to Discontinued)

$

$

Not available

23

Echo 700359167

PIN, HINGE
(Superseded to Discontinued)

$

$

Not available

24

Echo 700359170

ROD, DRAG FLAP
(Superseded to Discontinued)

$

$

Not available

25

Echo 700359257

FLAP, DEBRIS
(Superseded to Discontinued)

$

$

Not available

26

Echo 700991285

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

27

Echo 700994213

BLADE/BRAKE/CLUTCH
(Superseded to Discontinued)

$

$

Not available

28

Echo 700994016

RING, ENGINE
(Superseded to Discontinued)

$

$

Not available

29

Echo 700401208

SCREW - 3/8-16 X 1"
(Superseded to Discontinued)

$

$

Not available

30

Echo 700401209

SCREW - 3/8-24 X 2"
(Superseded to Discontinued)

$

$

Not available

31

Echo 700446142

LOCKWASHER - 3/8"
(Superseded to Discontinued)

$

$

Not available

32

Echo 700991189

BLADE - 21" (53cm)

$

$

Currently unavailable

33

Echo 700994222

DECK ASSY
(Superseded to Discontinued)

Note: Incl. Decals

$

$

Not available

34

Echo 700992393

LABEL - FOOT PAD
(Superseded to Discontinued)

$

$

Not available

35

Echo 700408879

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

36

Echo 700994218

COVER, DRIVE
(Superseded to Discontinued)

$

$

Not available

37

Echo 700409704

SCREW - 10-16 X 1/2"
(Superseded to Discontinued)

$

$

Not available

38

Echo 700994243

SUPPORT-Belt Cover
(Superseded to Discontinued)

$

$

Not available

39

Echo 700350141

SPACER

$

$

Currently unavailable

40

Echo 700991288

INDEXING ASSY
(Superseded to Discontinued)

$

$

Not available

41

Echo 700990074

DRIVE WHEEL SUPPORT ASSY
(Superseded to Discontinued)

$

$

Not available

42

Echo 700359500

WASHER

$1.49

$

Usually ships in 2-4 days

0

43

Echo 700993975

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

44

Echo 700204244

PINION - RIGHT HAND
(Superseded to Discontinued)

$

$

Not available

44

Echo 700204245

PINION - LEFT HAND
(Superseded to Discontinued)

$

$

Not available

45

Echo 700313659

PAWL
(Superseded to Discontinued)

$

$

Not available

46

Echo 700351077

WASHER
(Superseded to Discontinued)

$

$

Not available

47

Echo 700375748

SPRING
(Superseded to Discontinued)

$

$

Not available

48

Echo 700350266

SPRING

$

$

Currently unavailable

49

Echo 700991218

BELT, DRIVE
(Superseded to Discontinued)

$

$

Not available

50

Echo 700458451

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

51

Echo 700358406

WASHER

$

$

Currently unavailable

52

Echo 700328147

WASHER
(Superseded to Discontinued)

Note: As Required

$

$

Not available

53

Echo 700454037

WASHER
(Superseded to Discontinued)

$

$

Not available

54

Echo 1162

ENGINE - M14V-B1ZO

$

$

Currently unavailable

55

------------------

GEAR REDUCER ASSY

Note: ORDER COMPONENTS

$

$

Not available
