LM-212 PB - Echo Walk-Behind Lawn Mower Drive System - Exploded View Parts Diagram

Walk-Behind Lawn Mower

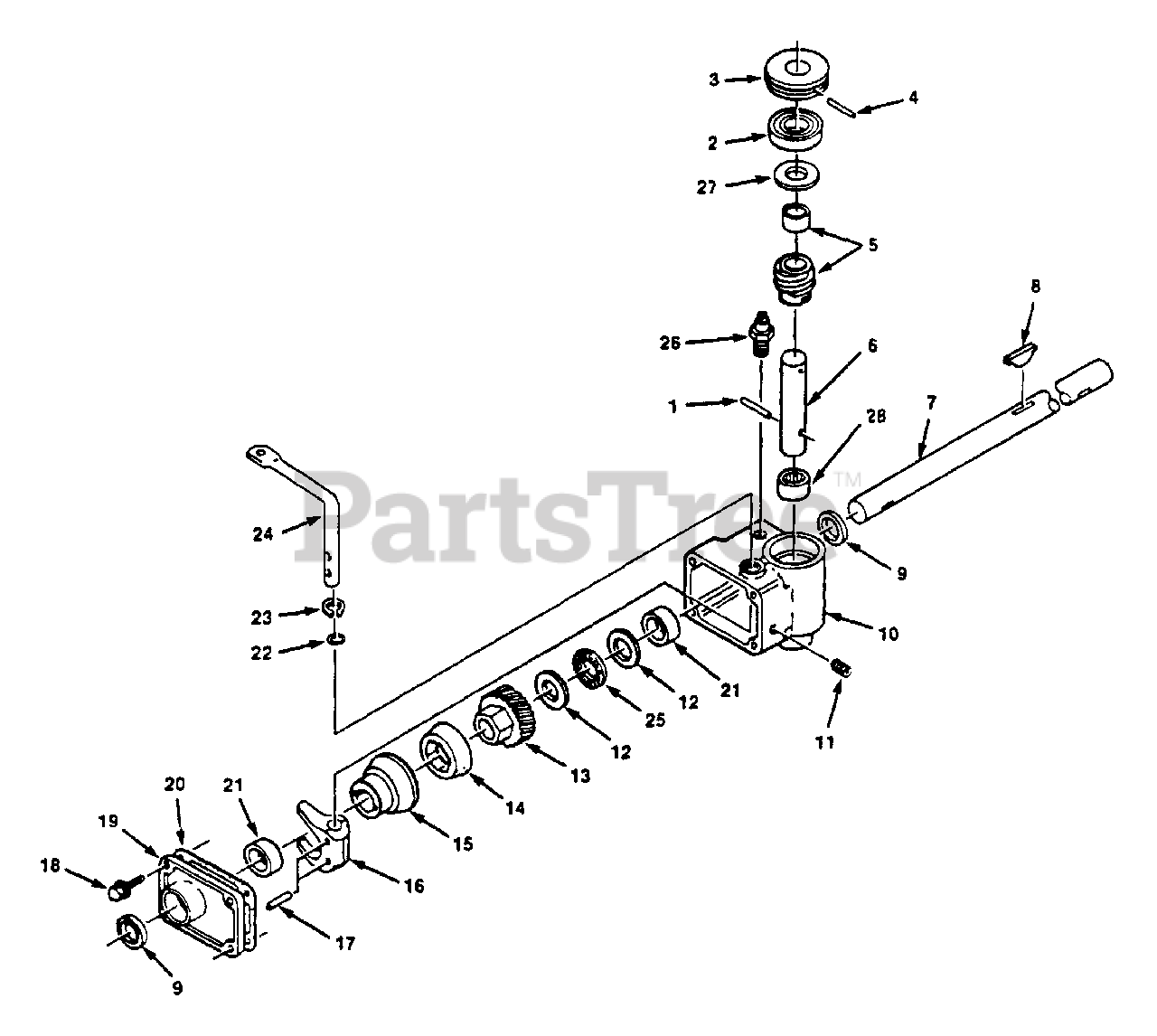

Drive System - Exploded View Parts Diagram

  • Title

1

Echo 700461415

PIN
(Superseded to Discontinued)

$

$

Not available

2

Echo 700990499

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

3

Echo 700991229

PULLEY
(Superseded to 700359085)

$

$

Not available

4

Echo 700461414

PIN
(Superseded to Discontinued)

$

$

Not available

5

Echo 700090642

WORM 4 SPACER

$

$

Currently unavailable

6

Echo 700990525

SHAFT, WORM
(Superseded to Discontinued)

$

$

Not available

7

Echo 700992980

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

8

Echo 705463101

KEY - 1/8 X 1/2"

$

$

Currently unavailable

9

Echo 700376110

SEAL
(Superseded to Discontinued)

$

$

Not available

10

Echo 700990529

GEAR REDUCER HOUSING ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 9 & 21

$

$

Not available

11

Echo 700472007

PLUG - PIPE
(Superseded to Discontinued)

$

$

Not available

12

Echo 700990446

RACE - Bearing
(Superseded to Discontinued)

$

$

Not available

13

Echo 700992770

GEAR - WORM
(Superseded to Discontinued)

$

$

Not available

14

Echo 700992780

CONE - Friction
(Superseded to Discontinued)

$

$

Not available

15

Echo 700992800

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

16

Echo 700900153

FORK-Shift

$

$

Currently unavailable

17

Echo 700461330

PIN
(Superseded to Discontinued)

$

$

Not available

18

Echo 700408862

SCREW - 1/4-20 X 7/8"
(Superseded to Discontinued)

$

$

Not available

19

Echo 700090168

COVER-Gearbox

Note: Includes ITEMS 9 & 21

$

$

Currently unavailable

20

Echo 700375948

GASKET
(Superseded to Discontinued)

$

$

Not available

21

Echo 700992820

BUSHING
(Superseded to Discontinued)

$

$

Not available

22

Echo 700459037

O-RING
(Superseded to Discontinued)

$

$

Not available

23

Echo 700458094

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

24

Echo 700994110

LEVER, SHIFT
(Superseded to Discontinued)

$

$

Not available

25

Echo 700990447

BEARING - THRUST
(Superseded to Discontinued)

$

$

Not available

26

Echo 700990415

VENT
(Superseded to Discontinued)

$

$

Not available

27

Echo 700990463

WASHER
(Superseded to Discontinued)

$

$

Not available

28

Echo 700990527

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

------------------

GEAR REDUCING ASSY

Note: ORDER COMPONENTS

$

$

Not available
