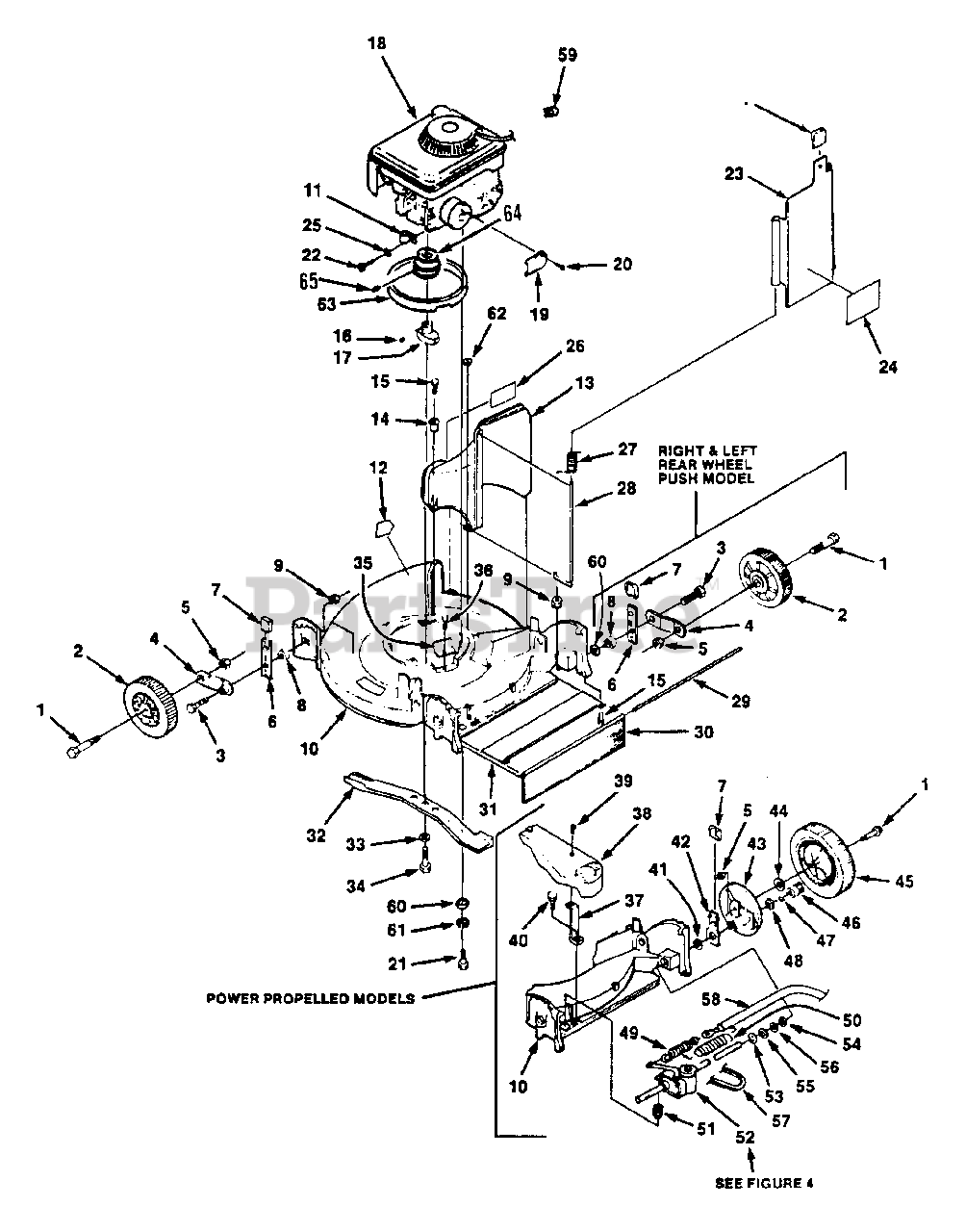

LM-214 - Echo Walk-Behind Lawn Mower Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

Walk-Behind Lawn Mower

Deck, Wheels, Discharge Chute, Blade, Drive System Parts Diagram

  • Title

1

Echo 700992138

AXLE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 700993958

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 700359180

BOLT - 5/16 X 18
(Superseded to Discontinued)

$

$

Not available

4

Echo 700991287

ARM - WHEEL ADJUSTING

$18.99

$

Usually ships in 2-4 days

0

5

Echo 700444850

NUT - 3/8-24
(Superseded to Discontinued)

$

$

Not available

6

Echo 700990087

INDEXING ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 700336623

KNOB
(Superseded to Discontinued)

$

$

Not available

8

Echo 700358362

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 700445775

NUT - 5/16-18 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 700994059

DECK - 21"
(Superseded to Discontinued)

Note: Includes ITEM 12

$

$

Not available

11

Echo 700993026

CLAMP
(Superseded to Discontinued)

$

$

Not available

12

Echo 700339460

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

13

Echo 700994064

CHUTE, DISCHARGE
(Superseded to Discontinued)

$

$

Not available

14

Echo 700473183

EYELET
(Superseded to Discontinued)

$

$

Not available

15

Echo 700408878

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

16

Echo 700463107

KEY - 5/8 X 5/32
(Superseded to Discontinued)

$

$

Not available

17

Echo 700241708

ADAPTOR, BLADE
(Superseded to Discontinued)

$

$

Not available

18

------------------

ENGINE, 4 H.P. (4-CYCLE)

Note: Includes ITEMS 19, 20, 59

$

$

Not available

19

------------------

DEFLECTOR, MUFFLER

Note: NOT USED ON THIS MODEL.

$

$

Not available

20

Echo 700408880

SCREW - 8-32 X 3/8"
(Superseded to Discontinued)

$

$

Not available

21

Echo 700408876

SCREW - 3/8-16 X 1 1/2"
(Superseded to Discontinued)

$

$

Not available

22

Echo 700400104

SCREW - 1/4-20 x 1/2"
(Superseded to Discontinued)

$

$

Not available

23

Echo 700994092

DOOR, CHUTE
(Superseded to Discontinued)

$

$

Not available

24

Echo 700991217

LABEL - DOOR
(Superseded to Discontinued)

Note: Includes ITEM 24

$

$

Not available

25

Echo 700446128

LOCKWASHER - 1/4"
(Superseded to Discontinued)

$

$

Not available

26

Echo 700993367

LABEL - GASAHOL
(Superseded to Discontinued)

$

$

Not available

27

Echo 700992947

SPRING
(Superseded to Discontinued)

$

$

Not available

29

Echo 700359170

ROD, DRAG FLAP
(Superseded to Discontinued)

$

$

Not available

30

Echo 700359257

FLAP, DEBRIS
(Superseded to Discontinued)

$

$

Not available

31

Echo 700991284

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

32

Echo 700390162

BAR, CUTTER - 21"

$

$

Not available

33

Echo 700446148

LOCKWASHER - 7/16"
(Superseded to Discontinued)

$

$

Not available

34

Echo 700991212

BOLT, SHOULDER
(Superseded to Discontinued)

$

$

Not available

35

Echo 700991286

COVER, BELT
(Superseded to Discontinued)

$

$

Not available

36

Echo 700409907

SCREW - 1/4-20 x 1/2"
(Superseded to Discontinued)

$

$

Not available

37

------------------

SUPPORT

Note: NOT USED ON THIS MODEL.

$

$

Not available

38

------------------

COVER, DRIVE

Note: NOT USED ON THIS MODEL.

$

$

Not available

39

------------------

SCREW - 1/4-20 X 3/4"

Note: NOT USED ON THIS MODEL.

$

$

Not available

40

------------------

SCREW - 10-16 X 1/2"

Note: NOT USED ON THIS MODEL.

$

$

Not available

41

------------------

SPACER, HGT. ADJ.

Note: NOT USED ON THIS MODEL.

$

$

Not available

42

------------------

SPRING, INDEX

Note: NOT USED ON THIS MODEL.

$

$

Not available

43

------------------

DRIVE WHEEL SUPPORT

Note: NOT USED ON THIS MODEL. INCLUDES BUSHING

$

$

Not available

44

------------------

WASHER

Note: NOT USED ON THIS MODEL.

$

$

Not available

45

------------------

DRIVE, WHEEL

Note: NOT USED ON THIS MODEL.

$

$

Not available

46

------------------

PINION - LEFT HAND

Note: NOT USED ON THIS MODEL.

$

$

Not available

47

------------------

PAWL, PINION

Note: NOT USED ON THIS MODEL.

$

$

Not available

48

------------------

WASHER

Note: NOT USED ON THIS MODEL.

$

$

Not available

49

------------------

SPRING, TRACTION LEVER

Note: NOT USED ON THIS MODEL.

$

$

Not available

50

------------------

COVER, SPRING

Note: NOT USED ON THIS MODEL.

$

$

Not available

51

------------------

SPRING

Note: NOT USED ON THIS MODEL.

$

$

Not available

52

------------------

GEAR REDUCER ASSY

Note: NOT USED ON THIS MODEL. Order Components

$

$

Not available

53

------------------

RING

Note: NOT USED ON THIS MODEL.

$

$

Not available

54

------------------

WASHER

Note: NOT USED ON THIS MODEL.

$

$

Not available

55

------------------

WASHER

Note: NOT USED ON THIS MODEL.

$

$

Not available

56

------------------

SHIM

Note: NOT USED ON THIS MODEL.

$

$

Not available

57

------------------

BELT, DRIVE

Note: NOT USED ON THIS MODEL.

$

$

Not available

58

------------------

CABLE, TRACTION

Note: NOT USED ON THIS MODEL.

$

$

Not available

59

Echo 700990567

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

60

Echo 700453009

WASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

61

------------------

LOCKWASHER - 5/16"

Note: NOT USED ON THIS MODEL.

$

$

Not available

62

------------------

WASHER - 1/4"

Note: NOT USED ON THIS MODEL.

$

$

Not available

63

------------------

RING, ENGINE

Note: NOT USED ON THIS MODEL.

$

$

Not available

64

------------------

2-SPEED PULLEY

Note: NOT USED ON THIS MODEL

$

$

Not available

65

------------------

SCREW - SET

Note: NOT USED ON THIS MODEL.

$

$

Not available
