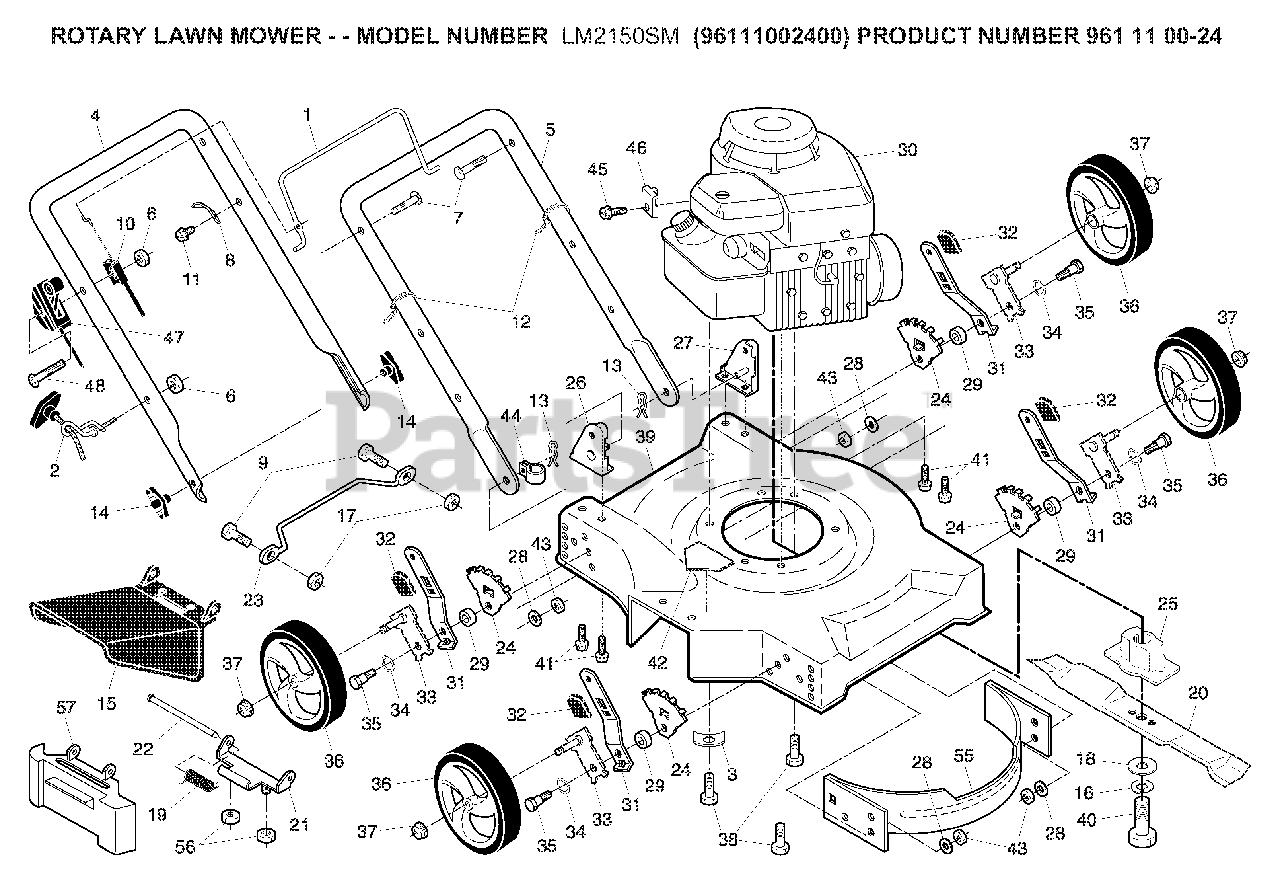

LM 2150 SM (96111002400) - Jonsered Walk-Behind Mower (2008-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532418610

No Description Available

$

$

Not available

2

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

3

Jonsered 532125078

No Description Available

$

$

Not available

4

Jonsered 532196026

HANDLE.UPPER.FGD/PUSH.BLACK

$27.99

$

Usually ships in 3-10 days

0

5

Jonsered 532155044

No Description Available
(Superseded to 532151590)

$

$

Not available

6

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

8

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

9

Jonsered 532085825

No Description Available
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Jonsered 532700892

CONTROL CABLE

$18.99

$

Usually ships in 3-10 days

0

11

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

12

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

14

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 532413568

No Description Available

$

$

Not available

16

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

17

Jonsered 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

18

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

19

Jonsered 532411832

No Description Available

$4.99

$

In Stock, Qty 5

0

20

Jonsered 532145106

BLADE.20.MULCH.(50DK,6020MD)

$14.99

$

In Stock, Qty 8

0

21

Jonsered 532088602

HINGE DEFLECTOR

$4.99

$

Usually ships in 3-10 days

0

22

Jonsered 532150215

HINGE ROD

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 532154147

No Description Available

$

$

Not available

24

Jonsered 532410807

BRACKET.ADJ.WHEEL.5POS.ADS

$4.99

$

Usually ships in 3-10 days

0

25

Jonsered 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

26

Jonsered 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

Usually ships in 3-10 days

0

27

Jonsered 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

Usually ships in 3-10 days

0

28

Jonsered 532061537

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

29

Jonsered 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 3 left!

0

31

Jonsered 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

32

Jonsered 532087877

KNOB PM

$6.49

$

In Stock, only 3 left!

0

33

Jonsered 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

Usually ships in 3-10 days

0

34

Jonsered 532401630

WASHER FLAT

$3.99

$

Usually ships in 3-10 days

0

35

Jonsered 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 15

0

36

Jonsered 532197025

No Description Available

$

$

Not available

37

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

39

Jonsered 532417797

No Description Available
(Superseded to 583366301)

$103.99

$

Usually ships in 3-10 days

0

40

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

41

Jonsered 532149741

SCREW 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

42

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

43

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

44

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

45

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

46

Jonsered 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

47

Jonsered 532700417

THROTTLE CONTROL

$24.99

$

Usually ships in 3-10 days

0

48

Jonsered 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 532141519

No Description Available
(Superseded to 583675101)

$8.99

$

Usually ships in 3-10 days

0

56

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

57

Jonsered 532412400

No Description Available
(Superseded to 583337601)

$9.99

$

Usually ships in 3-10 days

0

-

Jonsered 532141520

REAR BAFFLE
(Superseded to 532133379)

$

$

Not available
