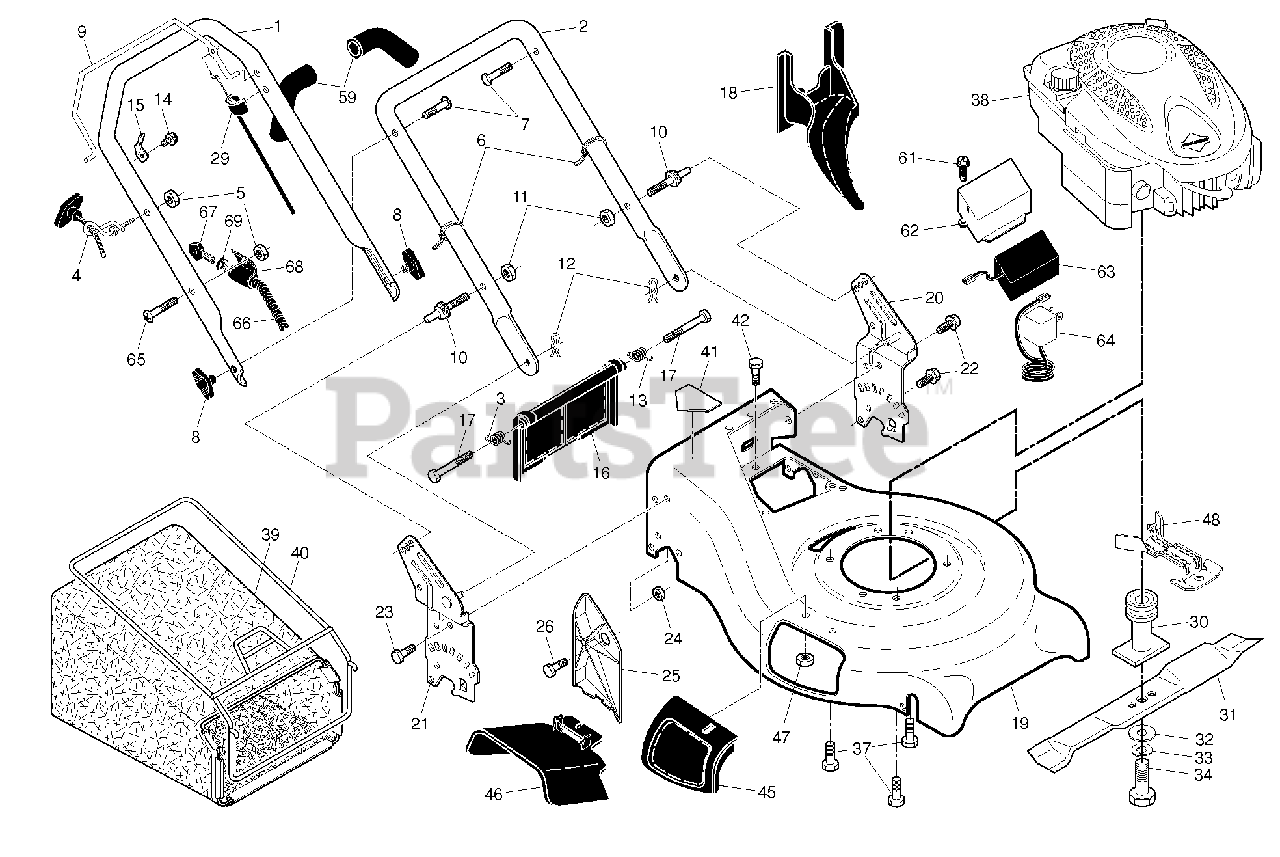

LM 2152 CMDAE (96141024200) - Jonsered Walk-Behind Mower (2010-11) FRAME ENGINE Parts Diagram

Walk-Behind Mower

FRAME ENGINE Parts Diagram

  • Title

1

Jonsered 532184576

No Description Available
(Superseded to 583134501)

Note: INCLUDES FOAM GRAIP

$56.99

$

Usually ships in 3-10 days

0

2

Jonsered 532196005

HANDLE LOWER
(Superseded to 532193664)

$

$

Not available

3

Jonsered 532405416

SPRING.RH.REAR.DOOR.21.RWGD

Note: RH

$6.49

$

In Stock, only 2 left!

0

4

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, only 4 left!

0

5

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

8

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

9

Jonsered 532426505

No Description Available

$46.99

$

Usually ships in 3-10 days

0

10

Jonsered 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

11

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 20+

0

12

Jonsered 532051793

HAIRPIN COTTER

$

$

Not available

13

Jonsered 532405415

SPRING.LH.REAR.DOOR.21.RWGD

Note: LH

$6.49

$

In Stock, only 2 left!

0

14

Jonsered 532750634

SCREW

$6.49

$

In Stock, only 4 left!

0

15

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

Usually ships in 3-10 days

0

16

Jonsered 532408888

REAR DOOR ASSEMBLY
(Superseded to 532401815)

$

$

Not available

17

Jonsered 532184193

BOLT

$

$

Not available

18

Jonsered 532198170

PLUG.MULCHER.RGD.21.

$43.99

$

Usually ships in 3-10 days

0

19

Jonsered 532438714

No Description Available
(Superseded to 583533701)

$160.99

$

Usually ships in 3-10 days

0

20

Jonsered 532194029

BRKT.ASM HNDL
(Superseded to 532193917)

Note: LH

$

$

Not available

21

Jonsered 532194031

BRKT.ASM.HNDL
(Superseded to 532418251)

Note: RH

$26.99

$

Usually ships in 3-10 days

0

22

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

23

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

Jonsered 532161333

CLIPPING DEFLECTOR

$13.99

$

Usually ships in 3-10 days

0

26

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

29

Jonsered 532425923

CABLE.MZR.47.75.SNAP-IN.PU.L

$18.99

$

In Stock, only 2 left!

0

30

Jonsered 532421176

ADAPTER.BLADE/PULLEY.25M

$31.99

$

In Stock, Qty 5

0

31

Jonsered 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

32

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

33

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

37

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 12

0

38

Jonsered 000000000

No Description Available

Note: B S 124T05-5492-B1 FOR SERICE PARTS 1-800-233-3723

$

$

Not available

39

Jonsered 532410676

No Description Available

$

$

Not available

40

Jonsered 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

41

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

Usually ships in 3-10 days

0

42

Jonsered 532054583

SCREW

$

$

Not available

45

Jonsered 532191341

No Description Available
(Superseded to 583702501)

$

$

Not available

46

Jonsered 532191210

No Description Available

$

$

Not available

47

Jonsered 532088349

NUT

$7.49

$

Usually ships in 3-10 days

0

48

Jonsered 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0

59

Jonsered 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

61

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

62

Jonsered 532408002

No Description Available
(Superseded to 583305401)

$7.99

$

Usually ships in 3-10 days

0

63

Jonsered 532189589

BATTERY.AMP.CONNECTOR
(Superseded to 584353901)

$

$

Not available

64

Jonsered 532192436

No Description Available
(Superseded to 583203301)

$84.99

$

Usually ships in 3-10 days

0

65

Jonsered 532186159

SCREW.(COMBINATION CONTROL)

$7.99

$

Usually ships in 3-10 days

0

66

Jonsered 532197363

No Description Available

$

$

Not available

67

Jonsered 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 10

0

68

Jonsered 532194847

HOUSING.WIRING.HARNESS

$10.99

$

Usually ships in 3-10 days

0

69

Jonsered 532194848

NUT.CAP.SNAP-ON.KEY START

$7.49

$

Usually ships in 3-10 days

0

Jonsered 532182191

No Description Available

Note: NOT SHOWN

$

$

Not available
