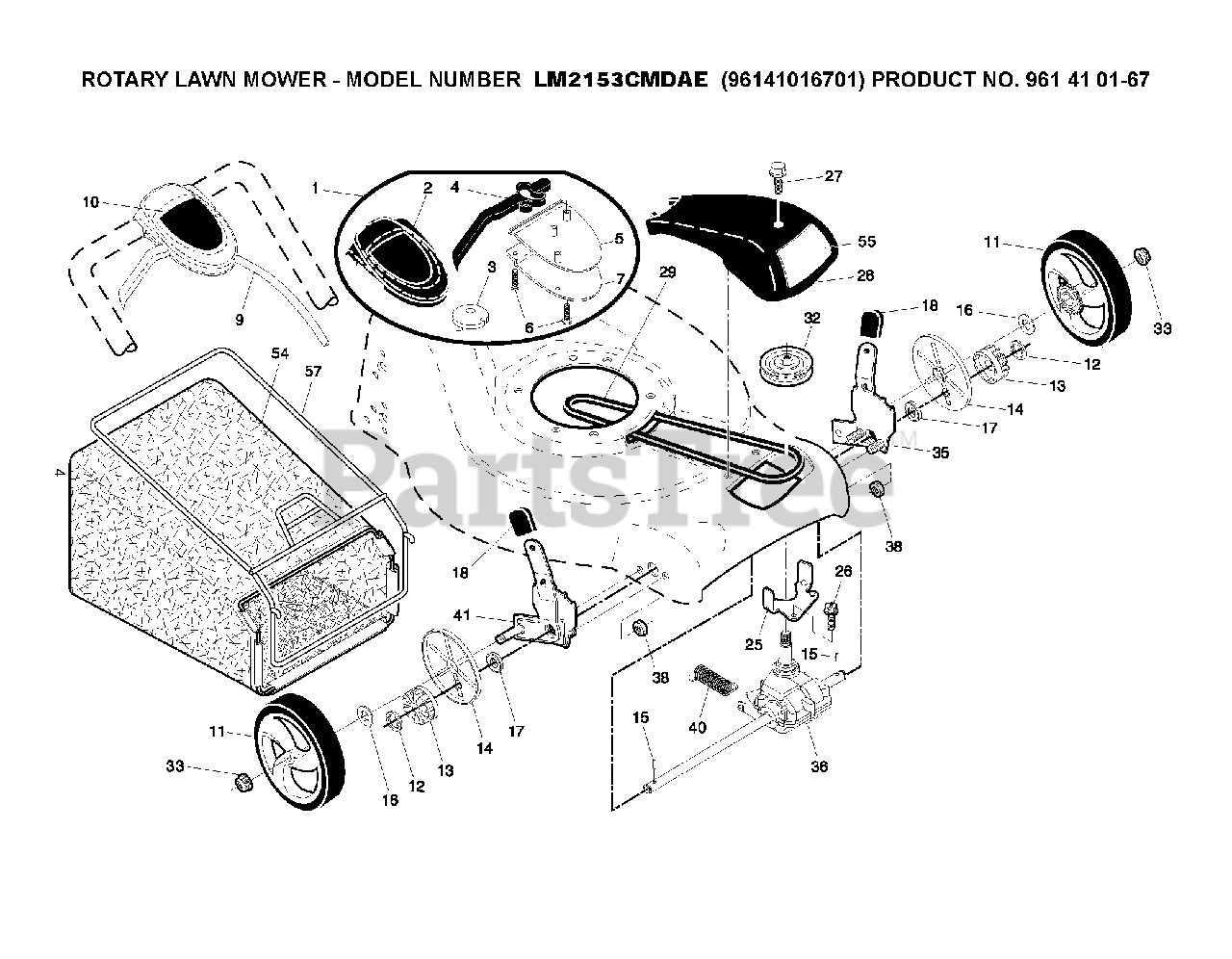

LM 2153 C (961410167-01) - Jonsered Walk-Behind Mower (2009-09) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532406257

CONTROL.DR.EZ.FGD.SHORT.BK/RED

$

$

Not available

2

Jonsered 532413542

COVER, TOP DRIVE CONTROL

$

$

Not available

3

Jonsered 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

4

Jonsered 532188281

No Description Available

$

$

Not available

5

Jonsered 532413541

COVER BOTTOM DRIVE CNTRL BLACK

$

$

Not available

6

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

7

Jonsered 532400723

BRACKET.DRIVE.CONTROL.MOUNT

$

$

Not available

9

Jonsered 532406259

CABLE ASSEMBLY, DRIVE

$51.99

$

In Stock, Qty 6

0

10

Jonsered 532193466

No Description Available

$

$

Not available

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$31.99

$

In Stock, only 4 left!

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 12

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 11

0

14

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

15

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 18

0

16

Jonsered 532067725

WASHER FLUT

$6.99

$

In Stock, only 3 left!

0

17

Jonsered 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 16

0

18

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

25

Jonsered 532411663

BELT KEEPER
(Superseded to 532431711)

$

$

Not available

26

Jonsered 532163409

SCREW

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, Qty 7

0

28

Jonsered 532181468

No Description Available

$

$

Not available

29

Jonsered 532194149

BELT.DRIVE.FG

$22.99

$

In Stock, only 2 left!

0

32

Jonsered 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 2 left!

0

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 16

0

35

Jonsered 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

$

$

Not available

36

Jonsered 532404833

TRANSMISSION.21.FGD.HT.VST

$

$

Not available

38

Jonsered 873800400

LOCKNUT
(Superseded to 539976978)

$

$

Not available

40

Jonsered 532406558

SPRING

$9.49

$

In Stock, only 3 left!

0

41

Jonsered 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

$

$

Not available

54

Jonsered 532401905

GBAG.34710010.BLACK.GE
(Superseded to 580953406)

$62.99

$

In Stock, only 1 left!

0

55

Jonsered 532193458

No Description Available

$

$

Not available

57

Jonsered 532411950

FRAME.GBAG.21.FWGD

$

$

Not available
