LM 2153 CMD (954130220) - Jonsered Walk-Behind Mower (2004-01) GEAR CASE Parts Diagram

Walk-Behind Mower

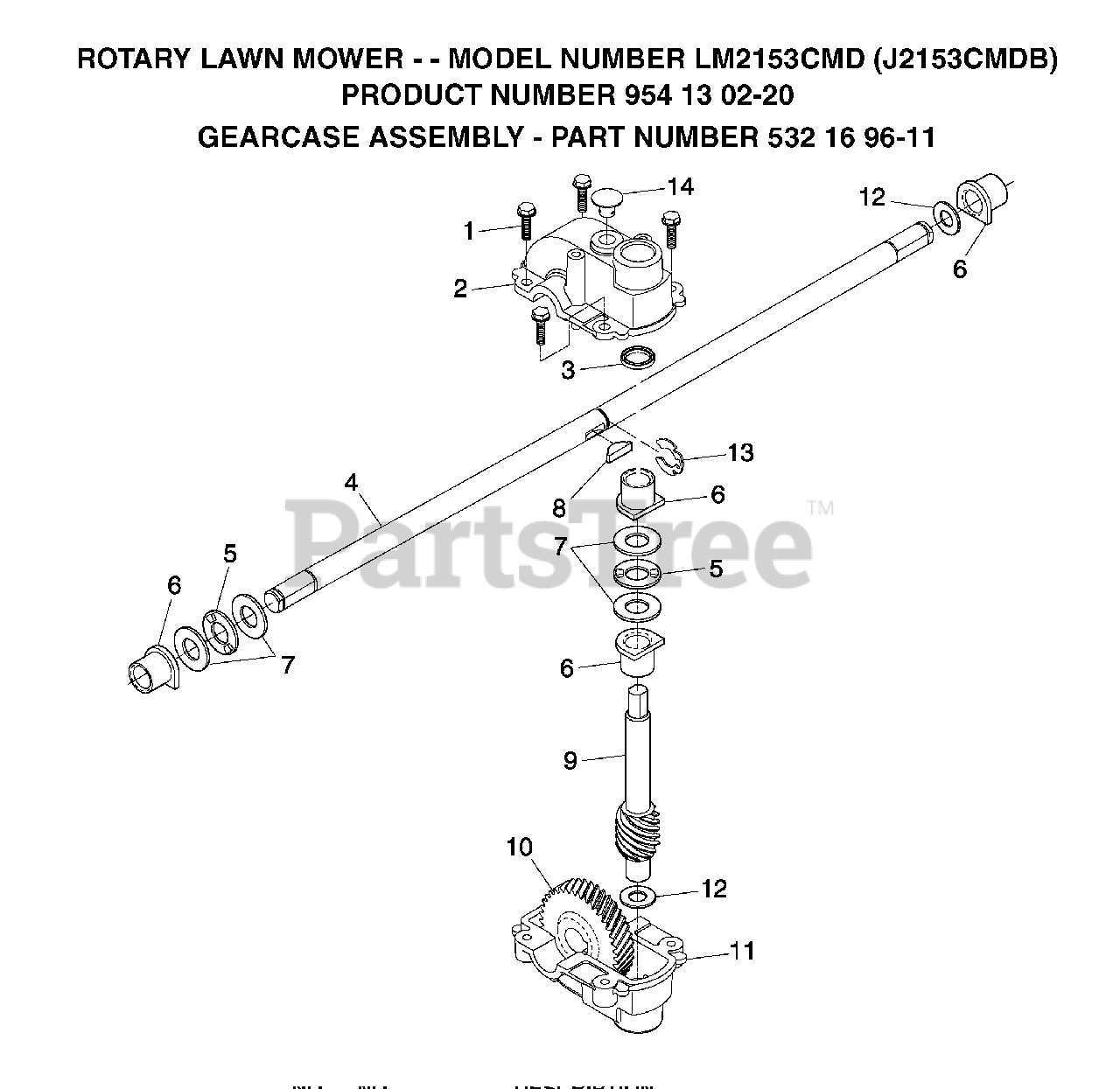

GEAR CASE Parts Diagram

  • Title

1

Jonsered 817541011

SCREW

$

$

Not available

2

Jonsered 532160672

GEAR CASE, UPPER

$

$

Not available

3

Jonsered 532057072

SEAL

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532169611

TRANSMISSION ASM. (WALK)
(Superseded to 532188295)

$121.99

$

Usually ships in 3-10 days

0

5

Jonsered 532160818

BEARING, NEEDLE, THRUST

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532077881

BEARING

$30.99

$

In Stock, only 1 left!

0

7

Jonsered 532160817

WASHER, THRUST

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 532850848

HI PRO KEY

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 532160678

SHAFT GEAR WORM

$14.99

$

Usually ships in 3-10 days

0

10

Jonsered 532160679

GEAR, HELICAL

$27.99

$

Usually ships in 3-10 days

0

11

Jonsered 532160673

GEAR CASE, LOWER
(Superseded to 532160676)

$14.99

$

Usually ships in 3-10 days

0

12

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

13

Jonsered 812000039

KLIP RING

$6.49

$

In Stock, Qty 13

0

14

Jonsered 532086447

PLUG PM

$

$

Not available

--

Jonsered 532750369

GREASE
(Superseded to 532750355)

$

$

Not available

--

Jonsered 532174535

No Description Available

$

$

Not available
