LM 2153 CMD (961410101-02) - Jonsered Walk-Behind Mower (2007-06) DRIVE Parts Diagram

Walk-Behind Mower

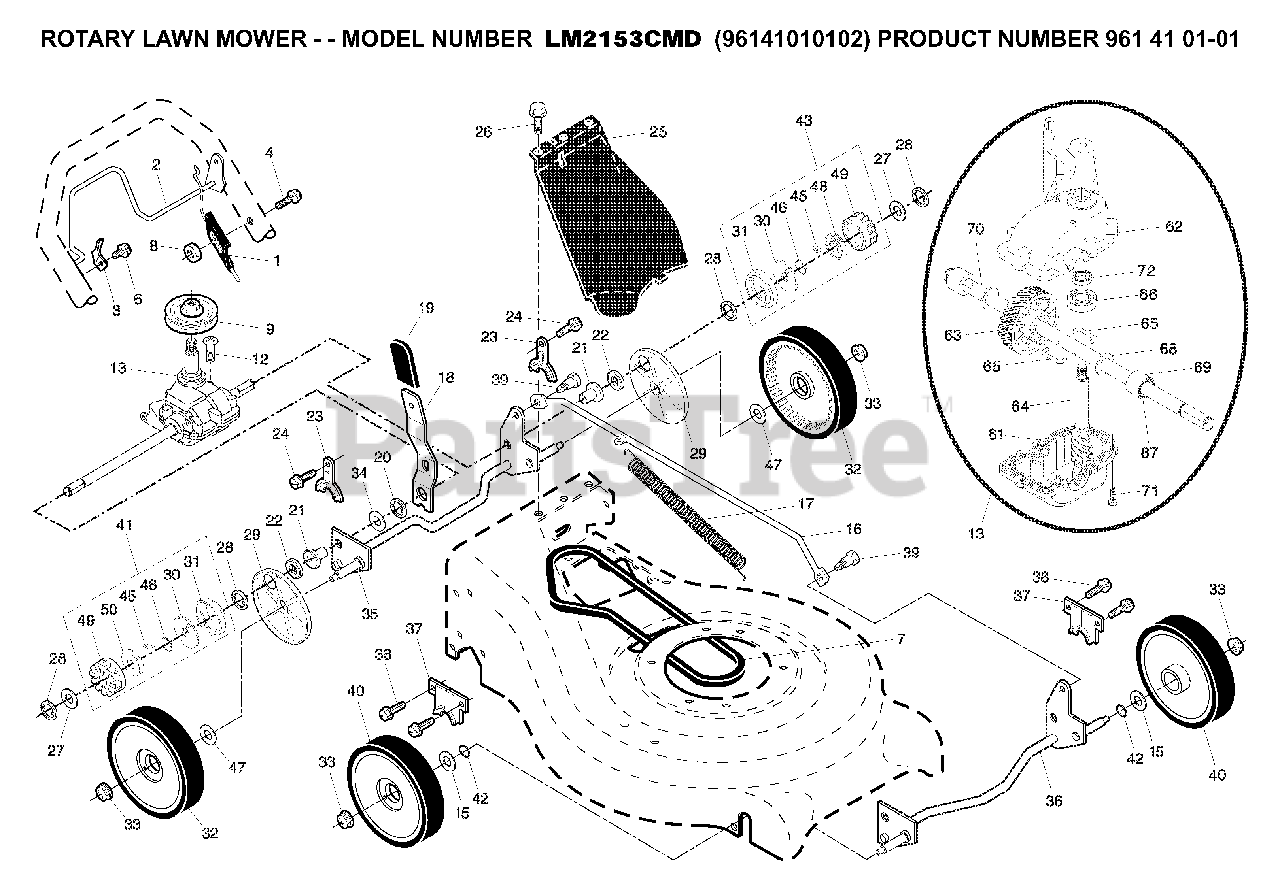

DRIVE Parts Diagram

  • Title

1

Jonsered 532409895

No Description Available

$

$

Not available

2

Jonsered 532161473

BAIL.CONT.DR.21.RWGD.BLACK

$15.99

$

In Stock, only 3 left!

0

3

Jonsered 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

7

Jonsered 532182212

V-BELT
(Superseded to 531300775)

$

$

Not available

8

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 8

0

9

Jonsered 532194128

PULLEY

$18.99

$

In Stock, Qty 16

0

12

Jonsered 532187653

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 532404839

TRANSMISSION.21.RWGD.AUTO.SP

$103.99

$

Usually ships in 3-10 days

0

15

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, only 4 left!

0

16

Jonsered 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

17

Jonsered 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 4 left!

0

18

Jonsered 532196162

SPRING.SELECTOR.SPT.21
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Jonsered 532190069

KNOB, SELECTOR SPRING

$7.49

$

Usually ships in 3-10 days

0

20

Jonsered 812000022

E-RING

$6.99

$

Usually ships in 3-10 days

0

21

Jonsered 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

22

Jonsered 532169911

BEARING, BALL

$

$

Not available

23

Jonsered 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532057808

SCREW

$

$

Not available

25

Jonsered 532402807

No Description Available
(Superseded to 583728301)

$10.99

$

Usually ships in 3-10 days

0

26

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

27

Jonsered 532052160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

29

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

30

Jonsered 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

31

Jonsered 532184172

SEAL.PINION

$7.49

$

In Stock, only 1 left!

0

32

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$25.99

$

In Stock, Qty 17

0

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Jonsered 532851226

WASHER

$4.99

$

In Stock, only 1 left!

0

35

Jonsered 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

$28.99

$

In Stock, only 3 left!

0

36

Jonsered 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Jonsered 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

38

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 13

0

39

Jonsered 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 4 left!

0

40

Jonsered 532402566

No Description Available

$

$

Not available

41

Jonsered 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

42

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 3 left!

0

43

Jonsered 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

45

Jonsered 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, Qty 10

0

46

Jonsered 532188291

SPRING, TORSION

$5.99

$

In Stock, Qty 13

0

47

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

48

Jonsered 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

49

Jonsered 532175103

GEAR, PINION

$

$

Not available

50

Jonsered 532175102

RETAINER, DRIVE, RH

$7.49

$

In Stock, only 1 left!

0

61

Jonsered 532187530

CASE, LOWER

$11.99

$

Usually ships in 3-10 days

0

62

Jonsered 532187531

CASE, UPPER

$24.99

$

Usually ships in 3-10 days

0

63

Jonsered 532187532

GEAR.24.TOOTH.WALK.MOWER

$14.99

$

Usually ships in 3-10 days

0

64

Jonsered 532187533

SHAFT INPUT

$30.99

$

Usually ships in 3-10 days

0

65

Jonsered 532183505

WIRE, FORMED

$4.99

$

Usually ships in 3-10 days

0

66

Jonsered 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

67

Jonsered 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

68

Jonsered 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

69

Jonsered 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

70

Jonsered 532191249

SHAFT.OUTPUT.RGD.VS/EZ
(Superseded to 532188645)

$121.99

$

Usually ships in 3-10 days

0

71

Jonsered 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

72

Jonsered 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0
