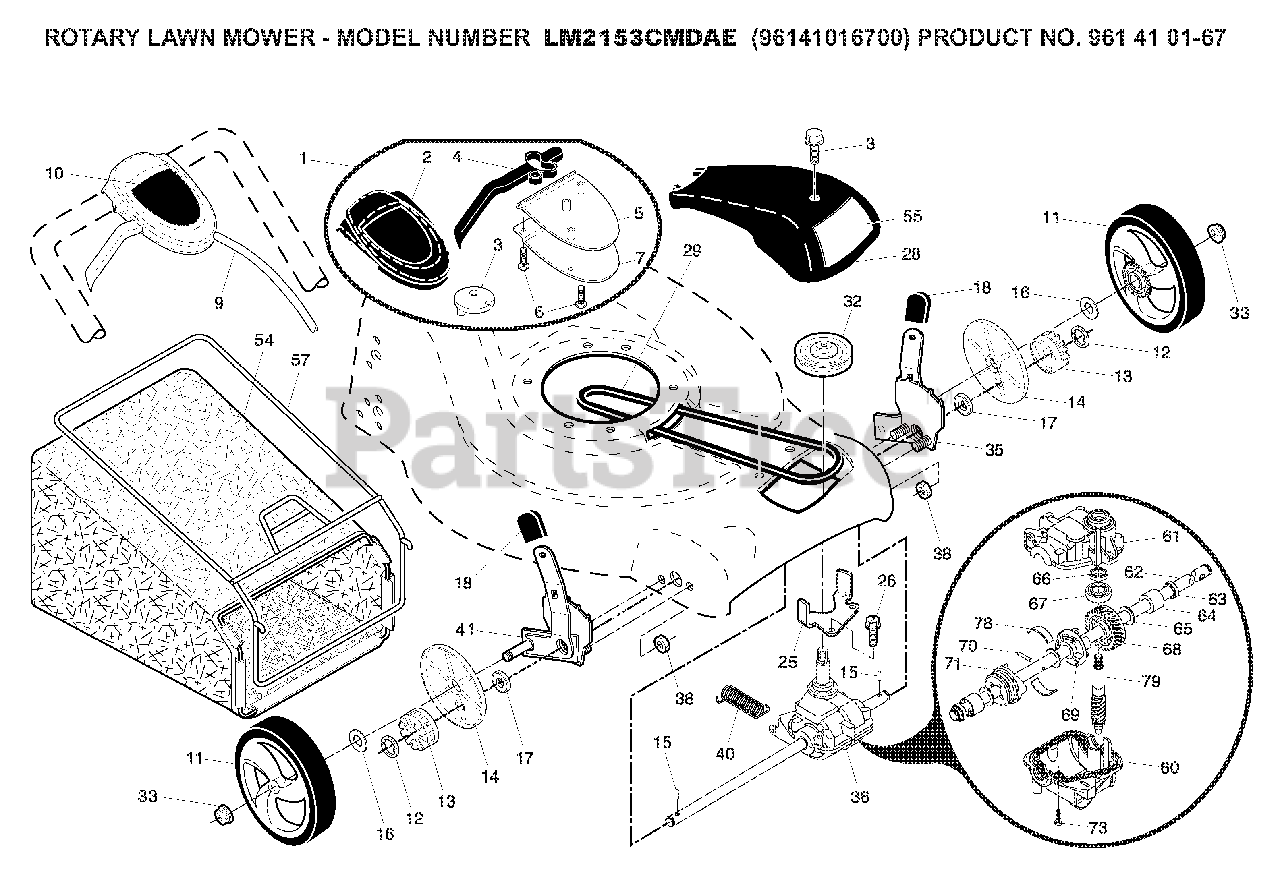

LM 2153 CMDAE (961410167-00) - Jonsered Walk-Behind Mower (2008-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532406257

CONTROL.DR.EZ.FGD.SHORT.BK/RED

$72.99

$

Usually ships in 3-10 days

0

2

Jonsered 532413542

COVER, TOP DRIVE CONTROL

$15.99

$

Usually ships in 3-10 days

0

3

Jonsered 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

4

Jonsered 532188281

No Description Available

$

$

Not available

5

Jonsered 532413541

COVER BOTTOM DRIVE CNTRL BLACK

$18.99

$

Usually ships in 3-10 days

0

6

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

7

Jonsered 532400723

BRACKET.DRIVE.CONTROL.MOUNT

$

$

Not available

9

Jonsered 532406259

CABLE ASSEMBLY, DRIVE

$53.99

$

In Stock, Qty 15

0

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$25.99

$

In Stock, Qty 17

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

14

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Jonsered 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532191039

BEARING
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Jonsered 532087877

KNOB PM

$6.49

$

In Stock, only 3 left!

0

25

Jonsered 532411663

BELT KEEPER
(Superseded to 532404843)

$

$

Not available

26

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 13

0

27

Jonsered 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

28

Jonsered 532181468

No Description Available

$

$

Not available

29

Jonsered 532194149

BELT.DRIVE.FG

$24.99

$

In Stock, only 2 left!

0

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

$44.99

$

Usually ships in 3-10 days

0

36

Jonsered 532404833

TRANSMISSION.21.FGD.HT.VST

$120.99

$

Usually ships in 3-10 days

0

38

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 532406558

SPRING

$8.99

$

In Stock, Qty 20+

0

41

Jonsered 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

$44.99

$

In Stock, only 3 left!

0

54

Jonsered 532401905

GBAG.34710010.BLACK.GE
(Superseded to 580953406)

$47.99

$

In Stock, only 2 left!

0

55

Jonsered 532193458

No Description Available

$

$

Not available

57

Jonsered 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

60

Jonsered 532410734

CASE.BOTTOM.

$15.99

$

Usually ships in 3-10 days

0

61

Jonsered 532410726

CASE.UPPER.00254(SERVICE)

$15.99

$

In Stock, only 1 left!

0

62

Jonsered 532410949

SHAFT OUTPUT

$48.99

$

Usually ships in 3-10 days

0

63

Jonsered 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

64

Jonsered 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

65

Jonsered 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

66

Jonsered 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

67

Jonsered 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

68

Jonsered 532410729

GEAR 28 TEETH

$9.99

$

Usually ships in 3-10 days

0

69

Jonsered 532410732

FIXED DOG CLUTCH

$2.99

$

Usually ships in 3-10 days

0

70

Jonsered 532410733

PIN.3.50.33733
(Superseded to 532412746)

$4.99

$

Usually ships in 3-10 days

0

71

Jonsered 532410730

MOVEABLE DOG CLUTCH

$6.49

$

Usually ships in 3-10 days

0

73

Jonsered 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

78

Jonsered 532410731

SPRING LEAF

$4.99

$

Usually ships in 3-10 days

0

79

Jonsered 532410727

SHAFT WORM

$24.99

$

Usually ships in 3-10 days

0
