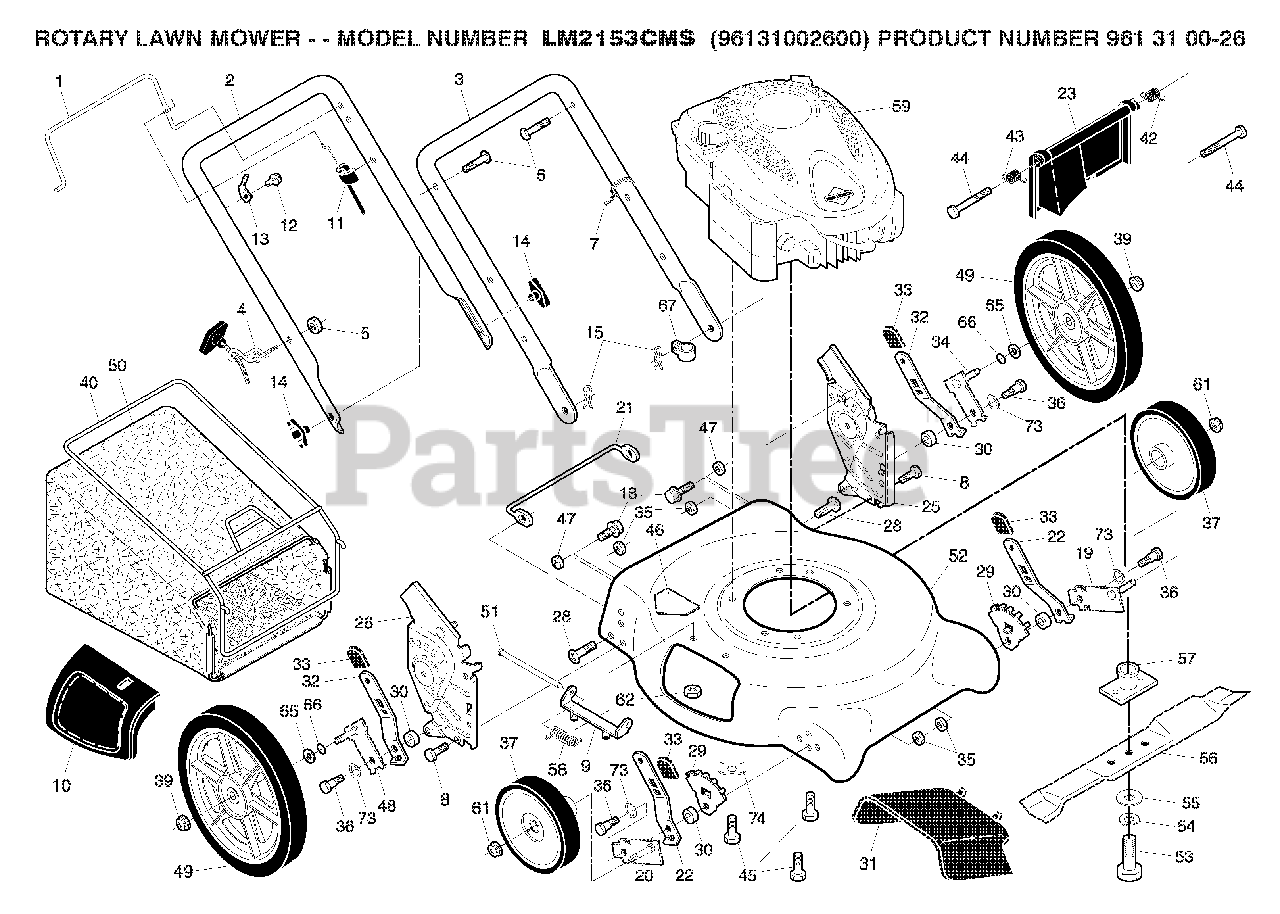

LM 2153 CMS (961310026-00) - Jonsered Walk-Behind Mower (2008-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532413969

No Description Available

$

$

Not available

2

Jonsered 532195547

HANDLE.UPPER
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

3

Jonsered 532174291

HANDLE.LOWER.BLACK

$

$

Not available

4

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

5

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

8

Jonsered 874780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Jonsered 532154132

HINGE BRACKET

$

$

Not available

10

Jonsered 532165754

MULCH DOOR

$9.99

$

Usually ships in 3-10 days

0

11

Jonsered 532183281

CABLE.ENGINE.ZONE.CONTROL

$12.99

$

In Stock, Qty 20+

0

12

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

13

Jonsered 532125203

No Description Available
(Superseded to 532086899)

$6.49

$

In Stock, Qty 8

0

14

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

18

Jonsered 817600406

SCREW

$6.49

$

In Stock, Qty 5

0

19

Jonsered 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

$

$

Not available

20

Jonsered 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

$7.49

$

In Stock, only 1 left!

0

21

Jonsered 532413543

No Description Available

$

$

Not available

22

Jonsered 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

23

Jonsered 532410603

REAR DOOR ASSY
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

25

Jonsered 532413960

BRACKET.ASM.HAND.HW.21.LT
(Superseded to 446258X479)

$14.99

$

Usually ships in 3-10 days

0

26

Jonsered 532413962

No Description Available
(Superseded to 580915704)

$22.99

$

Usually ships in 3-10 days

0

28

Jonsered 532054583

SCREW

$

$

Not available

29

Jonsered 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Jonsered 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 3 left!

0

31

Jonsered 532165760

CLIP ON DISCHARGE GUARD
(Superseded to 589482402)

$6.49

$

In Stock, Qty 20+

0

32

Jonsered 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

34

Jonsered 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

$5.99

$

In Stock, only 1 left!

0

35

Jonsered 532166785

LOCKNUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

36

Jonsered 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 15

0

37

Jonsered 532197025

No Description Available

$

$

Not available

39

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

40

Jonsered 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

42

Jonsered 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, only 1 left!

0

43

Jonsered 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 1 left!

0

44

Jonsered 532184193

BOLT

$

$

Not available

45

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

46

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

47

Jonsered 873751153

No Description Available

$

$

Not available

48

Jonsered 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

$

$

Not available

49

Jonsered 532403072

No Description Available

$

$

Not available

50

Jonsered 532402024

GBAG.
(Superseded to 532410666)

$80.99

$

In Stock, only 1 left!

0

51

Jonsered 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 12

0

52

Jonsered 532419089

No Description Available
(Superseded to 583373601)

$103.99

$

Usually ships in 3-10 days

0

53

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

55

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

56

Jonsered 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

57

Jonsered 532193707

ADAPTER.BLADE
(Superseded to 532418373)

$10.99

$

In Stock, Qty 20+

0

58

Jonsered 532152124

TORSION SPRING

$7.49

$

In Stock, Qty 12

0

61

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

65

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, only 4 left!

0

66

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 3 left!

0

67

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

73

Jonsered 532401630

WASHER FLAT

$3.99

$

Usually ships in 3-10 days

0

74

Jonsered 532125078

No Description Available

$

$

Not available

Jonsered 532182191

No Description Available

Note: NOT SHOWN

$

$

Not available

59

Jonsered 000000000

No Description Available

Note: B S 122T02-1099-B1 FOR SERVICE PART 1-800-233-3723

$

$

Not available
