LM 2155 MD (961210036-00) - Jonsered Walk-Behind Mower (2015-11) DRIVE Parts Diagram

Walk-Behind Mower

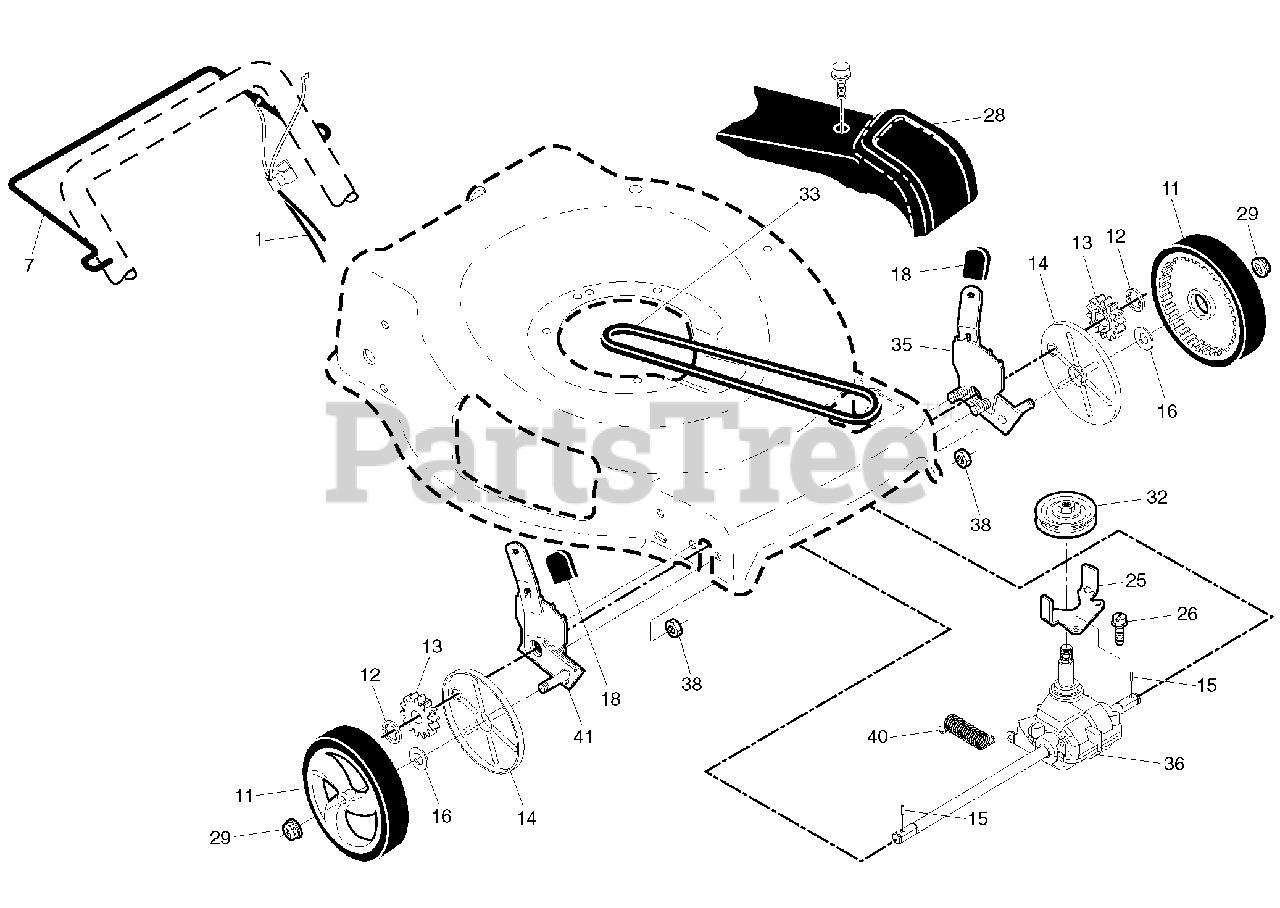

DRIVE Parts Diagram

  • Title

1

Jonsered 585040701

CABLE.DRIVE.VS/SS.22+FGD.MCCUL

$26.99

$

Usually ships in 3-10 days

0

7

Jonsered 585123102

BAIL.DRIVE.SS.CURVED.BLK.428

$17.99

$

Usually ships in 3-10 days

0

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$31.99

$

In Stock, only 4 left!

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 7

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 9

0

14

Jonsered 581840401

Inner Wheel Dust Cover

$6.99

$

In Stock, Qty 20+

0

15

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 17

0

16

Jonsered 532067725

WASHER FLUT

$6.99

$

In Stock, only 2 left!

0

18

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

25

Jonsered 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

26

Jonsered 532163409

SCREW

$3.49

$

Usually ships in 3-10 days

0

28

Jonsered 580289901

Drive Cover Assembly, 419930 Ce
(Superseded to 583405301)

Note: . 3

$17.99

$

In Stock, only 2 left!

0

29

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 18

0

32

Jonsered 586989701

PULLEY.DRIVEN.EZ/VARI (2 2MC)

$6.99

$

In Stock, only 2 left!

0

33

Jonsered 532196853

BELT.DRIVE.FGD.

$20.99

$

In Stock, Qty 20+

0

35

Jonsered 581497907

Adjuster Assembly Kit, LH Front

Note: LH. 2 18

$

$

Not available

36

Jonsered 532424741

No Description Available
(Superseded to 589600601)

$148.99

$

In Stock, only 3 left!

0

38

Jonsered 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.49

$

In Stock, Qty 20+

0

40

Jonsered 532406558

SPRING

$9.49

$

In Stock, only 2 left!

0

41

Jonsered 581497908

Adjuster Assembly Kit, RH Front

Note: RH. 2 18

$22.99

$

In Stock, Qty 20+

0
