LM 2156 CMDA (961410223-01) - Jonsered Walk-Behind Mower (2010-06) FRAME ENGINE Parts Diagram

Walk-Behind Mower

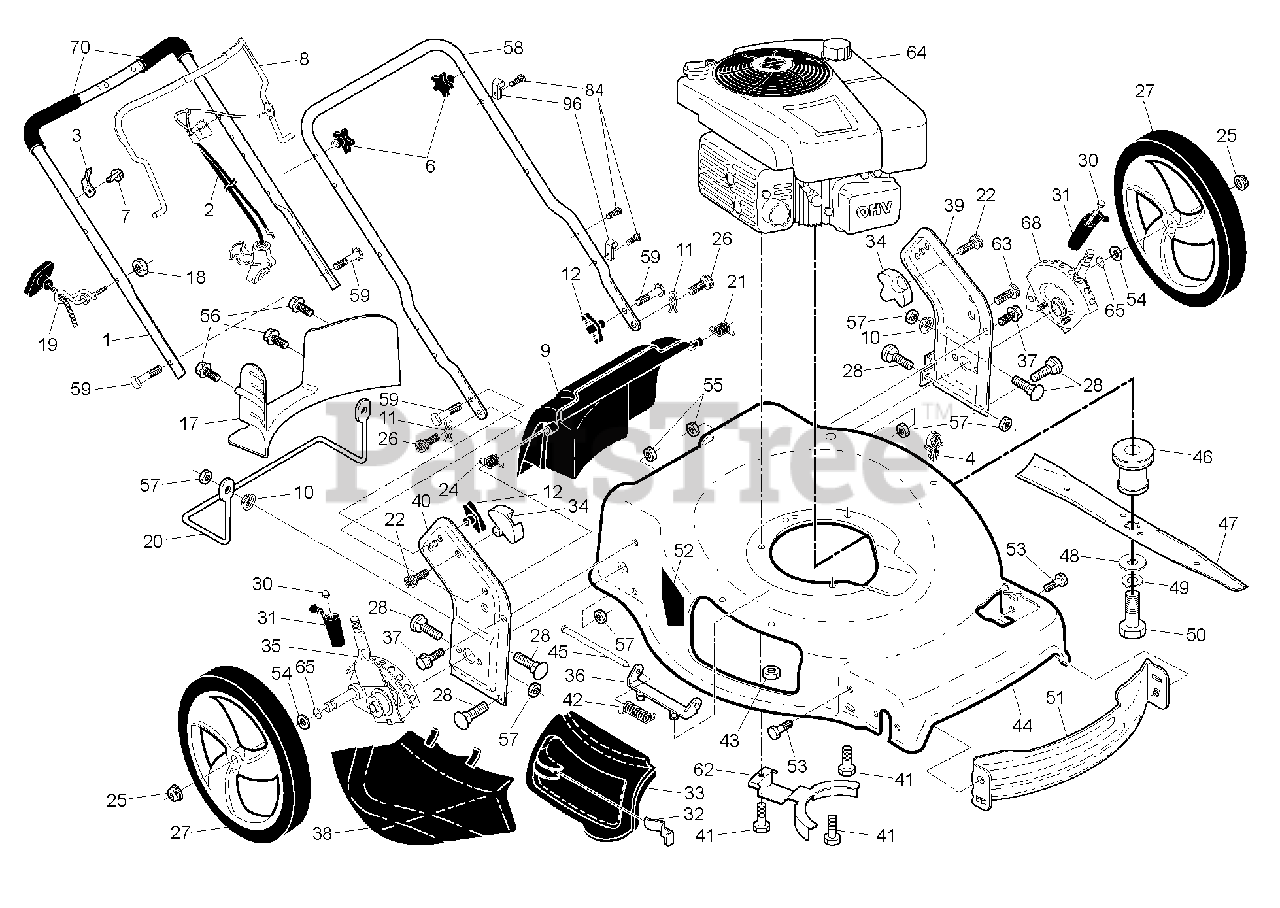

FRAME ENGINE Parts Diagram

  • Title

1

Jonsered 532184576

No Description Available
(Superseded to 583134501)

$59.99

$

Usually ships in 3-10 days

0

2

Jonsered 532429643

CABLE.ASM
(Superseded to 587326608)

$45.99

$

Usually ships in 3-10 days

0

3

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

Usually ships in 3-10 days

0

4

Jonsered 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

5

Jonsered 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

6

Jonsered 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 20+

0

7

Jonsered 532750634

SCREW

$3.49

$

In Stock, only 2 left!

0

8

Jonsered 532426505

No Description Available

$47.99

$

Usually ships in 3-10 days

0

9

Jonsered 532426300

No Description Available
(Superseded to 583429201)

$

$

Not available

10

Jonsered 532423063

No Description Available
(Superseded to 583400601)

$3.99

$

In Stock, only 1 left!

0

11

Jonsered 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$3.99

$

In Stock, only 3 left!

0

12

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.99

$

In Stock, Qty 20+

0

17

Jonsered 532427307

No Description Available

$

$

Not available

18

Jonsered 532132004

NUT
(Superseded to 539976978)

$

$

Not available

19

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

20

Jonsered 532422467

No Description Available
(Superseded to 583394001)

$

$

Not available

21

Jonsered 532419949

SPRING.LH.GRAY

$5.99

$

In Stock, Qty 20+

0

22

Jonsered 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

24

Jonsered 532419948

SPRING.RH.GRAY

$5.99

$

In Stock, Qty 20+

0

25

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 20+

0

26

Jonsered 532419945

SCREW,DOOR/HANDLE.PIVOT

$7.49

$

In Stock, Qty 20+

0

27

Jonsered 532432747

No Description Available

$

$

Not available

28

Jonsered 872250505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$3.99

$

In Stock, Qty 20+

0

31

Jonsered 532431893

No Description Available

$

$

Not available

32

Jonsered 532419944

No Description Available

$

$

Not available

33

Jonsered 532423356

No Description Available

$

$

Not available

34

Jonsered 532426125

No Description Available

$

$

Not available

35

Jonsered 532431131

No Description Available
(Superseded to 583466101)

$

$

Not available

36

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

37

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 20+

0

38

Jonsered 532426129

DEFLECTOR.CLIPPING.22.BLACK

$14.99

$

In Stock, Qty 20+

0

39

Jonsered 532430039

No Description Available
(Superseded to 581353703)

$28.99

$

Usually ships in 3-10 days

0

40

Jonsered 532430033

No Description Available
(Superseded to 581353603)

$29.99

$

Usually ships in 3-10 days

0

41

Jonsered 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

42

Jonsered 532193000

SPRING.TORSION

$8.49

$

In Stock, Qty 15

0

43

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 2 left!

0

44

Jonsered 532430672

No Description Available

$

$

Not available

45

Jonsered 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 7

0

46

Jonsered 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$20.99

$

In Stock, Qty 20+

0

47

Jonsered 532422706

No Description Available

$

$

Not available

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

51

Jonsered 532430599

No Description Available

$

$

Not available

52

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

53

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 8

0

54

Jonsered 532088348

WASHER PM

$3.99

$

In Stock, Qty 16

0

55

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 2 left!

0

56

Jonsered 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

57

Jonsered 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

58

Jonsered 532426072

No Description Available
(Superseded to 501263201)

$31.99

$

Usually ships in 3-10 days

0

59

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

62

Jonsered 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

63

Jonsered 532178848

SCREW

$3.99

$

In Stock, Qty 15

0

64

Jonsered TBD

No Description Available

Note: Engine Briggs Stratton Model Number 12S902-1368-EA (order parts from Engine manufacturer)

$

$

Not available

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

In Stock, Qty 20+

0

68

Jonsered 532431134

No Description Available
(Superseded to 583466301)

$

$

Not available

70

Jonsered 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

84

Jonsered 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

--

Jonsered 532430413

No Description Available

$

$

Not available

--

Jonsered 532430415

No Description Available

$

$

Not available

--

Jonsered 532430414

No Description Available

$

$

Not available

--

Jonsered 532430416

No Description Available

$

$

Not available
