LM-3022 SP - Echo Walk-Behind Lawn Mower (SN: 702LMS000001 - 702LMS999999) Grass Bag, Debris Shield Parts Diagram

Walk-Behind Lawn Mower

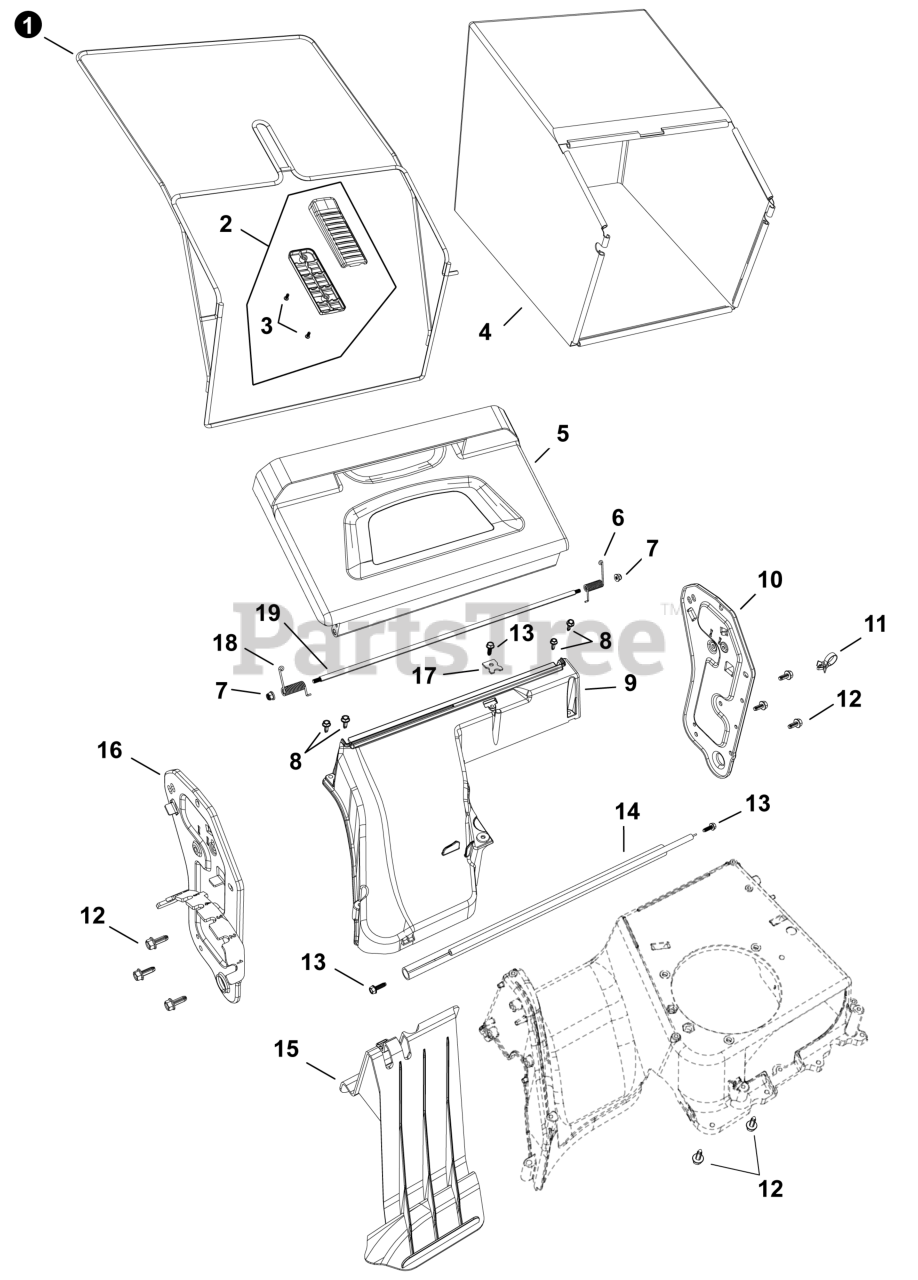

Grass Bag, Debris Shield Parts Diagram

  • Title

1

Echo YH486000040

FRAME, GRASS BAG

$44.99

$

Usually ships in 2-4 days

0

2

Echo YH466000940

HANDLE KIT, GRASS BAG

$4.99

$

Usually ships in 2-4 days

0

3

Echo YH427000080

SCREW

Note: +

$1.99

$

Usually ships in 2-4 days

0

4

Echo YH486000050

BAG, GRASS

$55.99

$

Usually ships in 2-4 days

0

5

Echo YH479003770

COVER, REAR DISCHARGE

$36.99

$

Usually ships in 2-4 days

0

6

Echo YH475000370

SPRING, DISCHARGE COVER - LEFT

$3.49

$

Usually ships in 2-4 days

0

7

Echo YH450000660

NUT

$

$

Currently unavailable

8

Echo YH427000120

SCREW

$1.99

$

Usually ships in 2-4 days

0

9

Echo YH479003740

COVER, CHUTE

$66.99

$

Usually ships in 2-4 days

0

10

Echo YH479003640

BRACKET, LEFT HANDLEBAR

$42.99

$

Usually ships in 2-4 days

0

11

Echo YH452001000

GUIDE

$4.99

$

Usually ships in 2-4 days

0

12

Echo YH427000110

SCREW

$3.49

$

Usually ships in 2-4 days

0

13

Echo YH427000100

SCREW

$1.99

$

Usually ships in 2-4 days

0

14

Echo YH479003730

SHIELD, DEBRIS

$18.99

$

Usually ships in 2-4 days

0

15

Echo YH479003830

PLUG, MULCH

$27.99

$

Usually ships in 2-4 days

0

16

Echo YH479003650

BRACKET, RIGHT HANDLEBAR

$45.99

$

Usually ships in 2-4 days

0

17

Echo YH479003750

PLATE, BRAKE CABLE

$2.99

$

Usually ships in 2-4 days

0

18

Echo YH475000360

SPRING, DISCHARGE COVER - RIGHT

$3.49

$

Usually ships in 2-4 days

0

19

Echo YH466001010

ROD, REAR DISCHARGE COVER

$31.99

$

Usually ships in 2-4 days

0
