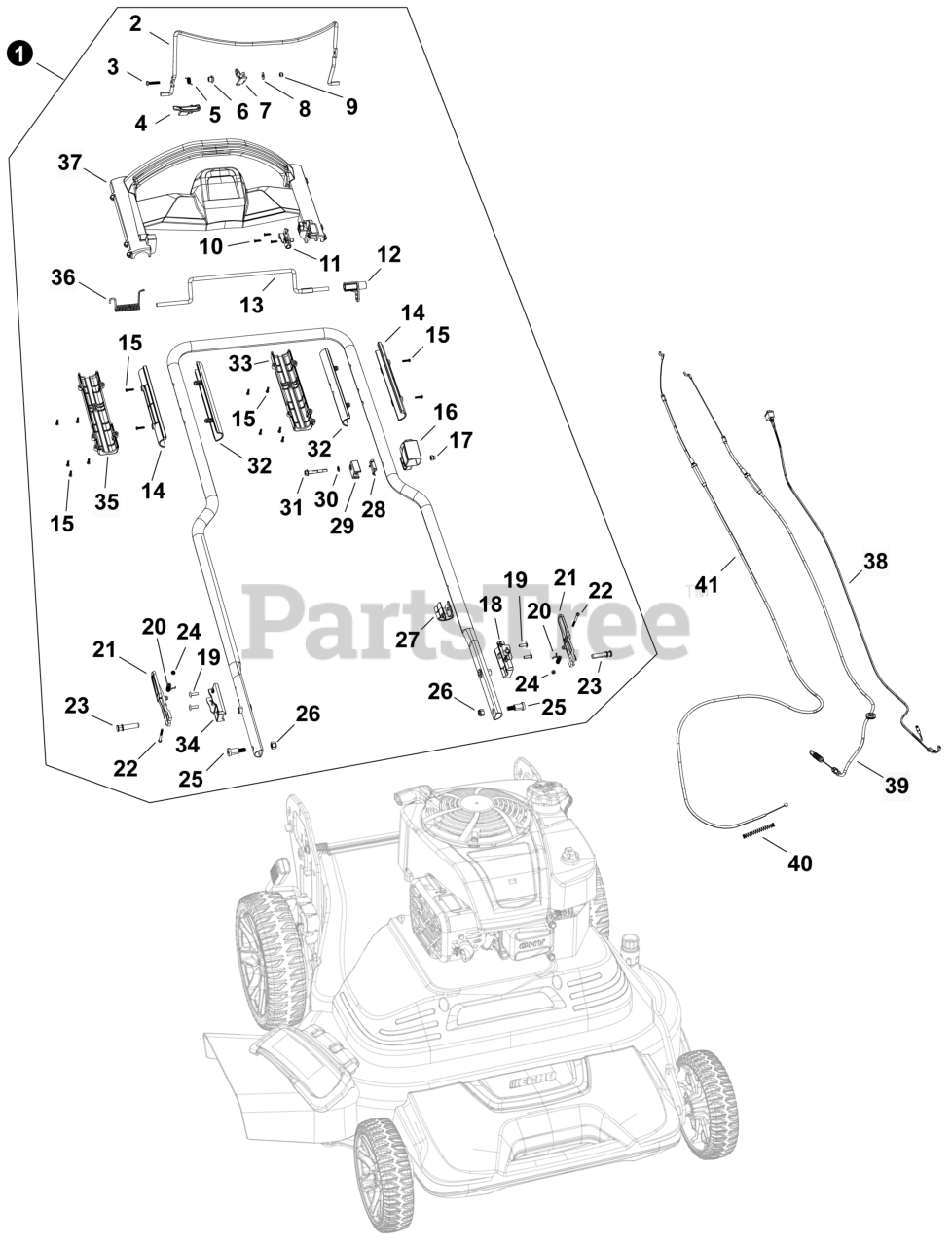

LM-3022 SP - Echo Walk-Behind Lawn Mower (SN: 702LMS000001 - 702LMS999999) Handlebar Assembly Parts Diagram

Walk-Behind Lawn Mower

Handlebar Assembly Parts Diagram

  • Title

1

Echo YH466001020

HANDLEBAR ASSY.

$198.99

$

Usually ships in 2-4 days

0

1

Echo YH466001020

HANDLEBAR ASSY.

$198.99

$

Usually ships in 2-4 days

0

2

Echo YH466001030

BAIL, BLADE BRAKE

Note: +

$16.99

$

Usually ships in 2-4 days

0

2

Echo YH466001030

BAIL, BLADE BRAKE

Note: +

$16.99

$

Usually ships in 2-4 days

0

3

Echo YH415001230

SCREW

Note: +

$1.99

$

In Stock, only 1 left!

0

3

Echo YH415001230

SCREW

Note: +

$1.99

$

In Stock, only 1 left!

0

4

Echo YH466001040

HANDLE, BAIL INTERLOCK

Note: +

$1.99

$

In Stock, only 1 left!

0

4

Echo YH466001040

HANDLE, BAIL INTERLOCK

Note: +

$1.99

$

In Stock, only 1 left!

0

5

Echo YH468002140

BUSHING, INTERLOCK

Note: +

$6.99

$

In Stock, only 1 left!

0

5

Echo YH468002140

BUSHING, INTERLOCK

Note: +

$6.99

$

In Stock, only 1 left!

0

6

Echo YH476000550

SPRING, INTERLOCK

Note: +

$1.99

$

In Stock, only 1 left!

0

6

Echo YH476000550

SPRING, INTERLOCK

Note: +

$1.99

$

In Stock, only 1 left!

0

7

Echo YH479003800

LEVER, INTERLOCK

Note: +

$7.99

$

In Stock, only 1 left!

0

7

Echo YH479003800

LEVER, INTERLOCK

Note: +

$7.99

$

In Stock, only 1 left!

0

8

Echo YH451000640

WASHER

Note: +

$2.99

$

In Stock, only 1 left!

0

8

Echo YH451000640

WASHER

Note: +

$2.99

$

In Stock, only 1 left!

0

9

Echo YH450000610

NUT

Note: +

$1.49

$

In Stock, only 1 left!

0

9

Echo YH450000610

NUT

Note: +

$1.49

$

In Stock, only 1 left!

0

10

Echo YH407000020

SCREW

Note: +

$1.49

$

Usually ships in 2-4 days

0

10

Echo YH407000020

SCREW

Note: +

$1.49

$

Usually ships in 2-4 days

0

11

Echo YH479003810

COVER, CABLE

Note: +

$1.99

$

Usually ships in 2-4 days

0

11

Echo YH479003810

COVER, CABLE

Note: +

$1.99

$

Usually ships in 2-4 days

0

12

Echo YH466000890

BLOCK, ROTATION

Note: +

$2.49

$

Usually ships in 2-4 days

0

12

Echo YH466000890

BLOCK, ROTATION

Note: +

$2.49

$

Usually ships in 2-4 days

0

13

Echo YH466000900

BAIL, DRIVE

Note: +

$14.99

$

In Stock, only 2 left!

0

13

Echo YH466000900

BAIL, DRIVE

Note: +

$14.99

$

In Stock, only 2 left!

0

14

Echo YH479003510

SLEEVE, LEFT HANDLEBAR

Note: +

$6.99

$

Usually ships in 2-4 days

0

14

Echo YH479003511

SLEEVE, LEFT HANDLEBAR

Note: +

$

$

Currently unavailable

15

Echo YH427000080

SCREW

Note: +

$1.99

$

Usually ships in 2-4 days

0

15

Echo YH427000080

SCREW

Note: +

$1.99

$

Usually ships in 2-4 days

0

16

Echo YH479003820

HOUSING, SWITCH

Note: +

$6.49

$

Usually ships in 2-4 days

0

16

Echo YH479003820

HOUSING, SWITCH

Note: +

$6.49

$

Usually ships in 2-4 days

0

17

Echo YH450000710

NUT

Note: +

$1.99

$

Usually ships in 2-4 days

0

17

Echo YH450000710

NUT

Note: +

$1.99

$

Usually ships in 2-4 days

0

18

Echo YH479003400

PLATE, LOWER LEFT HANDLEBAR

Note: +

$5.49

$

Usually ships in 2-4 days

0

18

Echo YH479003400

PLATE, LOWER LEFT HANDLEBAR

Note: +

$5.49

$

Usually ships in 2-4 days

0

19

Echo YH448000010

RIVET

Note: +

$2.49

$

Usually ships in 2-4 days

0

19

Echo YH448000010

RIVET

Note: +

$2.49

$

Usually ships in 2-4 days

0

20

Echo YH476000410

SPRING

Note: +

$1.99

$

Usually ships in 2-4 days

0

20

Echo YH476000410

SPRING

Note: +

$1.99

$

Usually ships in 2-4 days

0

21

Echo YH479003300

PLATE, HANDLEBAR ADJ.

Note: +

$21.99

$

Usually ships in 2-4 days

0

21

Echo YH479003300

PLATE, HANDLEBAR ADJ.

Note: +

$21.99

$

Usually ships in 2-4 days

0

22

Echo YH427000060

SCREW

Note: +

$1.49

$

Usually ships in 2-4 days

0

22

Echo YH427000060

SCREW

Note: +

$1.49

$

Usually ships in 2-4 days

0

23

Echo YH452000990

PIN

Note: +

$1.99

$

Usually ships in 2-4 days

0

23

Echo YH452000990

PIN

Note: +

$1.99

$

Usually ships in 2-4 days

0

24

Echo YH450000600

NUT

Note: +

$1.99

$

Usually ships in 2-4 days

0

24

Echo YH450000600

NUT

Note: +

$1.99

$

Usually ships in 2-4 days

0

25

Echo YH435000950

BOLT

Note: +

$1.49

$

Usually ships in 2-4 days

0

25

Echo YH435000950

BOLT

Note: +

$1.49

$

Usually ships in 2-4 days

0

26

Echo YH450000630

NUT, M8

Note: +

$1.49

$

Usually ships in 2-4 days

0

26

Echo YH450000630

NUT, M8

Note: +

$1.49

$

Usually ships in 2-4 days

0

27

Echo YH466000880

CLAMP, WIRE

Note: +

$2.49

$

Usually ships in 2-4 days

0

27

Echo YH466000880

CLAMP, WIRE

Note: +

$2.49

$

Usually ships in 2-4 days

0

28

Echo YH475000380

SPACER

Note: +

$0.99

$

Usually ships in 2-4 days

0

28

Echo YH475000380

SPACER

Note: +

$0.99

$

Usually ships in 2-4 days

0

29

Echo YH466000870

BLOCK, CABLE

Note: +

$2.49

$

Usually ships in 2-4 days

0

29

Echo YH466000870

BLOCK, CABLE

Note: +

$2.49

$

Usually ships in 2-4 days

0

30

Echo YH451000740

WASHER

Note: +

$0.99

$

Usually ships in 2-4 days

0

30

Echo YH451000740

WASHER

Note: +

$0.99

$

Usually ships in 2-4 days

0

31

Echo YH435001000

BOLT

Note: +

$1.99

$

Usually ships in 2-4 days

0

31

Echo YH435001000

BOLT

Note: +

$1.99

$

Usually ships in 2-4 days

0

32

Echo YH479003520

SLEEVE, RIGHT HANDLEBAR

Note: +

$6.99

$

Usually ships in 2-4 days

0

32

Echo YH479003520

SLEEVE, RIGHT HANDLEBAR

Note: +

$6.99

$

Usually ships in 2-4 days

0

33

Echo YH479003530

COVER, LEFT LOWER HANDLE

Note: +

$6.99

$

Usually ships in 2-4 days

0

33

Echo YH479003530

COVER, LEFT LOWER HANDLE

Note: +

$6.99

$

Usually ships in 2-4 days

0

34

Echo YH479003500

PLATE, LOWER RIGHT HANDLEBAR

Note: +

$5.49

$

Usually ships in 2-4 days

0

34

Echo YH479003500

PLATE, LOWER RIGHT HANDLEBAR

Note: +

$5.49

$

Usually ships in 2-4 days

0

35

Echo YH479003540

COVER, RIGHT LOWER HANDLE

Note: +

$6.99

$

Usually ships in 2-4 days

0

35

Echo YH479003540

COVER, RIGHT LOWER HANDLE

Note: +

$6.99

$

Usually ships in 2-4 days

0

36

Echo YH476000420

SPRING, DRIVE BAIL

Note: +

$5.49

$

Usually ships in 2-4 days

0

36

Echo YH476000420

SPRING, DRIVE BAIL

Note: +

$5.49

$

Usually ships in 2-4 days

0

37

Echo YH466000910

HANDLE, OPERATOR

Note: +

$33.99

$

Usually ships in 2-4 days

0

37

Echo YH466000910

HANDLE, OPERATOR

Note: +

$33.99

$

Usually ships in 2-4 days

0

38

Echo YH601000290

WIRE ASSY., ON/OFF SWITCH

$21.99

$

Usually ships in 2-4 days

0

38

Echo YH601000290

WIRE ASSY., ON/OFF SWITCH

$21.99

$

Usually ships in 2-4 days

0

39

Echo YH601000270

CABLE ASSY., DRIVE

$18.99

$

Usually ships in 2-4 days

0

39

Echo YH601000270

CABLE ASSY., DRIVE

$18.99

$

Usually ships in 2-4 days

0

40

Echo YH476000560

SPRING, CABLE RETURN

$1.99

$

Usually ships in 2-4 days

0

40

Echo YH476000560

SPRING, CABLE RETURN

$1.99

$

Usually ships in 2-4 days

0

41

Echo YH601000280

CABLE ASSY., BLADE DRIVE

$19.99

$

In Stock, only 1 left!

0

41

Echo YH601000280

CABLE ASSY., BLADE DRIVE

$19.99

$

In Stock, only 1 left!

0
