LMC-212 - Echo Walk-Behind Lawn Mower Deck, Blade, Discharge Chute Parts Diagram

Walk-Behind Lawn Mower

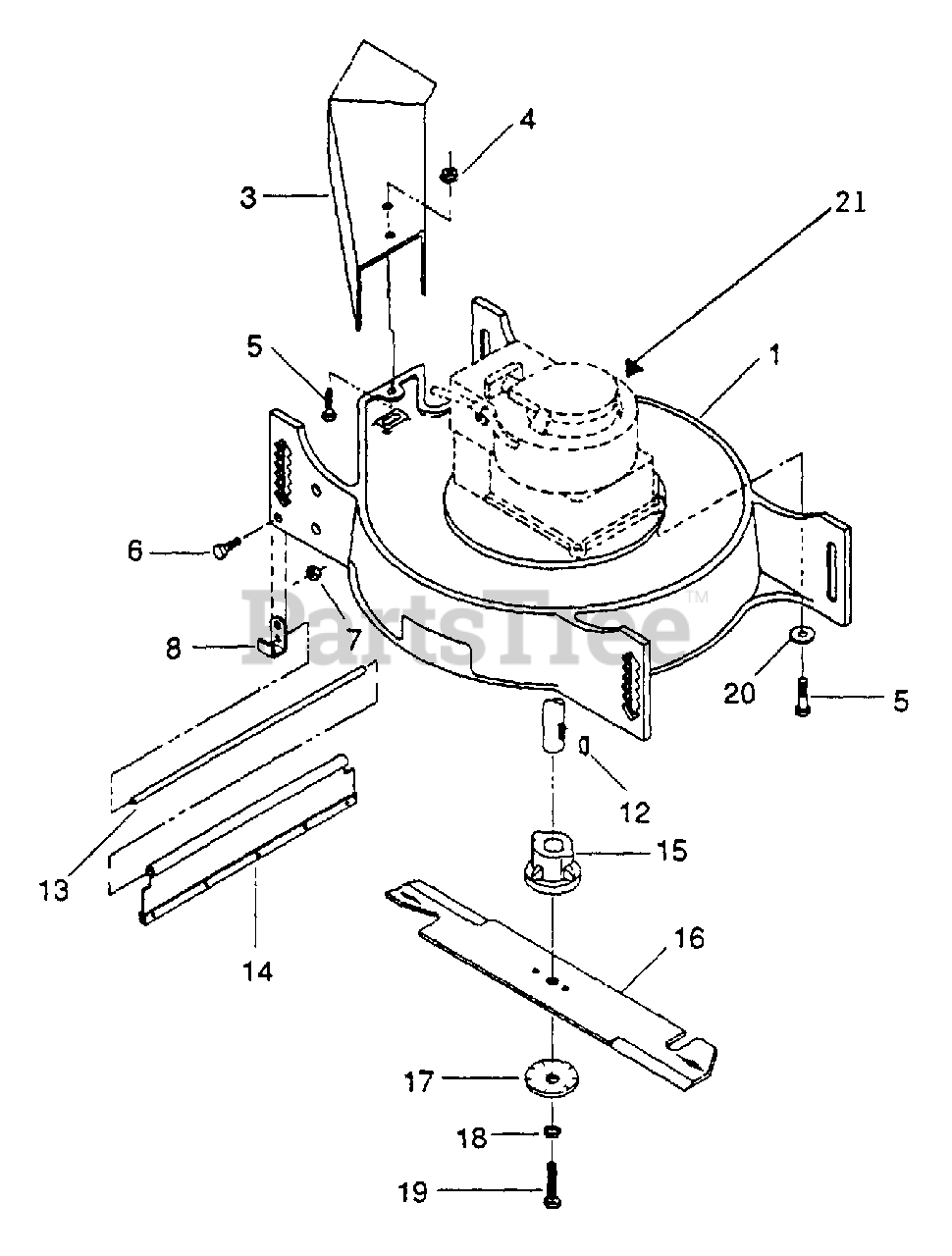

Deck, Blade, Discharge Chute Parts Diagram

  • Title

1

Echo 710213201

DECK
(Superseded to Discontinued)

$

$

Not available

3

Echo 710213159

GRASS CHUTE
(Superseded to Discontinued)

$

$

Not available

4

Echo 710809001

NUT 5/16
(Superseded to Discontinued)

$

$

Not available

5

Echo 710800271

SCREW HEX 5/16×3/4
(Superseded to Discontinued)

$

$

Not available

6

Echo 710800274

SCREW - 5/16×1-1/4" -- HEX CAP
(Superseded to Discontinued)

$

$

Not available

7

Echo 710804256

NUT, 5/16 NYLOC
(Superseded to Discontinued)

$

$

Not available

8

Echo 710213011

SAFETY SHIELD CLIP
(Superseded to Discontinued)

$

$

Not available

12

Echo 710807005

KEY, WOODRUFF - 6
(Superseded to Discontinued)

$

$

Not available

13

Echo 710213047

DRAG SHIELD ROD
(Superseded to Discontinued)

$

$

Not available

14

Echo 710212019

DRAG SHIELD ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 710212037

25 MM BLADE DRIVER
(Superseded to Discontinued)

$

$

Not available

16

Echo 710213007

BLADE - 21"

$

$

Currently unavailable

17

Echo 710213119

CUPPED WASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo 710805006

LOCKWASHER - 3/8"
(Superseded to Discontinued)

$

$

Not available

19

Echo 710800082

SCREW 3/8"×3/4
(Superseded to Discontinued)

$

$

Not available

20

Echo 710303334

5/16" DISC SPRING
(Superseded to Discontinued)

$

$

Not available

21

Echo 1162

ENGINE - M14V-B1ZO

$

$

Currently unavailable
