LMC-212 - Echo Walk-Behind Lawn Mower Handles, Throttle, Engine Brake Lever Parts Diagram

Walk-Behind Lawn Mower

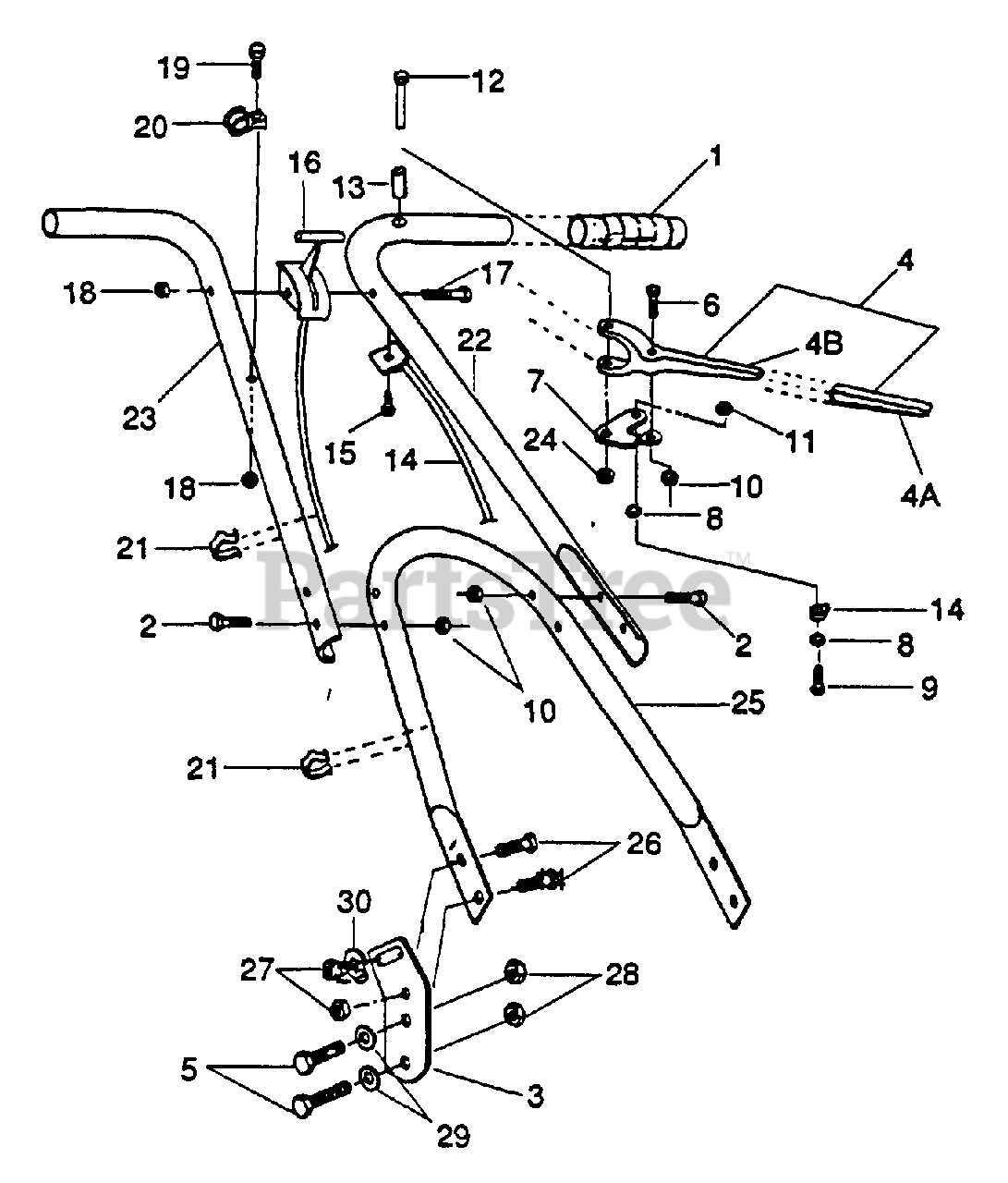

Handles, Throttle, Engine Brake Lever Parts Diagram

  • Title

1

Echo 710303097

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 710800275

SCREW - 5/16 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

3

Echo 710213018

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 710212038

DRIVE LEVER
(Superseded to Discontinued)

$

$

Not available

4A

Echo 710213204

GRIP
(Superseded to Discontinued)

$

$

Not available

4B

Echo 710212038

DRIVE LEVER
(Superseded to Discontinued)

$

$

Not available

5

Echo 710800274

SCREW - 5/16 X 1-1/4"
(Superseded to Discontinued)

$

$

Not available

6

Echo 710800273

SCREW - 5/16 X 1"
(Superseded to Discontinued)

$

$

Not available

7

Echo 710213012

CONTROL LEVER PLATE
(Superseded to Discontinued)

$

$

Not available

8

Echo 710213025

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 710809010

BOLT - 5/16 X 1/2"
(Superseded to Discontinued)

$

$

Not available

10

Echo 710804256

LOCKNUT - 5/16"
(Superseded to Discontinued)

$

$

Not available

11

Echo 710803011

NUT - 1/4"
(Superseded to Discontinued)

$

$

Not available

12

Echo 710806259

3/16 X 1-7/8" CLEVIS PIN
(Superseded to Discontinued)

$

$

Not available

13

Echo 710806340

5/16 X 1" ROLL PIN
(Superseded to Discontinued)

$

$

Not available

14

Echo 710213214

CABLE, CONTROL
(Superseded to Discontinued)

$

$

Not available

15

Echo 710802001

SCREW, CUTTING - 12
(Superseded to Discontinued)

$

$

Not available

16

Echo 710213207

THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

17

Echo 710800261

SCREW - 1/4 X 2-3/4"
(Superseded to Discontinued)

$

$

Not available

18

Echo 710804255

LOCKNUT - 1/4"
(Superseded to Discontinued)

$

$

Not available

19

Echo 710800259

SCREW - 1/4 X 2-1/4"
(Superseded to Discontinued)

$

$

Not available

20

Echo 710213026

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

21

Echo 710303088

CLIP
(Superseded to Discontinued)

$

$

Not available

22

Echo 710213015

HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available

23

Echo 710213016

HANDLE - RIGHT
(Superseded to Discontinued)

$

$

Not available

24

Echo 710803001

3/16" PUSH NUT
(Superseded to Discontinued)

$

$

Not available

25

Echo 710213017

HANDLE - LOWER
(Superseded to Discontinued)

$

$

Not available

26

Echo 710800292

SCREW - 3/8 X 1"
(Superseded to Discontinued)

$

$

Not available

27

Echo 710804257

LOCKNUT - 3/8"
(Superseded to Discontinued)

$

$

Not available

28

Echo 710809001

LOCKNUT - 5/16"
(Superseded to Discontinued)

$

$

Not available

29

Echo 710303016

BRAKE ADJ. WASHER
(Superseded to Discontinued)

$

$

Not available

30

Echo 710805260

WASHER - 3/8"
(Superseded to Discontinued)

$

$

Not available
