Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Head Lights Or Rear Light - 6 Volt - Sealed Beam - I Parts Diagram

Cub Lo-Boy Tractor

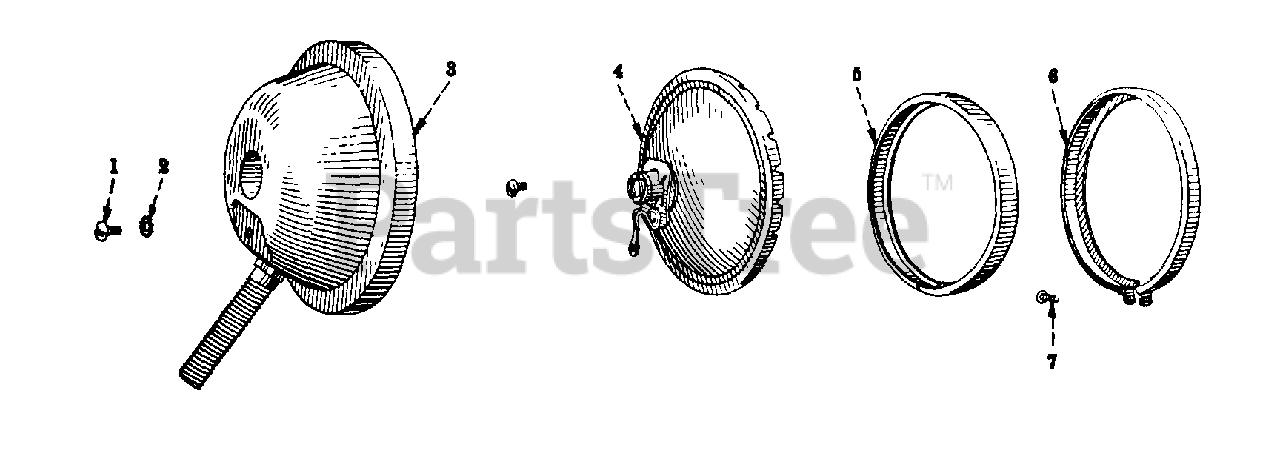

Head Lights Or Rear Light - 6 Volt - Sealed Beam - I Parts Diagram

  • Title

Cub Cadet IH-357884-R94

LIGHT ASSY, HEAD OR REAR

Note: 6 VOLT,SEALED BEAM, AS REQUIRED, ORDER LIGHT ASSY, 381181-R91, CABLE, 381182-R91 AND SPACER, 365503-R1

$

$

Currently unavailable

1

Cub Cadet IH-455347

SCREW, 8-32 NI-BRIGHT BRASS SLT-PAN-HD MACH

$

$

Currently unavailable

2

Cub Cadet IH-138530

WASHER NO. 8 C-Z INT-TOOTH LOCK

$

$

Currently unavailable

3

BODY, LIGHT

Note: NOT SERVICED SEPARATELY, ORDER LIGHT ASSY, 581181-R91, CABLE, 381182-R91 AND SPACER, 365503-R1.

$

$

Not available

4

Cub Cadet IH-358890-R92

UNIT W/SCREW 455347 AND WASHER, 135530.

Note: SEALED BEAM -6 VOLT-

$

$

Currently unavailable

5

Cub Cadet IH-358892-R91

GASKET

$

$

Currently unavailable

6

Cub Cadet IH-358891-R92

MOULDING

$

$

Currently unavailable

7

Cub Cadet IH-53526D

SCREW, MOULDING

$

$

Currently unavailable
