Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Starting and Lighting System - 6 Volt Parts Diagram

Cub Lo-Boy Tractor

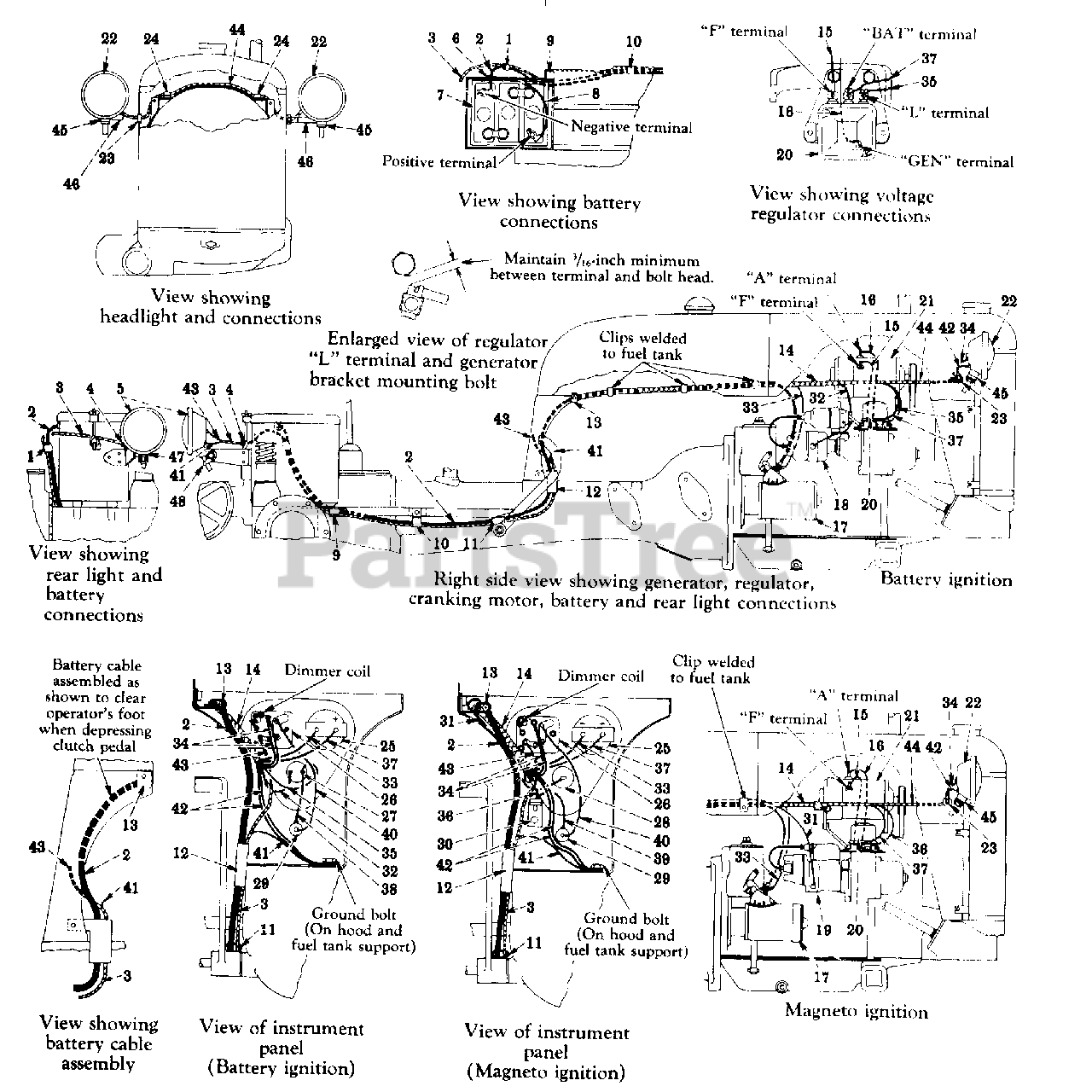

Starting and Lighting System - 6 Volt Parts Diagram

  • Title

1

Cub Cadet IH-363500-R1

STRAP, WRAPPING CABLE

Note: (WILL WORK FOR IH-351352-R1)

$

$

Currently unavailable

2

Cub Cadet IH-351956-R91

CABLE BATTERY TO CRANKING MOTOR

Note: (W/BOLT, IH-356062-R91)

$

$

Not available

Cub Cadet IH-356062-R91

BOLT ASSY, TERMINAL

$

$

Not available

3

Cub Cadet IH-358111-R92

CABLE, LIGHTING SWITCH TO REAR LIGHT

Note: (UNIT A - FOR SYSTEM WITHOUT GROUND CABLES)

$

$

Currently unavailable

3

Cub Cadet IH-363508-R91

HARNESS ASSY, LIGHTING SWITCH TO REAR LIGHT

Note: (UNITS A AND B - FOR SYSTEM WITH GROUND CABLES)

$

$

Currently unavailable

4

Cub Cadet IH-363501-R1

CLIP, REAR LIGHT MOUNTING BRACKET

Note: (UPPER BOLT)

$

$

Currently unavailable

5

LIGHT ASSY, REAR

Note: (REFER TO HEAD LIGHTS, REAR LIGHTS AND SUPPORTS)

$

$

Not available

6

Cub Cadet IH-52118D

GROMMET, BATTERY BOX

$

$

Currently unavailable

7

Cub Cadet IH-PR20H

BATTERY - 6 VOLT

$

$

Currently unavailable

8

Cub Cadet IH-69510-DA

CABLE, BATTERY TO GROUND

Note: (W/BOLT, IH-356062-R91)

$

$

Currently unavailable

Cub Cadet IH-356062-R91

BOLT ASSY, TERMINAL

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-3001)

$6.99

$

In Stock, Qty 11

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

9

Cub Cadet IH-363502-R1

CLIP, CABLE

Note: (UNDERNEATH PLATFORM - WILL WORK FOR IH-351350-R1)

$

$

Currently unavailable

10

Cub Cadet IH-363503-R1

CLIP, THIRD BOLT FROM REAR

Note: (UNDERNEATH PLATFORM - WILL WORK FOR IH-351353-R1)

$

$

Currently unavailable

11

Cub Cadet IH-363500-R1

STRAP, WRAPPING CABLE

Note: (BETWEEN PEDAL AND CLUTCH HOUSING - WILL WORK FOR IH-351352-R1)

$

$

Currently unavailable

12

Cub Cadet IH-363504-R1

CLIP, INSIDE RIGHT SIDE FUEL TANK SUPPORT

Note: (REPLACES IH-351929-R1)

$

$

Currently unavailable

Cub Cadet IH-103088

NUT, 10-32 HEX
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-100763

SCREW, 10-32 X 3/8 SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

13

Cub Cadet IH-363505-R1

CLIP W/NUT, CABLE HARNESS

Note: (RH SIDE - ON INSIDE EDGE OF HOOD SUPPORT)

$

$

Currently unavailable

14

Cub Cadet IH-351325-R91

HARNESS ASSY, CABLE

Note: (HAS FOUR CABLES - UNIT A - TRACTORS WITH GENERATOR RELAY)

$

$

Currently unavailable

Cub Cadet IH-354252-R92

HARNESS ASSY, CABLE

Note: (HAS SEVEN CABLES - UNIT A - FOR SYSTEM WITHOUT GROUND CABLES - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Not available

Cub Cadet IH-363507-R91

HARNESS ASSY, CABLE

Note: (HAS EIGHT CABLES - UNITS A AND B - FOR SYSTEM WITH GROUND CABLES - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Currently unavailable

15

Cub Cadet IH-358113-R92

CABLE, GENERATOR

Note: (-F- TERMINAL TO REGULATOR -F- TERMINAL - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Currently unavailable

16

Cub Cadet IH-358112-R92

CABLE GENERATOR

Note: (-A- TERMINAL TO REGULATOR -GEN- TERMINAL - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Currently unavailable

17

Cub Cadet IH-1109611

MOTOR ASSY CRANKING

Note: (FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR)

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW 3/8-16 X 1 HEX HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER 3/8 MED LOCK

$

$

Currently unavailable

18

BATTERY IGNITION

Note: (REFER TO ENGINE GROUP)

$

$

Not available

19

MAGNETO ASSY

Note: (REFER TO ENGINE GROUP)

$

$

Not available

20

Cub Cadet IH-121578-C1

REGULATOR ASSY VOLTAGE
(Superseded to IH-121578-C2)

$196.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179792

SCREW 1/4-20 X 9/16 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

21

GENERATOR ASSY

Note: (REFER TO GENERATOR AND CONNECTIONS)

$

$

Not available

22

LIGHT ASSY HEAD

Note: (REFER TO HEAD LIGHTS, REAR LIGHTS AND SUPPORTS)

$

$

Not available

23

Cub Cadet IH-120302

GROMMET RUBBER NO. 6

Note: (IN HOOD)

$

$

Currently unavailable

24

Cub Cadet IH-352107-R91

CLIP W/NUT, HEAD LIGHT CABLE

Note: (UNIT A - CUB TRACTORS W/SERIAL NO. 44550 AND ABOVE - FOR SYSTEM WITHOUT GROUND CABLES)

$

$

Currently unavailable

Cub Cadet IH-363506-R91

CLIP W/NUT, HEAD LIGHT CABLE

Note: (UNITS A AND B - FOR SYSTEM WITH GROUND CABLE)

$

$

Currently unavailable

Cub Cadet IH-113954

SCREW, 1/4-20 x 3/8 SET-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

24

Cub Cadet IH-350384-R1

CLIP, CABLE

Note: (FOR UNIT A - CUB TRACTORS W/SERIAL NO. 44549 AND BELOW)

$

$

Currently unavailable

Cub Cadet IH-103101

NUT, 10-32 SQ

$

$

Currently unavailable

Cub Cadet IH-100763

SCREW, 10-32 X 3/8 SLT HD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 REG LOCK

$

$

Currently unavailable

25

Cub Cadet IH-69926-C1

AMMETER ASSY

Note: (UNIT A - REPLACES IH-42363-DC AND IH-354473-R91)

$

$

Currently unavailable

Cub Cadet IH-378424-R91

INDICATOR ASSY CHARGE
(Superseded to 925-3141)

Note: (REPLACES IH-360053-R92; TRACTORS WITH VOLTAGE REGULATOR)

$58.99

$

In Stock, only 4 left!

0

26

Cub Cadet IH-1994019-R91

SWITCH ASSY, LIGHTING

Note: (UNIT A - TRACTORS WITH GENERATOR RELAY)

$

$

Currently unavailable

Cub Cadet IH-371464-R91

SWITCH ASSY, LIGHTING

Note: (UNITS A AND B - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Not available

27

Cub Cadet IH-62801-DC

SWITCH ASSY, BATTERY IGNITION
(Superseded to IH-62801-DCP)

$

$

Not available

28

Cub Cadet IH-54207-DB

SWITCH ASSY, MAGNETO IGNITION

$

$

Currently unavailable

29

Cub Cadet IH-354232-R91

HOUSING, FUSE W/KNOB, IH-356445-R91

$

$

Not available

Cub Cadet IH-432644

FUSE, CARTRIDGE TYPE SFE 20

Note: (TRACTORS WITH VOLTAGE REGULATOR)

$

$

Not available

30

Cub Cadet IH-352110-R91

BLOCK ASSY, MAGNETO IGNITION JUNCTION

Note: (TRACTORS WITH VOLTAGE REGULATOR) COMPOSED OF 1 BLOCK IH-42915D, 1 BRACKET IH-42916D, 1 NUT IH-110633, 1 SCREW IH-110500, 1 WASHER IH-106497

$

$

Currently unavailable

Cub Cadet IH-42915D

BLOCK

$

$

Currently unavailable

Cub Cadet IH-42916D

BRACKET

$

$

Currently unavailable

Cub Cadet IH-110633

NUT

$

$

Currently unavailable

Cub Cadet IH-110500

SCREW

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER

$

$

Currently unavailable

31

Cub Cadet IH-358110-R92

CABLE, MAGNETO IGNITION SWITCH TO MAGNETO

$

$

Currently unavailable

Cub Cadet IH-132100

SCREW, 10-32 X 5/16 CDP SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO.10 CDP MED LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

32

CABLE, BATTERY IGNITION SWITCH TO COIL - ORANGE

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

33

Cub Cadet IH-120692-HY

CABLE AMMETER TO SWITCH

Note: (UNIT A - TRACTORS WITH GENERATOR RELAY)

$

$

Currently unavailable

CABLE, CHARGE INDICATOR TO STARTING SWITCH -BROWN

Note: (ORDER HARNESS - REF. 14 - TRACTORS WITH VOLTAGE REGULATOR)

$

$

Not available

34

CABLE SWITCH TO HEAD LIGHT

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

35

CABLE, REGULATOR -L- TERMINAL TO SWITCH - LIGHT GREEN

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

36

CABLE REGULATOR -L- TERMINAL TO JUNCTION BLOCK

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

37

CABLE, REGULATOR -BAT- TERMINAL TO CHARGE INDICATOR - GRAY

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

38

CABLE, FUSE HOUSING TO IGNITION SWITCH

Note: (ORDER HOUSING - REF. 29)

$

$

Not available

Cub Cadet IH-358571-R91

CABLE, IGNITION SWITCH TO AMMETER OR CHARGE INDICATOR

Note: (FOR TRACTORS EQUIPPED W/BATTERY IGNITION CONVERSION PACKAGE)

$

$

Currently unavailable

39

CABLE FUSE HOUSING TO JUNCTION BLOCK

Note: (ORDER HOUSING - REF. 29)

$

$

Not available

40

CABLE, FUSE HOUSING TO LIGHTING SWITCH

Note: (ORDER HOUSING - REF. 29)

$

$

Not available

41

CABLE, REAR LIGHT TO GROUND - PINK

Note: (ORDER HARNESS - REF. 3)

$

$

Not available

42

CABLE HEAD LIGHT TO GROUND - PINK

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

43

CABLE, LIGHTING SWITCH TO REAR LIGHT - BLACK

Note: (ORDER HARNESS - REF. 3)

$

$

Not available

44

HARNESS, HEAD LIGHT CABLE

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

45

Cub Cadet IH-45569D

SPACER, HEAD LIGHT

$

$

Currently unavailable

46

Cub Cadet IH-351341-R1

POST, HEAD LIGHT

$

$

Currently unavailable

Cub Cadet IH-114507

NUT, 5/8-11 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

47

Cub Cadet IH-49069D

SPACER, REAR LIGHT

$

$

Currently unavailable

48

Cub Cadet IH-350920-R1

CLAMP, REAR LIGHT

$

$

Not available
