Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Cranking, Motor, Lever And Pull Rod Parts Diagram

Cub Lo-Boy Tractor

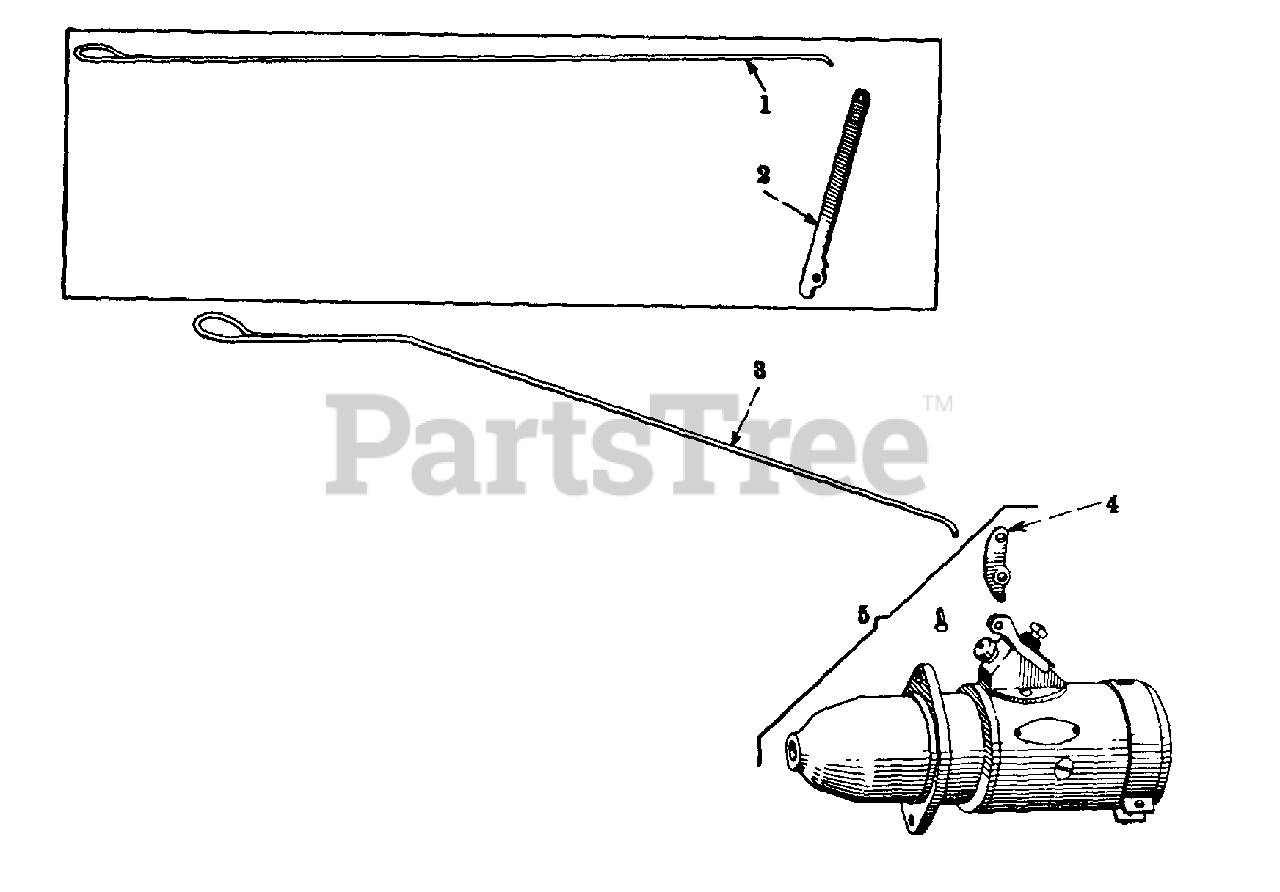

Cranking, Motor, Lever And Pull Rod Parts Diagram

  • Title

1

Cub Cadet IH-351348-R1

ROD, STARTING SWITCH PULL CUB

Note: TRACTORS W/SERIAL NO 128798 AND BELOW.

$

$

Currently unavailable

Cub Cadet IH-103361

PIN, 1/16 X 1/2 COT.

$

$

Currently unavailable

2

Cub Cadet IH-351347-R2

LEVER, STARTING SWITCH

Note: USED WITH SHEET METAL SWITCH CUB TRACTORS W/SERIAL NO 128798 AND BELOW.

$

$

Currently unavailable

3

Cub Cadet IH-356196-R1

ROD, STARTING SWITCH PULL

Note: CUB TRACTORS W/SERIAL NOS. 128799 TO 224400, CUB LO-BOY TRACTORS W/SERIAL NO 18700 AND BELOW.

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT.

$

$

Not available

4

Cub Cadet IH-1918322

LEVER STARTING SWITCH

Note: USED WITH DIE CAST SWITCH CUB TRACTORS W/SERIAL NOS. 128799 TO 224400, CUB LO-BOY TRACTORS W/SERIAL NO. 18700 & BELOW.

$

$

Currently unavailable

5

MOTOR ASSY, CRANKING

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR.

$

$

Not available

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 WED LOCK

$

$

Currently unavailable
