Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Generator and Connections (Cub S/N 221292 & Below) Parts Diagram

Cub Lo-Boy Tractor

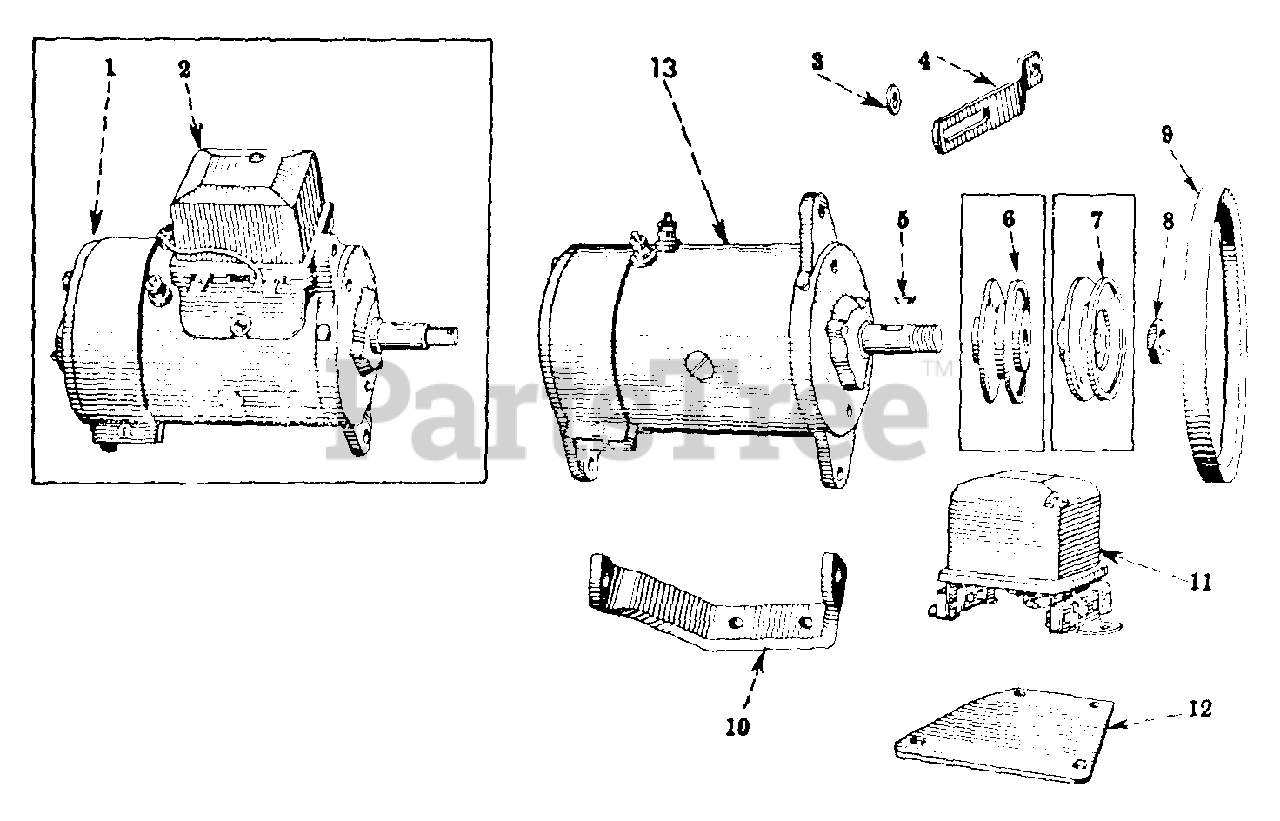

Generator and Connections (Cub S/N 221292 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-356936-R91

GENERATOR ASSY - 6 VOLT

Note: (FOR TRACTORS EQUIPPED WITH GENERATOR RELAY; ORDER UNIVERSAL GENERATOR PACKAGE IH-1947580 AND REGULATOR, IH-1118786; COMPOSED OF THE FOLLOWING 7 ITEMS

$

$

Currently unavailable

Cub Cadet IH-1911485

CABLE

$

$

Currently unavailable

Cub Cadet IH-1877569

CABLE

$

$

Currently unavailable

Cub Cadet IH-1101423

GENERATOR

$

$

Currently unavailable

Cub Cadet IH-1116766

RELAY

$

$

Not available

Cub Cadet IH-132900

SCREW

$

$

Currently unavailable

Cub Cadet IH-120391

WASHER
(Superseded to 736-0931)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet IH-138479

WASHER

$

$

Not available

Cub Cadet IH-1101423

GENERATOR ASSY - 6 VOLT

Note: (IH-356937-R91; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF GENERATOR; FOR TRACTORS WITH GENERATOR RELAY; ORDER UNIVERSAL GENERATOR PACKAGE, IH-194780 AND REGULATOR, IH-1118786)

$

$

Currently unavailable

Cub Cadet IH-103025

NUT 5/16-24 HEX.

$

$

Currently unavailable

Cub Cadet IH-102647

NUT 1/2-20 SLT HEX.

$

$

Currently unavailable

Cub Cadet IH-103374

PIN 3/32 X 1 COT.

$

$

Currently unavailable

Cub Cadet IH-181340

SCREW, 5/16-24 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-178373-R1

WASHER, 17/32 X 1 X .056 ZND
(Superseded to 936-0160)

$3.99

$

In Stock, Qty 17

0

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-1116766

RELAY ASSY.

Note: (GENERATOR IH-46412D; FOR TRACTORS EQUIPPED WITH GENERATOR RELAY)

$

$

Not available

Cub Cadet IH-132900

SCREW, 10-32 X 3/8 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138479

WASHER, NO. 10 C-Z EXT-TOOTH LOCK

$

$

Not available

Cub Cadet IH-120391

WASHER,
(Superseded to 736-0931)

Note: 7/32 X 1/2 X 18 GA C-Z

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet IH-557264-R1

WASHER, 11/32 X 3/4 X .105

$

$

Currently unavailable

4

Cub Cadet IH-351319-R1

BRACE, GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103340

WASHER, 11/32 X 11/16 X 16 GA

$

$

Currently unavailable

5

Cub Cadet IH-124545

KEY, 1/8 X 5/8 WOODRUFF NO. 5 ALY-STL

$

$

Not available

6

Cub Cadet IH-351320-R1

PULLEY, GENERATOR

Note: (CUB TRACTORS W/SERIAL NOS 165152 AND BELOW)

$

$

Currently unavailable

Cub Cadet IH-358212-R1

PULLEY, GENERATOR

Note: (CUB TRACTORS W/SERIAL NOS 164153 TO 196757, CUB LO-BOY TRACTORS W/SERIAL NO. 3377 & BELOW)

$

$

Currently unavailable

7

Cub Cadet IH-364907-R1

PULLEY, GENERATOR

Note: (CUB TRACTORS W/SERIAL NO. 196758 AND ABOVE, CUB LO-BOY TRACTORS W/SERIAL NO. 3378 & ABOVE)

$

$

Currently unavailable

8

Cub Cadet IH-1917746

NUT, ARMATURE SHAFT

Note: (USED WITH GENERATOR, IH-1100501)

$

$

Currently unavailable

Cub Cadet IH-1915172

NUT, ARMATURE SHAFT

Note: (USED WITH GENERATOR, IH-1100531)

$

$

Currently unavailable

Cub Cadet IH-804000

WASHER, ARMATURE SHAFT NUT LOCK

$

$

Currently unavailable

9

Cub Cadet IH-351321-R1

BELT, GENERATOR

Note: (CUB TRACTORS W/SERIAL NO. 165152 AND BELOW)

$

$

Not available

Cub Cadet IH-358213-R1

BELT, GENERATOR
(Superseded to IH-107671-C1)

Note: (CUB TRACTORS W/SERIAL NO. 165153 & ABOVE, ALL CUB LO-BOY TRACTORS)

$

$

Not available

10

Cub Cadet IH-351318-R1

BRACKET, GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179840

SCREW, 3/8-16 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

11

Cub Cadet IH-121578-C1

REGULATOR ASSY VOLTAGE - 6 VOLT
(Superseded to IH-121578-C2)

Note: (REPLACES IH-1119575)

$196.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-179792

SCREW, 1/4 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

12

Cub Cadet IH-354247-R1

BRACKET, VOLTAGE REGULATOR MOUNTING

$

$

Currently unavailable

13

Cub Cadet IH-1100501

GENERATOR ASSY - 6 VOLT

Note: (IH-354237-R91; HAS LONG 1-3/4 IN SHAFT; TRACTORS W/VOLTAGE REGULATOR - ORDER UNIVERSAL GENERATOR PACKAGE, IH-1947580; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-1100531

GENERATOR ASSY - 6 VOLT

Note: (IH-362657-R91; HAS SHORT 1-1/4 IN SHAFT; TRACTORS W/VOLTAGE REGULATOR - ORDER UNIVERSAL GENERATOR PACKAGE, IH-1947580; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF GENERATOR.)

$

$

Currently unavailable

Cub Cadet IH-103025

NUT, 5/16-24 HEX

$

$

Currently unavailable

Cub Cadet IH-181340

SCREW, 5/16-24 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-1911485

CABLE, GENERATOR

Note: (A- TERMINAL TO GROUND - USED WITH GENERATOR, IH-1101423; FOR TRACTORS EQUIPPED WITH GENERATOR RELAY)

$

$

Currently unavailable

Cub Cadet IH-1877569

CABLE, GENERATOR

Note: (F- TERMINAL TO RELAY -F- TERMINAL - USED WITH GENERATOR IH-1101423; FOR TRACTORS EQUIPPED WITH GENERATOR RELAY)

$

$

Currently unavailable
