Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Starting and Lighting System - 6 Volt Parts Diagram

Cub Lo-Boy Tractor

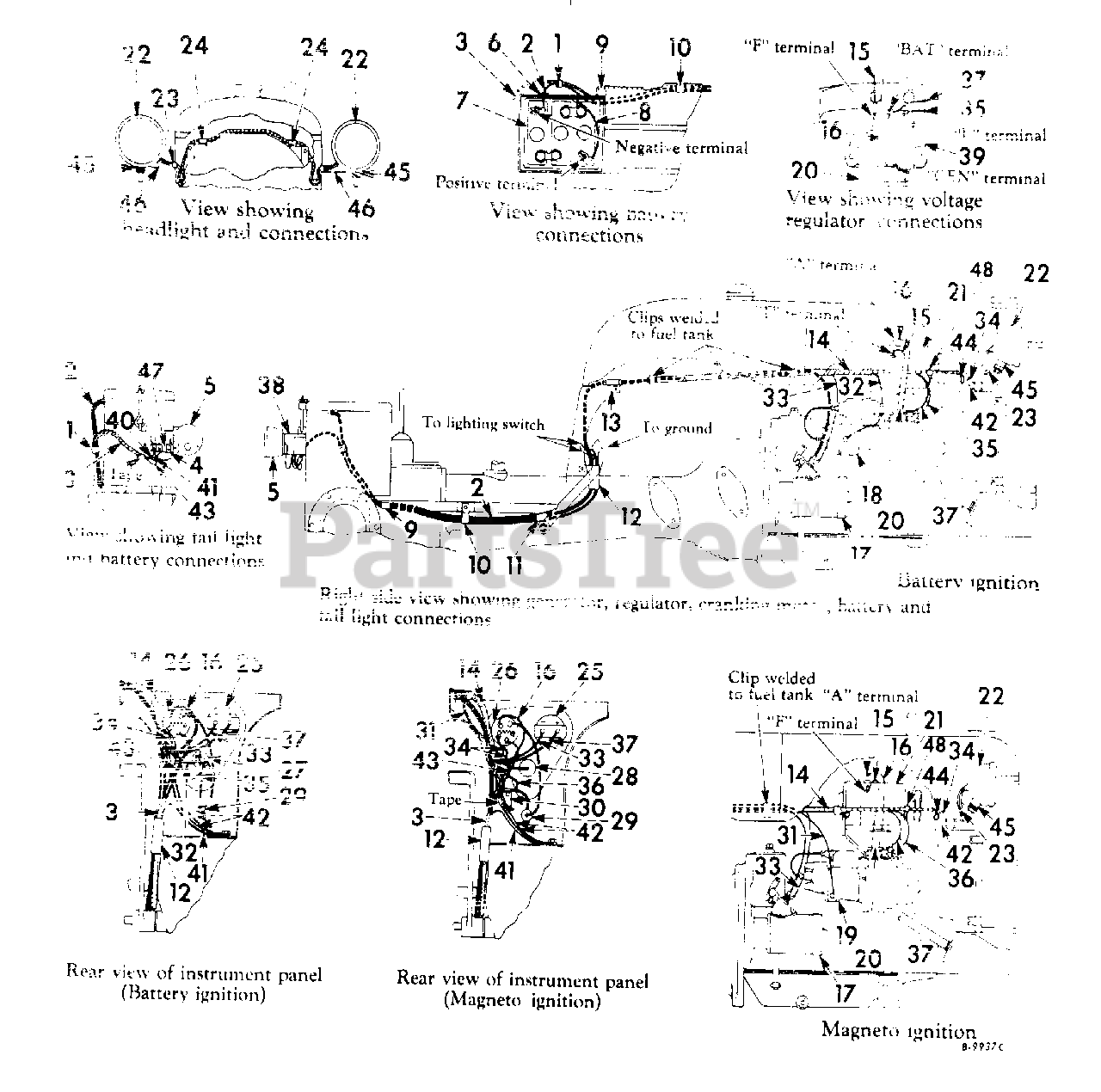

Starting and Lighting System - 6 Volt Parts Diagram

  • Title

1

Cub Cadet IH-363500-R1

STRAP, WRAPPING CABLE

$

$

Currently unavailable

2

Cub Cadet IH-351956-R91

CABLE, BATTERY TO CRANKING MOTOR

Note: W/BOLT, IH-356062-R91

$

$

Not available

Cub Cadet IH-356062-R91

BOLT ASSY. TERMINAL

$

$

Not available

3

Cub Cadet IH-371033-R91

HARNESS ASSY, REAR LIGHT CABLE

$

$

Currently unavailable

4

Cub Cadet IH-42916D

BRACKET, JUNCTION BLOCK MOUNTING

$

$

Currently unavailable

5

LIGHT ASSY, TAIL

Note: (REFER TO HEAD LIGHTS, TAIL LIGHT AND SUPPORTS)

$

$

Not available

6

Cub Cadet IH-52118D

GROMMET, BATTERY BOX

$

$

Currently unavailable

7

Cub Cadet IH-PR20H

BATTERY - 6 VOLT

$

$

Currently unavailable

8

Cub Cadet IH-69510-DA

CABLE, BATTERY TO GROUND

Note: W/BOLT, IH-356062-R91

$

$

Currently unavailable

Cub Cadet IH-356062-R91

BOLT ASSY, TERMINAL

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-3001)

$6.99

$

In Stock, Qty 11

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

9

Cub Cadet IH-362122-R1

CLIP, CABLE ANGLE - 1/2 IN. OPENING

Note: (UNDERNEATH PLATFORM)

$

$

Currently unavailable

Cub Cadet IH-371035-R1

CLIP, CABLE ANGLE - 7/8 IN. OPENING

Note: (UNDERNEATH PLATFORM)

$

$

Currently unavailable

10

Cub Cadet IH-371036-R1

CLIP, THIRD BOLT FROM REAR - 7/8 IN. OPENING

Note: (UNDERNEATH PLATFORM)

$

$

Not available

Cub Cadet IH-263513-R91

CLIP, THIRD BOLT FROM REAR - 1/2 IN. OPENING

Note: (UNDERNEATH PLATFORM)

$

$

Currently unavailable

11

Cub Cadet IH-363500-R1

STRAP, CABLE WRAPPING

Note: (BETWEEN PEDAL AND CLUTCH HOUSING)

$

$

Currently unavailable

12

Cub Cadet IH-363504-R1

CLIP, INSIDE RIGHT SIDE FUEL TANK SUPPORT

$

$

Currently unavailable

Cub Cadet IH-103088

NUT, 10-32 HEX
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-100763

SCREW, 10-32 X 3/8 SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

13

Cub Cadet IH-371034-R1

CLIP CABLE HARNESS

Note: (RH SIDE W/NUT ON INSIDE EDGE OF HOOD SUPPORT)

$

$

Currently unavailable

14

Cub Cadet IH-371032-R91

HARNESS ASSY, MAIN CABLE

$

$

Currently unavailable

15

Cub Cadet IH-358113-R92

CABLE, GENERATOR

Note: (F- TERMINAL TO REGULATOR -F- TERMINAL)

$

$

Currently unavailable

16

Cub Cadet IH-358112-R92

CABLE, GENERATOR

Note: (A- TERMINAL TO REGULATOR -GEN- TERMINAL)

$

$

Currently unavailable

17

Cub Cadet IH-1109611

MOTOR ASSY, CRANKING

Note: (FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR)

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

18

BATTERY IGNITION UNIT

Note: (REFER TO C-60 ENGINE GROUP 12)

$

$

Not available

19

MAGNETO ASSY

Note: (REFER TO C-60 ENGINE GROUP 12)

$

$

Not available

20

Cub Cadet IH-121578-C1

REGULATOR ASSY, VOLTAGE
(Superseded to IH-121578-C2)

$196.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-179792

SCREW, 1/4-20 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

21

GENERATOR ASSY

Note: (REFER TO GENERATOR AND CONNECTIONS)

$

$

Not available

22

LIGHT ASSY HEAD

Note: (REFER TO HEAD LIGHTS, TAIL LIGHT AND SUPPORTS)

$

$

Not available

23

Cub Cadet IH-120302

GROMMET RUBBER NO. 6

Note: (IN HOOD)

$

$

Currently unavailable

24

Cub Cadet IH-362121-R1

CLIP HEAD LIGHT CABLE HARNESS
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-113954

SCREW, 1/4-20 X 1/2 SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER 1/4 MED LOCK

$

$

Currently unavailable

25

Cub Cadet IH-378424-R91

INDICATOR ASSY CHARGE
(Superseded to 925-3141)

Note: (REPLACES IH-360053-R92)

$58.99

$

In Stock, only 4 left!

0

26

Cub Cadet IH-371464-R91

SWITCH ASSY LIGHTING

$

$

Not available

Cub Cadet IH-141706

WASHER 11/16 INT-TOOTH LOCK

$

$

Currently unavailable

27

Cub Cadet IH-62801-DC

SWITCH ASSY, BATTERY IGNITION
(Superseded to IH-62801-DCP)

$

$

Not available

28

Cub Cadet IH-54207-DB

SWITCH ASSY, MAGNETO IGNITION

$

$

Currently unavailable

29

Cub Cadet IH-354232-R91

HOUSING, FUSE W/KNOB IH-356445-R91

$

$

Not available

Cub Cadet IH-432644

FUSE, CARTRIDGE TYPE SFE 20

$

$

Not available

30

Cub Cadet IH-352110-R91

BLOCK ASSY, MAGNETO IGNITION JUNCTION

Note: (COMPOSED OF 1 BLOCK IH-42915D, 1 BRACKET IH-42916D, 1 NUT IH-110633, 1 SCREW IH-110500, 1 WASHER IH-106497)

$

$

Currently unavailable

Cub Cadet IH-42915D

BLOCK

$

$

Currently unavailable

Cub Cadet IH-42916D

BRACKET

$

$

Currently unavailable

Cub Cadet IH-110633

NUT

$

$

Currently unavailable

Cub Cadet IH-110500

SCREW

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER

$

$

Currently unavailable

31

Cub Cadet IH-358110-R92

CABLE, MAGNETO IGNITION SWITCH TO MAGNETO

$

$

Currently unavailable

Cub Cadet IH-132100

SCREW 10-32 X 5/16 CDP SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 CDP MED LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

32

CABLE, BATTERY IGNITION SWITCH TO COIL, ORANGE

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

33

CABLE, CHARGE INDICATOR TO STARTING SWITCH, BROWN

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

34

CABLE, SWITCH TO HEAD LIGHT

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

35

CABLE, REGULATOR -L- TERMINAL TO SWITCH, LIGHT GREEN

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

36

CABLE, REGULATOR -L- TERMINAL TO JUNCTION BLOCK

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

37

CABLE, REGULATOR -BAT- TERMINAL TO CHARGE INDICATOR, GRAY

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

38

Cub Cadet IH-371029-R1

BRACKET, TAIL LIGHT

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179793

SCREW, 1/4-20 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

39

Cub Cadet IH-354247-R1

BRACKET, VOLTAGE REGULATOR MOUNTING

$

$

Currently unavailable

40

CABLE, LIGHTING SWITCH TO JUNCTION

Note: (ORDER HARNESS - REF. 3)

$

$

Not available

41

CABLE, JUNCTION BLOCK TO GROUND, PINK

Note: (ORDER HARNESS - REF. 3)

$

$

Not available

42

CABLE, HEAD LIGHT TO GROUND, PINK

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

43

CABLE, TO LIGHTING SWITCH - RL - TERMINAL, RED

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

44

CABLE, HORN TO LINE CONNECTOR, DARK GREEN

Note: (ORDER HARNESS - REF. 14)

$

$

Not available

45

Cub Cadet IH-45569D

SPACER, HEAD LIGHT

$

$

Currently unavailable

46

Cub Cadet IH-351341-R1

POST, HEAD LIGHT

$

$

Currently unavailable

Cub Cadet IH-114507

NUT 5/8-11 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER 5/8 MED LOCK

$

$

Currently unavailable

47

Cub Cadet IH-371031-R91

BLOCK ASSY TAIL LIGHT JUNCTION

$

$

Currently unavailable

Cub Cadet IH-110633

NUT, NO. 10-24 HEX

$

$

Currently unavailable

Cub Cadet IH-110500

SCREW, 10-24 X 1/2 SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER NO. 10 MED LOCK

$

$

Currently unavailable

48

Cub Cadet IH-363660-R1

CLIP CABLE HARNESS

Note: (ON GENERATOR FRONT MOUNTING BOLT)

$

$

Currently unavailable
