Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Generator and Connections Cub S/N 221293-248124/Low-Boy S/N 16398 Parts Diagram

Cub Lo-Boy Tractor

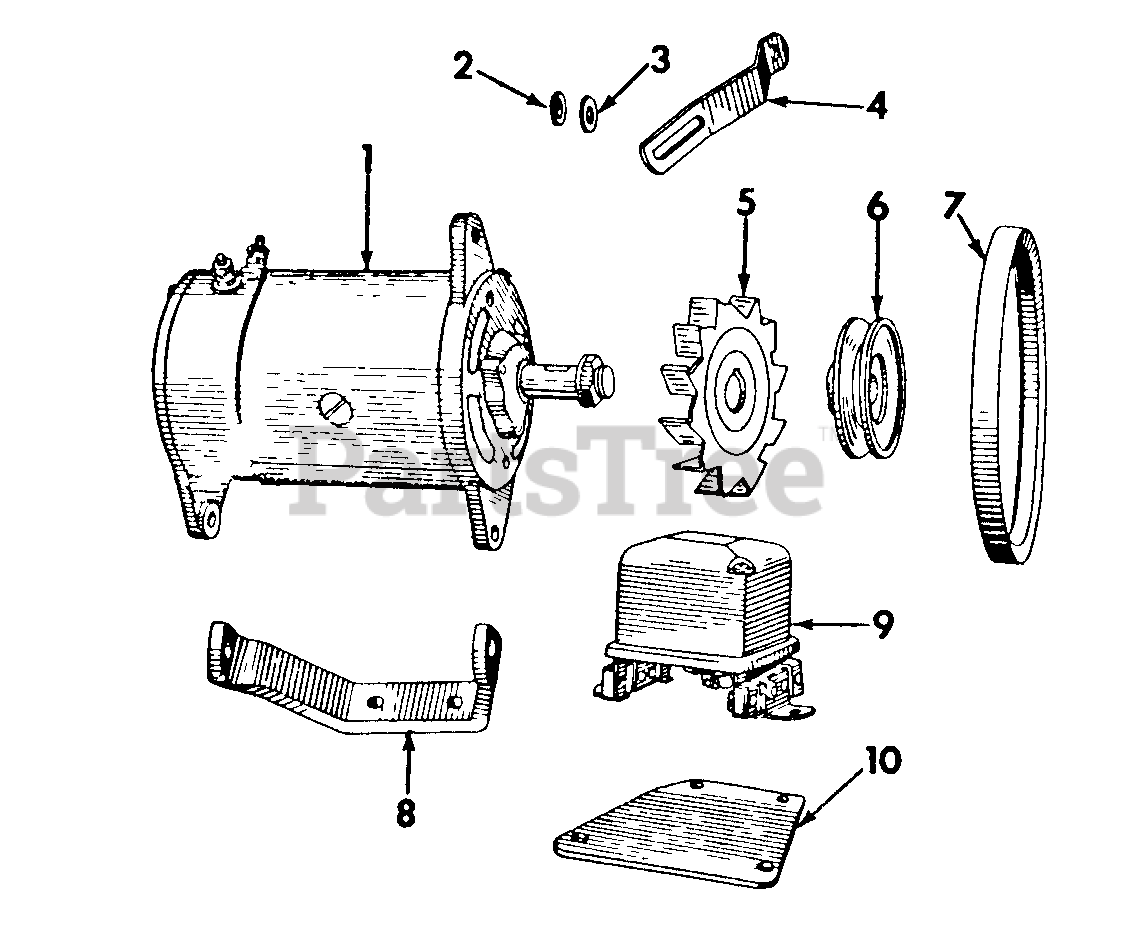

Generator and Connections Cub S/N 221293-248124/Low-Boy S/N 16398 Parts Diagram

  • Title

1

Cub Cadet IH-1100055

GENERATOR ASSY - 6 VOLT

Note: (IH-382050-R91; CUB TRACTORS W, SERIAL NOS 221293 TO 224400, CUB LO BOY TRACTORS W SERIAL NOS 16398 TO 18700; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF GENERATOR)

$

$

Currently unavailable

1

Cub Cadet IH-1100401

GENERATOR ASSY - 12 VOLT

Note: (IH-319622-R91; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF GENERATOR; CUB TRACTORS W/SERIAL NO. 224401 TO 248124, CUB LO-BOY TRACTORS W/SERIAL NO. 18701 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-103025

NUT, 5/16-24 HEX

$

$

Currently unavailable

Cub Cadet IH-181340

SCREW, 5/16-24 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-280185-R1

SPACER, GENERATOR BRACE

$

$

Currently unavailable

3

Cub Cadet IH-557264-R1

WASHER, 11/32 X 3/4 X .105

$

$

Currently unavailable

4

Cub Cadet IH-382051-R1

BRACE, GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-557265-R1

WASHER, .344 X 1 X .105

$

$

Currently unavailable

5

Cub Cadet IH-1944437

FAN, GENERATOR

Note: (IH-216486-R1)

$

$

Currently unavailable

6

Cub Cadet IH-364907-R1

PULLEY, GENERATOR

$

$

Currently unavailable

7

Cub Cadet IH-358213-R1

BELT, GENERATOR
(Superseded to IH-107671-C1)

$

$

Not available

8

Cub Cadet IH-351318-R1

BRACKET, GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179840

SCREW, 3/8-16 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

9

Cub Cadet IH-121578-C1

REGULATOR ASSY, VOLTAGE - 6 VOLT
(Superseded to IH-121578-C2)

Note: (REPLACES IH-1119575; CUB TRACTORS W/SERIAL NOS 221293 TO 224400, CUB LO-BOY TRACTORS W/SERIAL NO. 16398 TO 18700)

$196.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-121577-C1

REGULATOR ASSY, VOLTAGE - 12 VOLT
(Superseded to IH-121577-C2)

Note: (REPLACES IH-1118999; CUB TRACTORS W/SERIAL NO. 224401 AND ABOVE, CUB LO-BOY TRACTORS W/SERIAL NO. 18701 & ABOVE)

$203.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT 1/4-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-179792

SCREW, 1/4-20 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

10

Cub Cadet IH-354247-R1

BRACKET, VOLTAGE REGULATOR MOUNTING

$

$

Currently unavailable
