Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Generator Mounting Brace Parts Diagram

Cub Lo-Boy Tractor

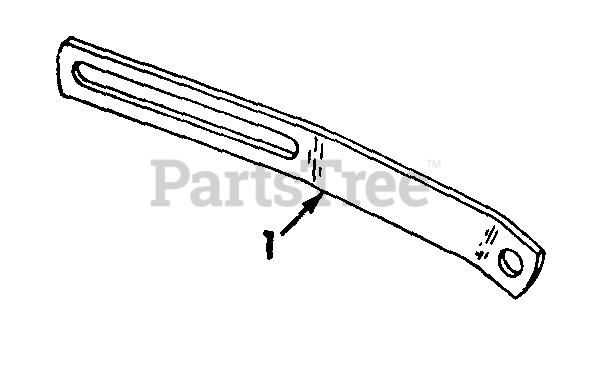

Generator Mounting Brace Parts Diagram

  • Title
1

Cub Cadet IH-351319-R1

BRACE GENERATOR

Note: (CUB TRACTORS W/SERIAL NO. 501 TO 221292 CUB LO-BOY TRACTORS W/SERIAL NO. 501 TO 16397)

$

$

Currently unavailable

Cub Cadet IH-176816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103340

WASHER, 11/32 X 11/16 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-557264-R1

WASHER, 11/32 X 3/4 X 11 GA

$

$

Currently unavailable

1

Cub Cadet IH-382051-R1

BRACE, GENERATOR

Note: (CUB TRACTORS W/SERIAL NOS 221293 AND ABOVE CUB LO-BOY TRACTORS W/SERIAL NO. 16398 AND ABOVE)

$

$

Currently unavailable

Cub Cadet IH-176816

SCREW, 5/16-18 X 3/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-280185-R1

SPACER, GENERATOR BRACE

$

$

Currently unavailable

Cub Cadet IH-557264-R1

WASHER, 11/32 X 3/4 X 11 GA

$

$

Currently unavailable
