Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Rockshaft, Leveling Screw, Lateral Link & Locking Link (Cub Lo-Boy) Parts Diagram

Cub Lo-Boy Tractor

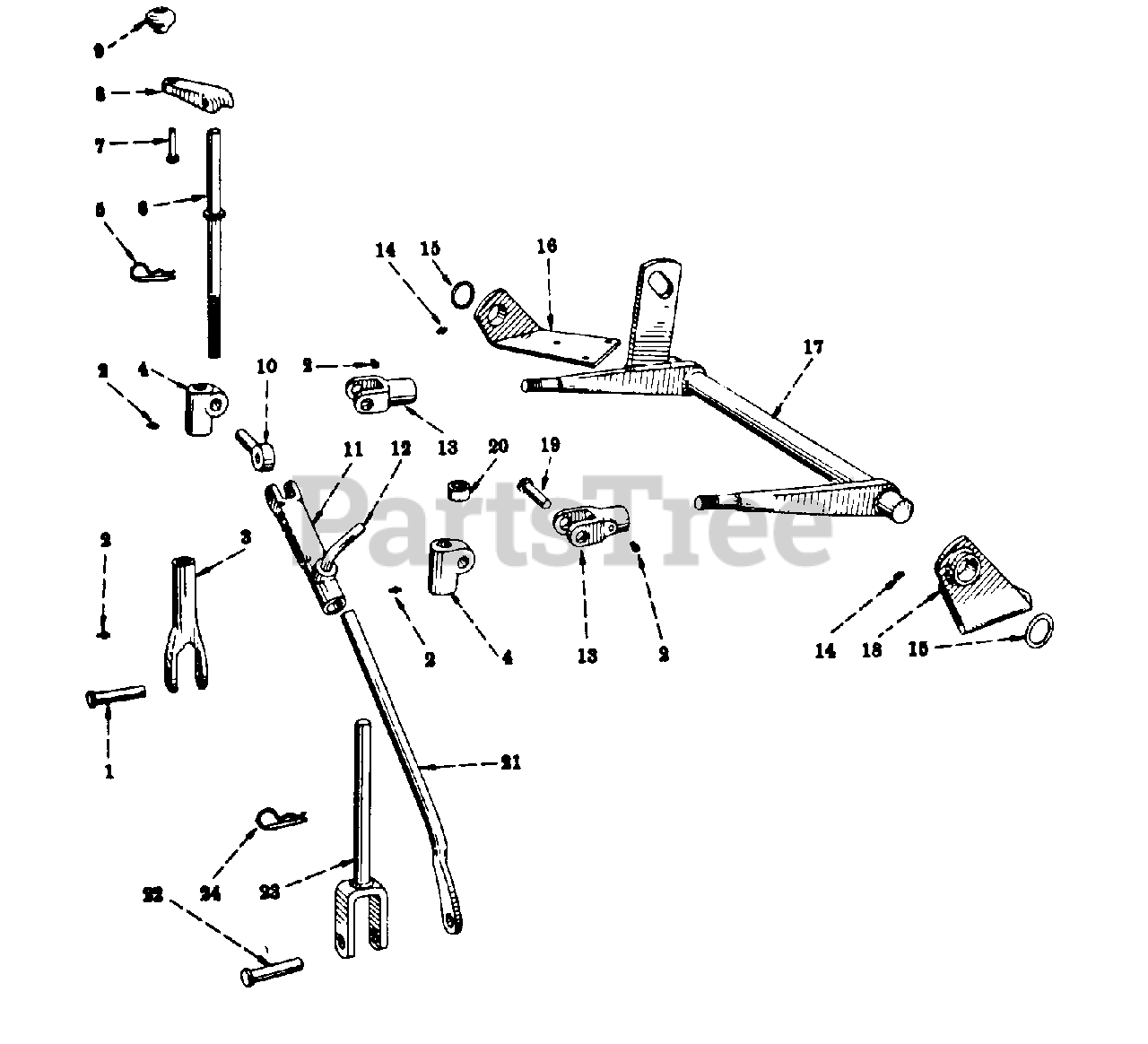

Rockshaft, Leveling Screw, Lateral Link & Locking Link (Cub Lo-Boy) Parts Diagram

  • Title

1

Cub Cadet IH-518505-R1

PIN, 3/4 X 3 STD-HD DRILLED

Note: LATERAL LINK TO SWIVEL

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

2

Cub Cadet IH-109461

FITTING, 1/8-27 STR LUB

$

$

Not available

3

Cub Cadet IH-520128-R1

HOUSING, LEVELING SCREW

$

$

Currently unavailable

4

Cub Cadet IH-520064-R1

SWIVEL, LATERAL LINK UPPER

$

$

Currently unavailable

5

Cub Cadet IH-520175-R11

PIN ASSY, QUICK-ATTACHABLE COT

$

$

Not available

6

Cub Cadet IH-521832-R11

SCREW ASSY, LEVELING

$

$

Currently unavailable

Cub Cadet IH-441012-R1

PIN, 1/4 X 7/8 ESNA ROLL
(Superseded to 715-3011)

$

$

Not available

Cub Cadet IH-521128-R1

SHIM, 29/32 X 1-3/8 X 22 GA

$

$

Currently unavailable

Cub Cadet IH-PO12898

WASHER, 29/32 X 1-1/2 X 1 GA

$

$

Currently unavailable

7

Cub Cadet IH-521672-R1

PIN, 1/2 X 2-9/16 ROLL

Note: LEVELING SCREW HANDLE KNOB

$

$

Currently unavailable

8

Cub Cadet IH-521831-R1

HANDLE, LEVELING SCREW

$

$

Currently unavailable

Cub Cadet IH-576483-R1

PIN, 5/16 X 1-1/2 ESNA ROLL
(Superseded to 715-3002)

$7.99

$

Usually ships in 3-6 days

0

9

IH-53717DA

KNOB, LEVELING SCREW HANDLE

$

$

Not available

10

Cub Cadet IH-521410-R1

SWIVEL, DIAGONAL LINK

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT.

$

$

Currently unavailable

11

Cub Cadet IH-520127-R1

STOP, DIAGONAL LINK

$

$

Currently unavailable

Cub Cadet IH-Q3548

PIN, 1/2 X 2-1/16 STD-HD DRILLED

$

$

Currently unavailable

Cub Cadet IH-13094-R1

PIN, 3/16 X 1-1/4 SELF-OPENING COT.

$

$

Currently unavailable

12

Cub Cadet IH-520093-R1

BOLT, DIAGONAL LINK STOP LOCK

$

$

Currently unavailable

13

Cub Cadet IH-520126-R1

SWIVEL, ROCKSHAFT ARM

$

$

Currently unavailable

14

Cub Cadet IH-110146-R91

FITTING, 1/4-28 STR LUB

$

$

Not available

15

Cub Cadet IH-521423-R11

PLATE ASSY, ATTACHING ROCKSHAFT LH

$

$

Currently unavailable

Cub Cadet IH-17459-R1

BOLT, 1/2-13 X 1-3/8 HEX-HD MACH

$

$

Currently unavailable

16

Cub Cadet IH-521406-R11

ROCKSHAFT ASSY

$

$

Currently unavailable

Cub Cadet IH-13170-R1

PIN, 5/16 X 2-1/4 SELF-OPENING COT

$

$

Currently unavailable

17

Cub Cadet IH-243

WASHER, 1-17/32 X 2 X 16 GA

$

$

Currently unavailable

18

Cub Cadet IH-521424-R11

PLATE ASSY, ATTACHING ROCKSHAFT RH

$

$

Currently unavailable

Cub Cadet IH-17446-R1

BOLT, 3/8-16 X 1-1/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-271560

SCREW, 5/8-11 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

19

Cub Cadet IH-521427-R1

PIN, 3/4 X 3-1/16 STD-HD DRILLED

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT.

$

$

Currently unavailable

20

Cub Cadet IH-520106-R1

COLLAR, LATERAL LINK

$

$

Currently unavailable

Cub Cadet IH-P13254

PIN, 5/16 X 1-9/16 STD-HD DRILLED

$

$

Currently unavailable

Cub Cadet IH-13034-R1

PIN, 1/3 X 5/8 SELF-OPENING COT.

$

$

Currently unavailable

21

Cub Cadet IH-520142-R1

LINK, DIAGONAL

$

$

Currently unavailable

Cub Cadet IH-17098-R1

PIN, 3/8 X 1-3/4 ROLL
(Superseded to 915-0125)

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-520162-R1

PIN, 3/4 X 3-3/8 STD-HD DRILLED

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

23

Cub Cadet IH-520146-R11

LINK ASSY, LATERAL

$

$

Currently unavailable

Cub Cadet IH-521128-R1

SHIM, 29/32 X 1-3/8 X 22 GA

Note: AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-PO12898

WASHER, 29/32 X 1-1/2 X 11 GA

$

$

Currently unavailable

24

Cub Cadet IH-520175-R11

PIN ASSY, QUICK-ATTACHABLE COT

$

$

Not available
