Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Alternator Generator and Connections (Cub S/N 248125 And Above) Parts Diagram

Cub Lo-Boy Tractor

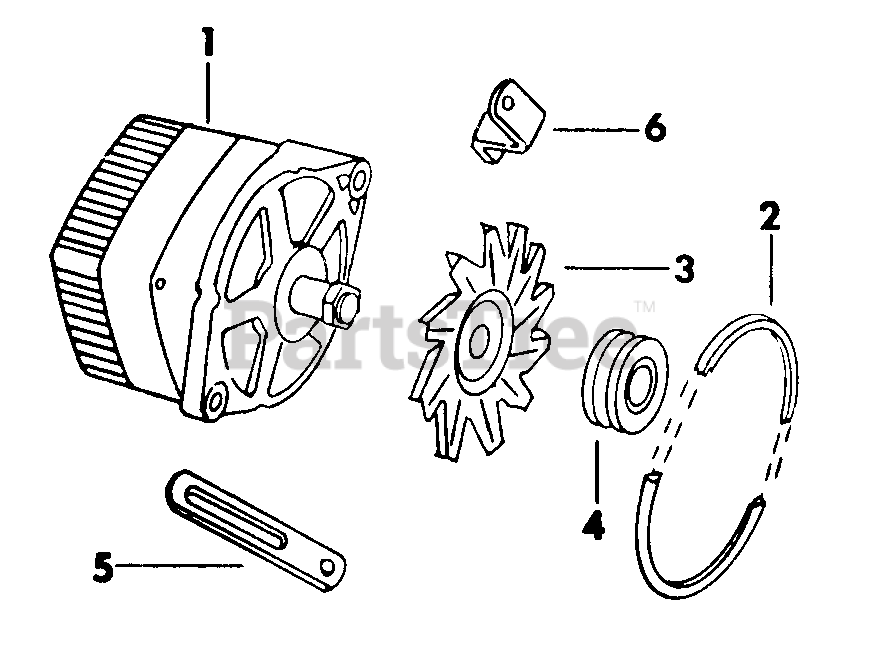

Alternator Generator and Connections (Cub S/N 248125 And Above) Parts Diagram

  • Title

1

Cub Cadet IH-1100578

ALTERNATOR-GENERATOR ASSY - 37 AMPERE

Note: (ORDER IH-1103171; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-1100583

ALTERNATOR-GENERATOR ASSY - 42 AMPERE

Note: (ORDER IH-1103171; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-1100588

ALTERNATOR-GENERATOR ASSY - 37 AMPERE

Note: (IH-391887-C91; ORDER IH-1103171; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-1102920

ALTERNATOR-GENERATOR ASSY - 42 AMPERE

Note: (ORDER IH-1103171; FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-186282

SCREW, 3/8-16 X 3-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 LOCK

$

$

Currently unavailable

Cub Cadet IH-127507H

WASHER, .406 X .875 X .179

$

$

Currently unavailable

Cub Cadet IH-179822

SCREW, 5/16-18 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-103340

WASHER, .344 X .688 X .051

$

$

Currently unavailable

Cub Cadet IH-SA2172

SPACER, 3/8 X 1/2 STD PIPE

$

$

Currently unavailable

Cub Cadet IH-1103171

ALTERNATOR-GENERATOR - 42 AMPERE METRIC

Note: (FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR GENERATOR)

$

$

Currently unavailable

Cub Cadet IH-931714-R1

BOLT, M10 X 80 PLN CLASS 8.8

$

$

Currently unavailable

Cub Cadet IH-905262-R1

NUT, M10 PHC P/T CLASS 10

$

$

Currently unavailable

Cub Cadet IH-933833-R1

WASHER, 6MM LOCK
(Superseded to KB-04512-70060)

$

$

Not available

Cub Cadet IH-30281-R1

NUT, M6 CLASS 10

$

$

Currently unavailable

Cub Cadet IH-30004-R1

BOLT, M8 X 30 PHC CLASS 10.9

$

$

Currently unavailable

Cub Cadet IH-30183-R1

WASHER, 8.8 X 21 X 2.5MM PHC

$

$

Currently unavailable

Cub Cadet IH-930294-R1

BOLT, M8 X 30 PLN CLASS 8.8

$

$

Currently unavailable

2

Cub Cadet IH-107671-C1

BELT, ALTERNATOR GENERATOR

$

$

Not available

3

Cub Cadet IH-221425-R1

FAN, ALTERNATOR GENERATOR

$

$

Currently unavailable

4

Cub Cadet IH-1961291

PULLEY, ALTERNATOR GENERATOR

$

$

Currently unavailable

5

Cub Cadet IH-396359-R2

BRACE, ALTERNATOR GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179851

SCREW, 3/8-16 X 3 HEX-HD CAP

$

$

Currently unavailable

6

Cub Cadet IH-107554-C1

SUPPORT, ALTERNATOR GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER 3/8 REG LOCK

$

$

Currently unavailable
