Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Bail, Draft Link, Pull Bar & Supports Parts Diagram

Cub Lo-Boy Tractor

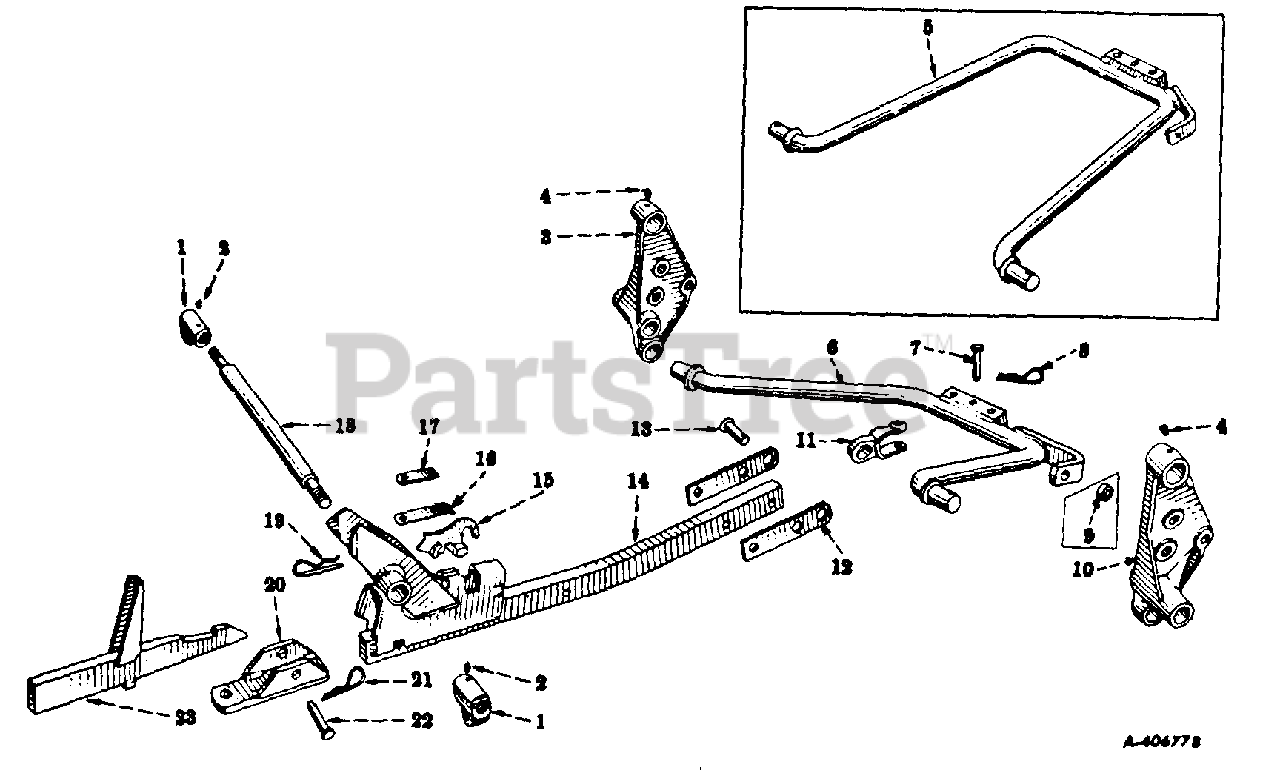

Bail, Draft Link, Pull Bar & Supports Parts Diagram

  • Title

1

Cub Cadet IH-520129-R1

SWIVEL, LATERAL LINK LOWER

$

$

Currently unavailable

2

Cub Cadet IH-109461

FITTING, 1/8-27 STR LUB

$

$

Not available

3

Cub Cadet IH-520125-R2

BRACKET, HITCH ATTACHING LH

$

$

Currently unavailable

Cub Cadet IH-17450-R1

BOLT, 5/8-11 X 1-1/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-17475-R1

BOLT, 5/8-11 X 1-1/2 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-109460

FITTING, 1/8 X 67-1/2 DEG ELBOW LUB

$

$

Currently unavailable

5

Cub Cadet IH-520136-R91

BAIL ASSY, HITCH

Note: HITCHES W/DEPTH ADJUSTING LEVER

$

$

Currently unavailable

Cub Cadet IH-13157-R1

PIN, 1/4 X 2 SELF-OPENING COT.

$

$

Currently unavailable

Cub Cadet IH-552423-R1

WASHER, 1-13/32 X 2-1/4 X 11 GA

$

$

Currently unavailable

6

Cub Cadet IH-522693-R91

BAIL ASSY, HITCH

Note: HITCHES W/DEPTH ADJUSTING CRANK

$

$

Currently unavailable

Cub Cadet IH-13157-R1

PIN, 1/4 X 2 SELF-OPENING COT.

$

$

Currently unavailable

7

Cub Cadet IH-520296-R1

PIN, PULL BAR PIVOT BRACKET

$

$

Currently unavailable

8

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT.

$

$

Not available

?9

Cub Cadet IH-510042-R1

BUSHING, DEPTH ADJUSTING SCREW CLEVIS

$

$

Currently unavailable

10

Cub Cadet IH-520124-R2

BRACKET, HITCH ATTACHING RH

$

$

Currently unavailable

Cub Cadet IH-17450-R1

BOLT, 5/8 X 1-1/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-17475-R1

BOLT, 5/8 X 1-1/2 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

11

Cub Cadet IH-520069-R1

BRACKET, PULL ROD PIVOT

$

$

Currently unavailable

12

Cub Cadet IH-520102-R1

STRAP, PULL BAR EXTENSION

Note: NOT USED ON TRACTORS EQUIPPED WITH CUSHION SPRING

$

$

Currently unavailable

Cub Cadet IH-17604-R1

BOLT, 5/8-11 X 2-3/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-17630-R1

BOLT, 3/4-10 X 3 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-102639

NUT, 5/8-11 HEX.

$

$

Currently unavailable

Cub Cadet IH-220081

NUT, 3/4-10 HEX.

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103326

WASHER, 3/4 MED LOCK
(Superseded to 936-0364)

$

$

Not available

13

Cub Cadet IH-363415-R1

PIN, PULL BAR PIVOT

Note: NOT USED ON TRACTORS EQUIPPED WITH CUSHION SPRING

$

$

Currently unavailable

Cub Cadet IH-13121-R1

PIN, 1/4 X 1-1/2 SELF-OPENING COT.

$

$

Currently unavailable

14

Cub Cadet IH-520150-R11

BAR ASSY, PULL

$

$

Currently unavailable

15

Cub Cadet IH-393500-R1

LATCH, PULL BAR

Note: WILL WORK FOR IH-523110-R3

$

$

Currently unavailable

16

Cub Cadet IH-522839-R1

SPRING, LATCH

$

$

Currently unavailable

Cub Cadet IH-179833

SCREW, 3/8-16 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 WED LOCK

Note: NOT USED ON HITCH EQUIPPED WITH AUXILIARY SPRING

$

$

Currently unavailable

17

Cub Cadet IH-522840-R2

SPRING, AUXILIARY LATCH

Note: USED TO INCREASE SPRING PRESSURE

$

$

Currently unavailable

18

Cub Cadet IH-520139-R1

SUPPORT, PULL BAR

$

$

Currently unavailable

19

Cub Cadet IH-520174-R11

PIN ASSY, QUICK-ATTACHABLE COT.

$

$

Currently unavailable

20

Cub Cadet IH-520095-R2

EXTENSION, PULL BAR

$

$

Not available

21

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT.

$

$

Not available

22

Cub Cadet IH-PO12095

PIN, 5/8 X 3-5/16 STD-HD DRILLED

$

$

Not available

23

Cub Cadet IH-521093-R92

COUPLING, BEAM

$

$

Currently unavailable
