Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Combination Rear Light and Tail Light - Sealed Beam - 12 Volt Parts Diagram

Cub Lo-Boy Tractor

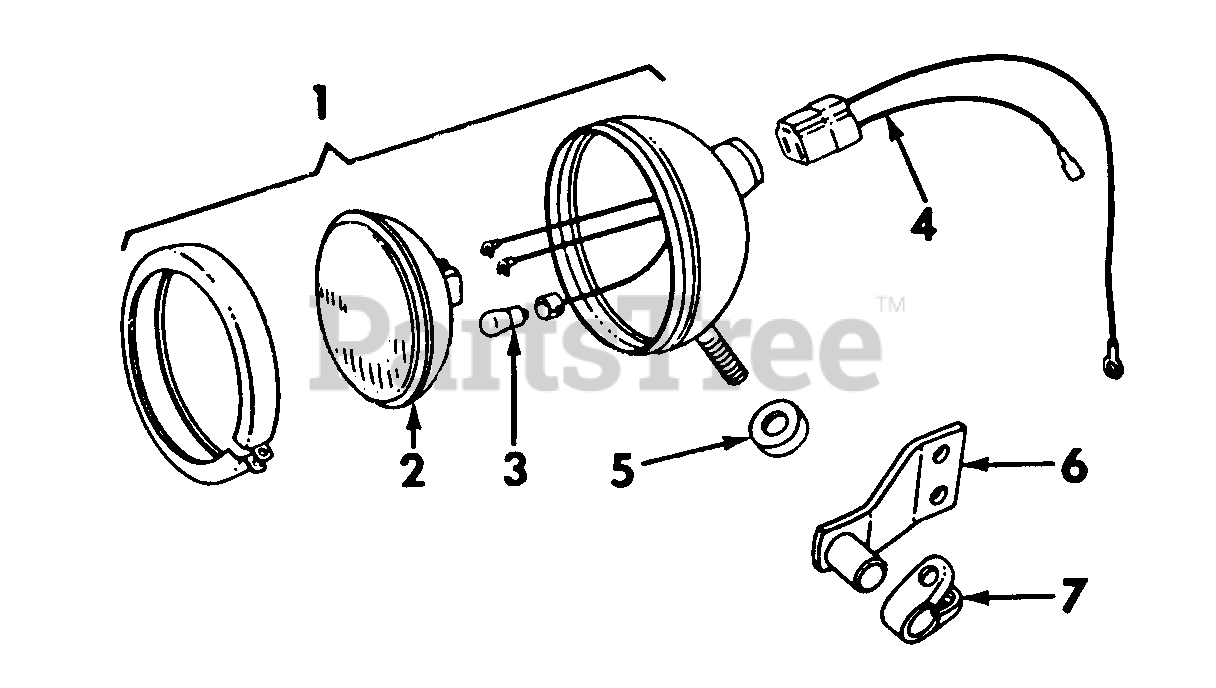

Combination Rear Light and Tail Light - Sealed Beam - 12 Volt Parts Diagram

  • Title

1

Cub Cadet IH-377102-R92

LIGHT ASSY. COMBINATION REAR AND TAIL - 12 VOLT

Note: (ONLY SERVICEABLE ITEMS ARE SEALED BEAM UNIT, IH-371461-R92 AND LAMP, IH-455490)

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-371461-R92

UNIT, SEALED BEAM -12 VOLT

$

$

Not available

3

Cub Cadet IH-455490

LAMP, NO. 1003 -12 VOLT

$

$

Currently unavailable

4

Cub Cadet IH-387403-R91

CABLE ASSY COMBINATION REAR LIGHT CONNECTOR

$

$

Currently unavailable

5

Cub Cadet IH-365503-R1

SPACER, REAR LIGHT

$

$

Not available

6

Cub Cadet IH-352121-R21

BRACKET ASSY, REAR LIGHT

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-350920-R1

CLAMP REAR LIGHT

$

$

Not available

Cub Cadet IH-375376-R1

GASKET, SEALED BEAM UNIT

Note: (USED ONLY IF UNIT IS LOOSE IN LIGHT BODY)

$

$

Currently unavailable
