Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Lift Link & Helper Spring Connections Parts Diagram

Cub Lo-Boy Tractor

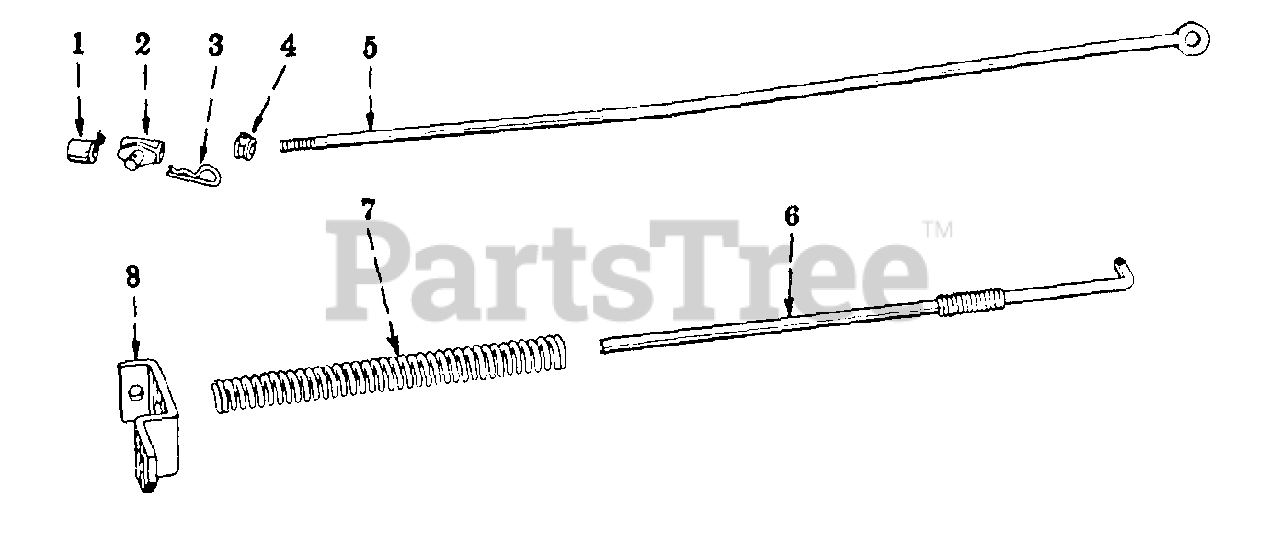

Lift Link & Helper Spring Connections Parts Diagram

  • Title

Cub Cadet IH-363655-R92

ATTACHMENT, FAST-HITCH

Note: FOR TRACTORS EQUIPPED WITH TOUCH CONTROL SYSTEM- -SERIAL NO. 185001 AND ABOVE- COMPOSED OF THE FOLLOWING 9 PARTS.

$

$

Currently unavailable

Cub Cadet IH-17427-R1

BOLT

$

$

Currently unavailable

Cub Cadet IH-17450-R1

BOLT

$

$

Currently unavailable

Cub Cadet IH-17475-R1

BOLT

$

$

Currently unavailable

Cub Cadet IH-271500

NUT

$

$

Currently unavailable

Cub Cadet IH-179886

SCREW

$

$

Currently unavailable

Cub Cadet IH-520054-R92

FAST HITCH UNIT

Note: Not Available Separately

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103325

WASHER

$

$

Currently unavailable

1

Cub Cadet IH-520168-R1

BUSHING, LIFT LINK

$

$

Currently unavailable

2

Cub Cadet IH-520123-R1

TRUNNION, LIFT LINK

$

$

Currently unavailable

3

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT.

$

$

Not available

4

Cub Cadet IH-1431BX

COLLAR W/SCREW, IH-110448, SET

$

$

Currently unavailable

Cub Cadet IH-110448

SCREW, 1/2-13 X 3/4 SQ-HD CUP-PT SET

$

$

Currently unavailable

5

Cub Cadet IH-520143-R11

LINK W/NUT, IH-218443, LIFT

$

$

Currently unavailable

Cub Cadet IH-218443

NUT, 3/4-10 HEX JAM

$

$

Not available

Cub Cadet IH-13094-R1

PIN, 3/16 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

Cub Cadet IH-Q3501

WASHER, 25/32 X 1-1/8 X 16 GA

$

$

Currently unavailable

6

Cub Cadet IH-520163-R91

ROD ASSY, HELPER SPRING

$

$

Currently unavailable

Cub Cadet IH-218446

NUT, 1-1/8-7 HEX. JAM

$

$

Currently unavailable

Cub Cadet IH-13094-R1

PIN, 3/16 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

7

Cub Cadet IH-520160-R1

SPRING, HELPER

$

$

Currently unavailable

8

Cub Cadet IH-520157-R2

GUIDE, HELPER SPRING ROD

$

$

Currently unavailable

Cub Cadet IH-17427-R1

BUILT, 7/16 X 14 X 1 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-271500

NUT, 7/16-14 HEX

$

$

Currently unavailable

Cub Cadet IH-179886

SCREW, 1/2-13 X 1-5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0
