Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Rear Wheels Parts Diagram

Cub Lo-Boy Tractor

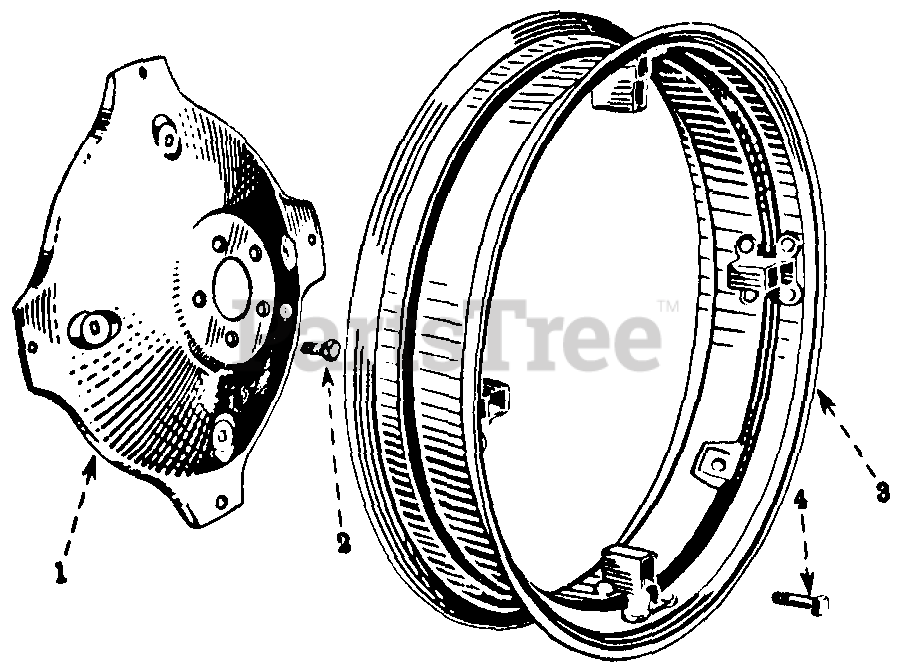

Rear Wheels Parts Diagram

  • Title

1

Cub Cadet IH-351083-R1

WHEEL DISC REAR

$

$

Currently unavailable

2

Cub Cadet IH-351079-R1

BOLT REAR WHEEL
(Superseded to 910-0470)

$

$

Not available

3

Cub Cadet IH-351084-R91

RIM, W/CLAMPS, REAR WHEEL

Note: (W5-24 RIM FOR 6-24 OR 7-24 TIRES)

$

$

Currently unavailable

3

Cub Cadet IH-114717-C1

RIM, W/CLAMPS, REAR WHEEL

Note: (W7-24 RIM FOR 7-24, 8 3/8-24 OR 9 5/9-24 TIRES; REPLACES IH-351428-R91; ALSO FURNISH 4 BOLTS 351510-R3, 4 WASHERS IH-120396 AND 4 WASHERS IH-120239)

$

$

Currently unavailable

3

Cub Cadet IH-355067-R91

RIM, W/CLAMPS, REAR WHEEL

Note: (W5-30 RIM FOR 7 2/7-30 TIRE; CUB TRACTORS W/HIGH CLEARANCE ATTACHMENT)

$

$

Currently unavailable

Cub Cadet IH-181696

SCREW, 1/2-20 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120371

NUT, 1/2-20 ZND HEX

$

$

Currently unavailable

4

Cub Cadet IH-351085-R1

BOLT REAR WHEEL RIM

Note: (USED W/IH-351084-R91, IH-351428-R91 RIM)

$

$

Currently unavailable

Cub Cadet IH-120371

NUT, 1/2-NF TYPE 5

$

$

Currently unavailable

4

Cub Cadet IH-351510-R3

BOLT, REAR WHEEL RIM

Note: (USE W/IH-114717-C1 RIM)

$

$

Currently unavailable

Cub Cadet IH-120396

WASHER, .531 X 1.062 X 0.74
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120239

WASHER, 1/2 LT LOCK

$

$

Currently unavailable

Cub Cadet IH-120371

NUT, 1/2-NF TYPE 5

$

$

Currently unavailable
