Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Seat and Platform Parts Diagram

Cub Lo-Boy Tractor

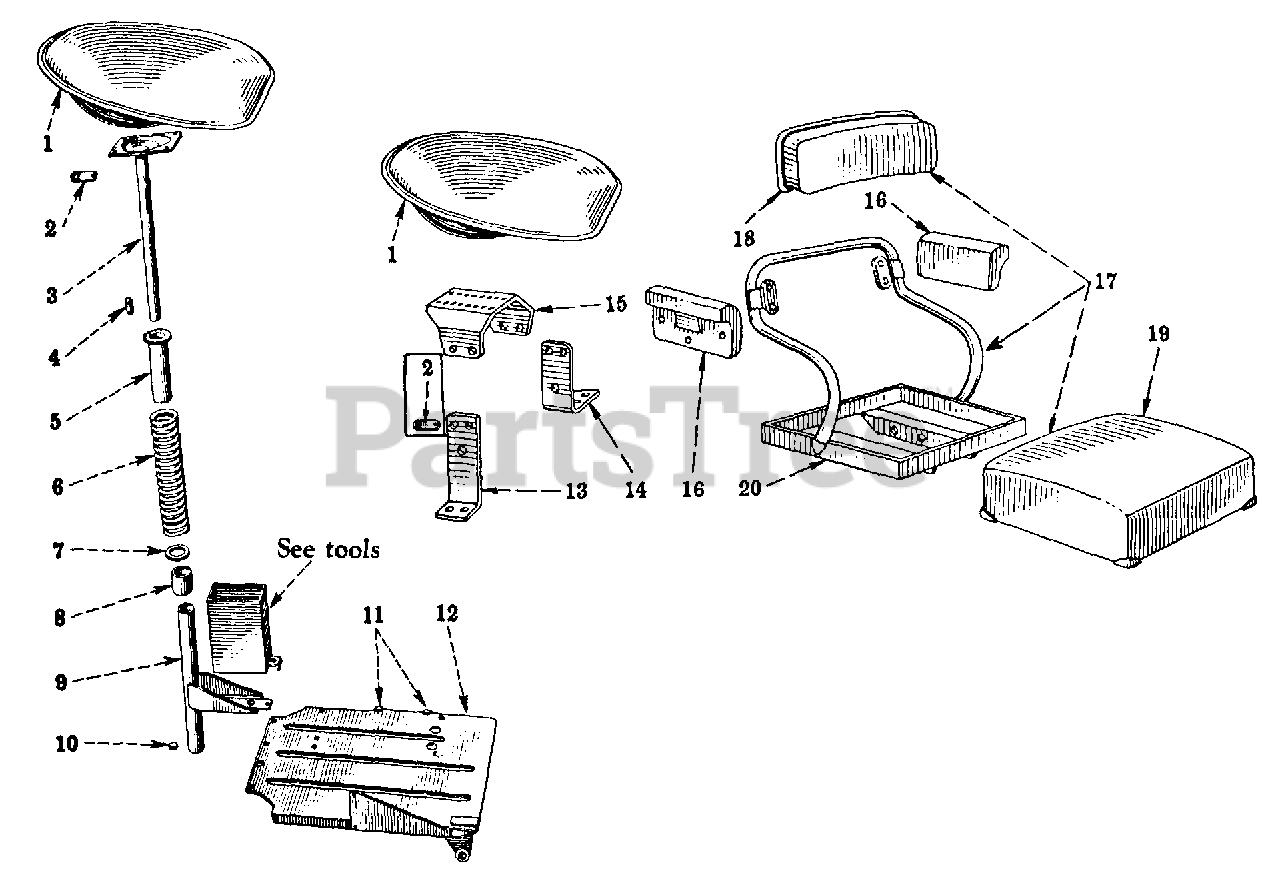

Seat and Platform Parts Diagram

  • Title

1

Cub Cadet IH-351880-R92

SEAT, PLAIN

$

$

Currently unavailable

1

Cub Cadet IH-351925-R93

SEAT ASSY, UPHOLSTERED

Note: (REPLACES IH-354155-R91 AND IH-357518-R92)

$

$

Currently unavailable

2

Note: NOT USED IN THIS APPLICATION

$

$

Not available

3

Cub Cadet IH-351888-R32

POST ASSY, SEAT

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

Cub Cadet IH-181393

SCREW, 7/16-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-351882-R1

GUIDE, SEAT POST

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

Cub Cadet IH-181341

SCREW, 5/16-24 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-351886-R11

RETAINER ASSY, SEAT SPRING

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

6

Cub Cadet IH-351872-R1

SPRING, SEAT

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

7

Cub Cadet IH-351048-R1

WASHER, SEAT SPRING

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

8

Cub Cadet IH-351881-R1

SPACER SEAT SPRING

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

9

Cub Cadet IH-351883-R11

TUBE, SEAT SUPPORT

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

Cub Cadet IH-271556

SCREW, 5/8-11 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

10

Cub Cadet IH-351879-R1

SHOCK ABSORBER, SEAT POST

Note: (CUB TRACTORS WITH PLAIN SEAT)

$

$

Currently unavailable

11

Cub Cadet IH-351013-R1

CLIP, STARTING CRANK

Note: (FOR TRACTORS W/O STARTING AND LIGHTING SYSTEM)

$

$

Currently unavailable

Cub Cadet IH-171573

SCREW, 10-32 X 1/4 SLT-RD-HD TAP

$

$

Currently unavailable

12

Cub Cadet IH-351051-R21

PLATFORM ASSY

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX
(Superseded to 912-3010)

Note: (CUB TRACTORS)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

Note: (NOT USED ON CUB LO-BOY TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

13

Cub Cadet IH-364076-R1

SUPPORT DELUXE CUSHION SEAT RH

$

$

Currently unavailable

Cub Cadet IH-271556

SCREW, 5/8-11 X 1-1/4 HEX-HD CAP

Note: (NOT USED ON CUB LO-BOY TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

14

Cub Cadet IH-364075-R2

SUPPORT, DELUXE CUSHION SEAT LH

$

$

Currently unavailable

Cub Cadet IH-179881

SCREW 1/2-13 X 1 HEX-HD CAP

Note: (NOT USED ON CUB LO-BOY TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

Note: (NOT USED ON CUB LO-BOY TRACTORS WITH FAST-HITCH)

$4.49

$

In Stock, Qty 20+

0

15

BRACKET, SEAT SUPPORT

Note: (CUB LO-BOY TRACTORS WITH PLAIN SEAT DISCONTINUED FOR SERVICE)

$

$

Not available

Cub Cadet IH-181393

SCREW 7/16-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER 7/16 MED LOCK

$

$

Currently unavailable

16

Cub Cadet IH-363740-R91

PAD W/CLAMP, DELUXE CUSHION SEAT ARMREST

Note: (REPLACES IH-385743-R91)

$

$

Currently unavailable

17

Cub Cadet IH-364398-R92

SEAT ASSY DELUXE CUSHION

Note: (COMPOSED OF 1 CUSHION IH-363220-R91, 1 FRAME IH-364399-R91, 1 REST IH-363219-R91, 2 SCREW IH-160541, 2 WASHER IH-120380, AND 2 WASHER IH-120382.)

$

$

Currently unavailable

Cub Cadet IH-363220-R91

CUSHION

$

$

Currently unavailable

Cub Cadet IH-364399-R91

FRAME

$

$

Currently unavailable

Cub Cadet IH-363219-R91

REST

$

$

Not available

Cub Cadet IH-160541

SCREW

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120382

WASHER
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet IH-363219-R91

REST ASSY DELUXE SEAT

$

$

Not available

Cub Cadet IH-160541

SCREW, 1/4-20 X 3/4 C-Z CR REC-PAN HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER 1/4 C-Z REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X 16 GA ZND
(Superseded to 736-0463)

Note: (OR AS REQUIRED)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet IH-363220-R91

CUSHION ASSY, DELUXE SEAT

$

$

Currently unavailable

20

Cub Cadet IH-364399-R91

FRAME ASSY, DELUXE SEAT

$

$

Currently unavailable

Cub Cadet IH-103026

NUT, 3/8-24 HEX
(Superseded to 912-0121)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-181361

SCREW, 3/8-24 X 7/8 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-407204-R2

CUSHION DELUXE SEAT PAD

Note: (REPLACES IH-351438-R93 AND 359483-R91)

$

$

Not available

Cub Cadet IH-385073-R1

PAD, DETACHABLE SEAT YELLOW/WHITE

$

$

Not available
