Cub Lo-Boy Tractor

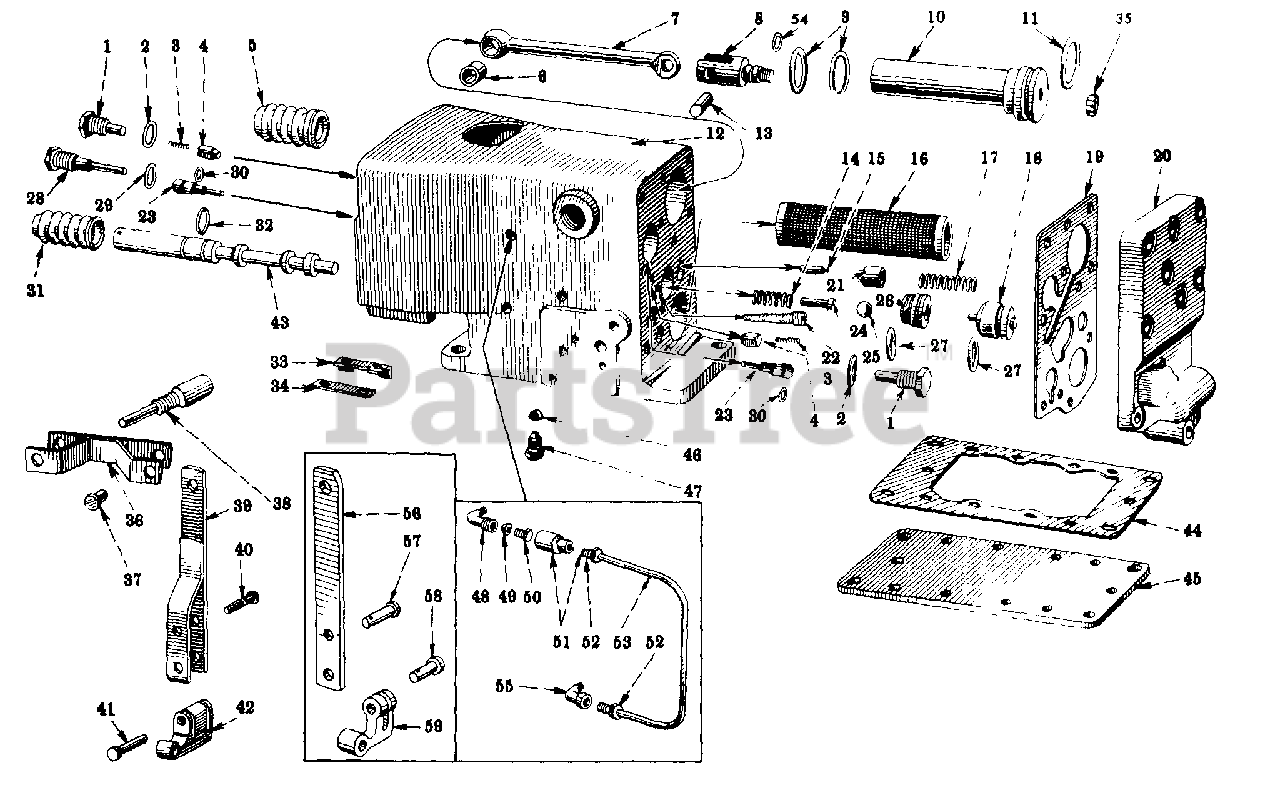

Touch Control System Parts Diagram

  • Title

Cub Cadet IH-360712-R92

PARTS ACCESSORY ATTACHMENT, FARMALL TOUCH-CONTROL

$

$

Currently unavailable

1

Cub Cadet IH-352015-R1

PLUG, CHECK VALVE ACTUATOR

$

$

Currently unavailable

2

Cub Cadet IH-13727D

WASHER, CHECK VALVE ACTUATOR PLUG

$

$

Not available

3

Cub Cadet IH-350668-R1

SPRING. CHECK VALVE

$

$

Not available

4

Cub Cadet IH-354057-R2

VALVE, CHECK

Note: REPLACES IH-350664-R1

$

$

Not available

5

Cub Cadet IH-364833-R1

BOOT, PISTON SLEEVE -RUBBER-

Note: WILL WORK FOR LEATHER BOOT, IH-352005-R3

$

$

Not available

WIRE, 18 GA X 40 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

WIRE, 18 GA X 4 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

6

Cub Cadet IH-352007-R1

BUSHING. CONNECTING ROD

$

$

Currently unavailable

7

Cub Cadet IH-352006-R11

ROD W/BUSHING, IH-352007-R1, CONNECTING

$

$

Currently unavailable

8

Cub Cadet IH-352008-R1

YOKE, CONNECTING ROD

Note: ORDER PACKAGE, IH-355726-R91- -SERIAL NO. 138824 & BELOW

$

$

Currently unavailable

8

Cub Cadet IH-355729-R1

YOKE, CONNECTING ROD

Note: SERIAL NO. 138825 & ABOVE

$

$

Currently unavailable

9

Cub Cadet IH-352004-R1

RING, PISTON SLEEVE SEAL

$

$

Not available

10

Cub Cadet IH-355726-R91

PACKAGE, PISTON REPLACEMENT SERVICE

Note: REPLACES IH-352008-R1 & IH-352001-R92 -SERIAL NO 138824 & BELOW- -CONSISTS OF THE FOLLOWING 3 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-355966-R1

O-RING

$

$

Not available

Cub Cadet IH-358207-R91

PISTON

$

$

Not available

Cub Cadet IH-355729-R1

YOKE

$

$

Currently unavailable

10

Cub Cadet IH-358207-R91

PISTON ASSY

Note: SERIAL NO 138825 AND ABOVE

$

$

Not available

11

Cub Cadet IH-461173-R1

RING, PISTON HEAD SEAL

$

$

Not available

12

BLOCK ASSY. CYLINDER

Note: ORDER BLOCK ASSY, IH-354381-R96

$

$

Not available

Cub Cadet IH-3405H

GASKET, FILLER PLUG

Note: USED WITH 7/8 IN. PLUG, IH-445096

$

$

Currently unavailable

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO. SQ-HD PIPE

$

$

Currently unavailable

Cub Cadet IH-444592

PLUG, 3/4-14 AUTO. SQ-HD PIPE -FILLER PLUG-

Note: USED WITH BLOCKS, IH-351981-R1, IH-354383-R1 AND R2

$

$

Currently unavailable

Cub Cadet IH-112524

PLUG, 1-1/2 DIAMETER EXPANSION -IN CYLINDER BLOCK-

Note: 8 USED ON BLOCK, IH-351981-R1 WITHOUT RELIEF VALVE

$

$

Currently unavailable

Cub Cadet IH-445096

PLUG, 7/8-18 HEX-HD OUTSIDE FILLER AND DRAIN

Note: USED WITH BLOCKS, IH-354383-R3 AND IH-364383-R4

$

$

Currently unavailable

Cub Cadet IH-179885

SCREW, 1/2-13 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet IH-352009-R1

PIN, CONNECTING ROD YOKE

$

$

Currently unavailable

14

Cub Cadet IH-352026-R2

SPRING, PRESSURE REGULATOR VALVE BALL RIDER

$

$

Not available

15

Cub Cadet IH-351867-R1

PISTON, SAFETY VALVE

$

$

Currently unavailable

16

Cub Cadet IH-351984-R92

STRAINER ASSY, CYLINDER BLOCK OIL

$

$

Not available

17

Cub Cadet IH-15258E

SPRING, SAFETY VALVE

$

$

Not available

18

Cub Cadet IH-352940-R21

PISTON ASSY, PRESSURE REGULATOR VALVE

$

$

Currently unavailable

19

Cub Cadet IH-351989-R6

GASKET, CYLINDER HEAD

$

$

Not available

20

Cub Cadet IH-354458-R92

HEAD ASSY, CYLINDER

Note: WILL WORK FOR 3/4 IN. THICK HEAD, IH-351988-R11- -SERIAL NO. 82412 AND BELOW- -COMPOSED OF THE FOLLOWING 4 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-354399-R21

HEAD ASSY

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW

$

$

Not available

Cub Cadet IH-129842

SCREW

$

$

Currently unavailable

Cub Cadet IH-179845

SCREW

$

$

Currently unavailable

20

Cub Cadet IH-354399-R21

HEAD W/PLUGS

Note: IH-444654 AND IH-444660 CYLINDER -SERIAL NO. 82413 AND ABOVE-

$

$

Currently unavailable

Cub Cadet IH-444654

PLUG, 1/4-18 AUTO, SQ-SOC PIPE

$

$

Currently unavailable

Cub Cadet IH-444660

PLUG, 3/8-18 AUTO, SQ-SOC PIPE

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

Note: SERIAL NO. 99068 AND BELOW

$

$

Not available

Cub Cadet IH-23164-R1

SCREW, 3/8-16 X 1-1/4 TYPE 8 HEX-HD CAP

Note: SERIAL NO. 99069 & ABOVE

$

$

Currently unavailable

Cub Cadet IH-179842

SCREW, 3/8-16 X 1-3/8 HEX-HD CAP

Note: SERIAL NO. 99068 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-354921-R1

SCREW, 3/8-16 X 1-1/2 TYPE 8 HEX-HD CAP

Note: SERIAL NO 99069 & ABOVE

$

$

Currently unavailable

Cub Cadet IH-179845

SCREW, 3/8-16 X 1-3/4 HEX-HD CAP

Note: SERIAL NO. 99068 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-354922-R1

SCREW, 3/8-16 X 2 TYPE 8 HEX-HD CAP

Note: SERIAL NO 99069 AND ABOVE

$

$

Currently unavailable

21

Cub Cadet IH-351868-R1

SLEEVE, SAFETY VALVE

$

$

Currently unavailable

22

Cub Cadet IH-355372-R93

ORIFICE ASSY

Note: REPLACES IH-351156-R1

$

$

Currently unavailable

23

Cub Cadet IH-352011-R2

ACTUATOR, CHECK VALVE

$

$

Currently unavailable

24

Cub Cadet IH-350084-R2

RIDER, PRESSURE REGULATOR VALVE BALL

$

$

Currently unavailable

25

Cub Cadet IH-16018-R1

BALL, 9/16 DIAMETER CHROME STEEL

Note: PRESSURE REGULATOR VALVE

$

$

Not available

26

Cub Cadet IH-352025-R1

SEAT, PRESSURE REGULATOR VALVE

$

$

Currently unavailable

27

Cub Cadet IH-352024-R2

RING. PRESSURE REGULATOR VALVE PISTON SEAL

$

$

Not available

28

Cub Cadet IH-352012-R21

STOP, CHECK VALVE ACTUATOR LOWER

$

$

Currently unavailable

29

Cub Cadet IH-13727D

WASHER, CHECK VALVE ACTUATOR STOP

$

$

Not available

30

Cub Cadet IH-355967-R1

O-RING, 3/8 X 1/2 X 1/16
(Superseded to 721-3008)

Note: CHECK VALVE ACTUATOR

$

$

Not available

31

Cub Cadet IH-364832-R1

BOOT, CONTROL VALVE -RUBBER-

Note: WILL WORK FOR LEATHER BOOT, IH-351753-R3

$

$

Not available

WIRE, 18 GA X 6-1/2 IN LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

WIRE, 18 GA X 4 IN LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

32

Cub Cadet IH-350672-R1

RING, CONTROL VALVE SEAL

$

$

Not available

33

Cub Cadet IH-352021-R2

STOP, CONTROL VALVE OPERATING LEVER

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

34

Cub Cadet IH-351697-R1

LOCK, CONTROL VALVE OPERATING LEVER STOP

$

$

Currently unavailable

35

Cub Cadet IH-9411648

NUT, 1/2-20 PHC GRIPCO LOCK TYPE 8 CONNECTING ROD YOKE

$

$

Not available

36

Cub Cadet IH-352018-R12

LINK ASSY, CONTROL VALVE OPERATING

Note: ALSO ORDER PIN, IH-350680-R2; ON TRACTORS W/SERIAL NO. 124503 AND BELOW

$

$

Currently unavailable

37

Cub Cadet IH-350680-R2

PIN, CONTROL VALVE OPERATING LINK

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

38

Cub Cadet IH-352010-R1

PIN, CONNECTING ROD

$

$

Currently unavailable

Cub Cadet IH-103028

NUT, 1/2-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-108628

PIN, 1/16 X 7/8 COT

$

$

Not available

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet IH-354391-R91

LEVER ASSY, CONTROL VALVE OPERATING

Note: SERIAL NO. 74701 AND ABOVE

$

$

Currently unavailable

40

Cub Cadet IH-354392-R1

PIN, CONTROL VALVE -1-3/8 IN. LONG-

Note: SERIAL NO. 74701 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT.

$

$

Not available

41

Cub Cadet IH-354394-R1

PIN, CONTROL VALVE OPERATING LEVER

Note: SERIAL NO. 74701 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT

$

$

Not available

42

Cub Cadet IH-354395-R1

YOKE, CONTROL ROD ADJUSTABLE -2 IN. LONG-

Note: SERIAL NO. 74701 & ABOVE

$

$

Currently unavailable

43

VALVE, CONTROL

Note: NOT SERVICED SEPARATELY -ORDER CYLINDER BLOCK ASSY

$

$

Not available

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO SQ-HD PIPE CONTROL VALVE

$

$

Currently unavailable

Cub Cadet IH-102570

SCREW, 1/4-20 X 3/8 HEX-SOC-HD CUP POINT SET IN CONTROL VALVE

$

$

Not available

44

Cub Cadet IH-351983-R1

GASKET, CYLINDER BLOCK COVER

$

$

Not available

45

Cub Cadet IH-351982-R1

COVER, CYLINDER BLOCK BOTTOM

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3 4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

46

Cub Cadet IH-354269-R1

SCREEN, RELIEF VALVE

Note: USED WITH BLOCKS IH-354383-R1 THROUGH IH-354383-R4

$

$

Not available

47

Cub Cadet IH-354264-R91

VALVE ASSY, RELIEF

Note: USED WITH BLOCKS, IH-354383-R1 THROUGH IH-354383-R4

$

$

Currently unavailable

48

Cub Cadet IH-354382-R11

ELBOW W/SCREEN, IH-354269-R1 AND VALVE, IH-354264-R91, RELIEF VALVE

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Currently unavailable

49

Cub Cadet IH-354269-R1

SCREW, RELIEF VALVE

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Not available

50

Cub Cadet IH-354264-R91

VALVE ASSY, RELIEF

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Currently unavailable

51

Cub Cadet IH-354397-R11

COUPLING W/NUT, IH-19984-R1, RELIEF VALVE

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Currently unavailable

52

Cub Cadet IH-19984-R1

NUT, 7/16-24 NYLON INSERT HI-DUTY TUBE FITTING

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Not available

53

Cub Cadet IH-354398-R11

TUBE W/TWO NUTS, IH-19984-R1, RELIEF VALVE

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Currently unavailable

54

Cub Cadet IH-355966-R1

O-RING, 7/16 X 5/8 X 3/32

Note: CONNECTING ROD YOKE SEAL- -SERIAL NO. 138825 & ABOVE

$

$

Not available

55

Cub Cadet IH-30402D

ELBOW, 7/16-24 X 90 DEG HI-DUTY TUBE MALE PIPE

Note: USED WITH BLOCK, IH-351981-R1- -SERIAL NOS 74701 TO 85189

$

$

Currently unavailable

56

Cub Cadet IH-352017-R1

LEVER, CONTROL VALVE OPERATING

Note: SERIAL NO. 74700 AND BELOW

$

$

Currently unavailable

57

Cub Cadet IH-352021-R1

PIN, CONTROL VALVE - 1-1/8 IN. LONG

Note: SERIAL NO. 74700 AND BELOW

$

$

Currently unavailable

58

Cub Cadet IH-581028-R1

PIN, CONTROL VALVE OPERATING LEVER

Note: SERIAL NO. 74700 AND BELOW

$

$

Currently unavailable

59

Cub Cadet IH-352022-R1

YOKE, CONTROL ROD ADJUSTABLE -1 IN LONG-

Note: SERIAL NO. 74700 & BELOW

$

$

Currently unavailable

Cub Cadet IH-372703-R5

FLUID, HY-TRAN -QUART CAN-
(Superseded to 737-3025)

Note: AS REQUIRED

$

$

Not available

Cub Cadet IH-372704-R5

FLUID, HY-TRAN -GALLON CAN-

Note: AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-372705-R5

FLUID, HY-TRAN -FIVE GALLON CAN-
(Superseded to 737-3035)

Note: AS REQUIRED

$

$

Not available

Cub Cadet IH-407024

FLUID, HY-TRAN -FIFTEEN GALLON CAN-

Note: AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-354008-R95

PACKAGE, CYLINDER BLOCK GASKET AND SEAL RING

Note: CONSISTS OF THE FOLLOWING 11 ITEMS

$

$

Not available

Cub Cadet IH-351983-R1

GASKET

$

$

Not available

Cub Cadet IH-351989-R6

GASKET

$

$

Not available

Cub Cadet IH-352034-R1

GASKET

$

$

Not available

Cub Cadet IH-253070-R1

O-RING

$

$

Not available

Cub Cadet IH-350667-R1

O-RING

$

$

Not available

Cub Cadet IH-355966-R1

O-RING

$

$

Not available

Cub Cadet IH-355967-R1

O-RING
(Superseded to 721-3008)

$

$

Not available

Cub Cadet IH-350672-R1

RING

$

$

Not available

Cub Cadet IH-352004-R1

RING

$

$

Not available

Cub Cadet IH-461173-R1

RING

$

$

Not available

Cub Cadet IH-13727D

WASHER

$

$

Not available

Cub Cadet IH-354646-R91

PACKAGE, CONTROL VALVE LEVER FIELD IMPROVEMENT

Note: -USED WITH BLOCK, IH-351981-R1-

$

$

Currently unavailable

Cub Cadet IH-354391-R91

LEVER

$

$

Currently unavailable

Cub Cadet IH-351697-R1

LOCK

$

$

Currently unavailable

Cub Cadet IH-107762

PIN
(Superseded to 714-3010)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet IH-137130

PIN

$

$

Not available

Cub Cadet IH-350680-R2

PIN

$

$

Currently unavailable

Cub Cadet IH-354392-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-354394-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-352027-R2

STOP

$

$

Currently unavailable

Cub Cadet IH-354395-R1

YOKE

$

$

Currently unavailable
