LR 100 (954000572-A) - Husqvarna Lawn Tractor (1995-03) Engine/Throttle Parts Diagram

Lawn Tractor

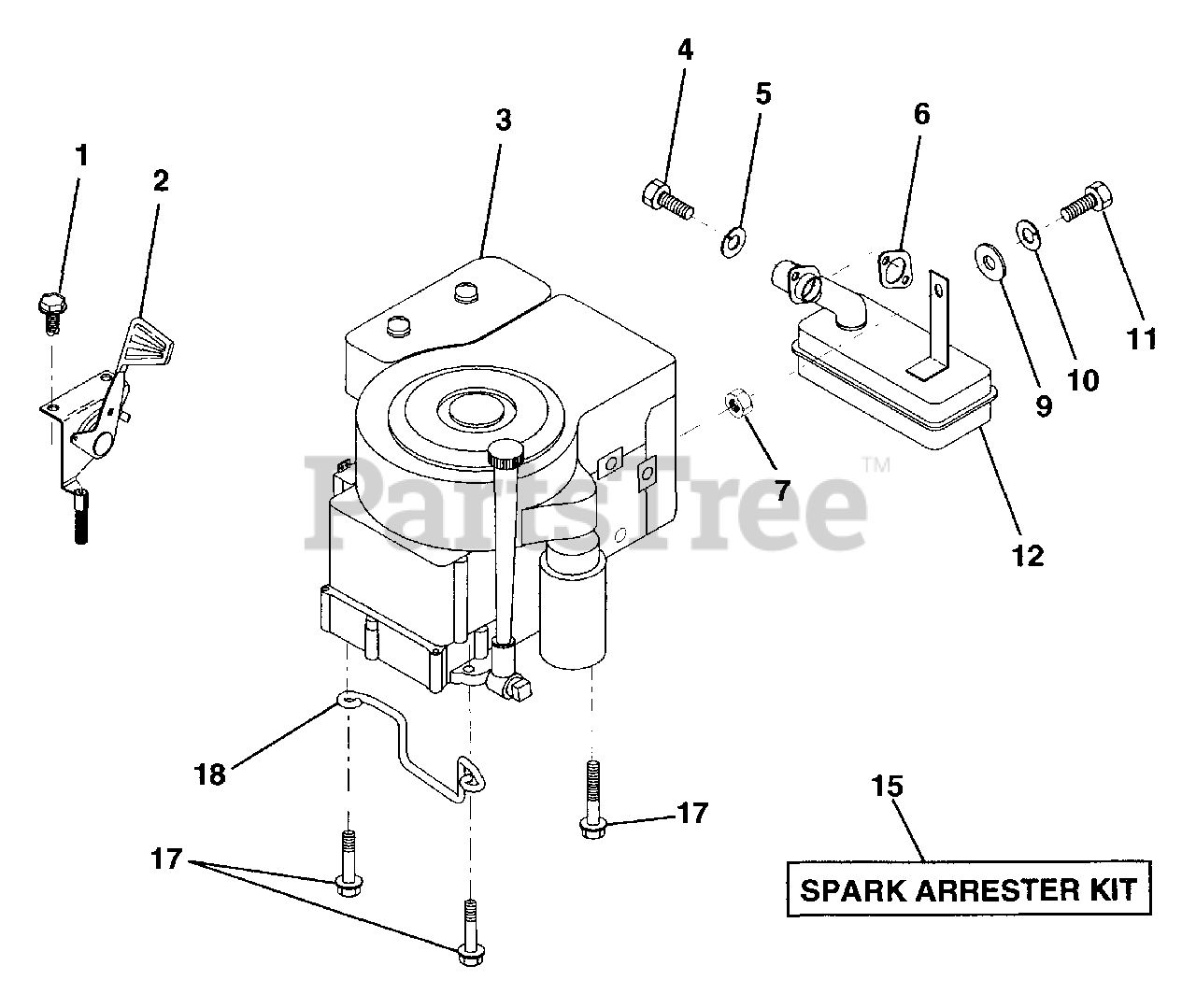

Engine/Throttle Parts Diagram

  • Title

1

Husqvarna 817720408

Screw, Hex Head, Thread-Cutting 1/4-20 x 1/2
(Superseded to 596437001)

$3.49

$

In Stock, Qty 8

0

2

Husqvarna 532132752

Control, Throttle

$

$

Not available

3

Engine, Briggs and Stratton

Note: Model Number 254707

$

$

Not available

4

Husqvarna 871070512

Screw, Hex Cap Head 5/16-18 x 3/4
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 810040500

Washer, Lock, Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

6

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873220500

Nut Fin H 5/16 - 18
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 819101216

Washer 5/16 x 3/4 x 16 Gauge
(Superseded to 734115441)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 810040400

Washer, Lock, Heavy Helical Spring 1/4
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 874780416

Bolt, Hex, Fin. 1/4-20 UNC x 1
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532137437

Muffler

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional)

$193.99

$

In Stock, only 1 left!

0

17

Husqvarna 817490624

Screw, Hex Washer Head, Thd., Roll. 3/8-16 x 1-1/2
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

18

Husqvarna 532126636

Keeper, Ground Drive Belt

$

$

Not available
