LR 100 (954000572) - Husqvarna Lawn Tractor (1995-03) Seat Assy. Parts Diagram

Lawn Tractor

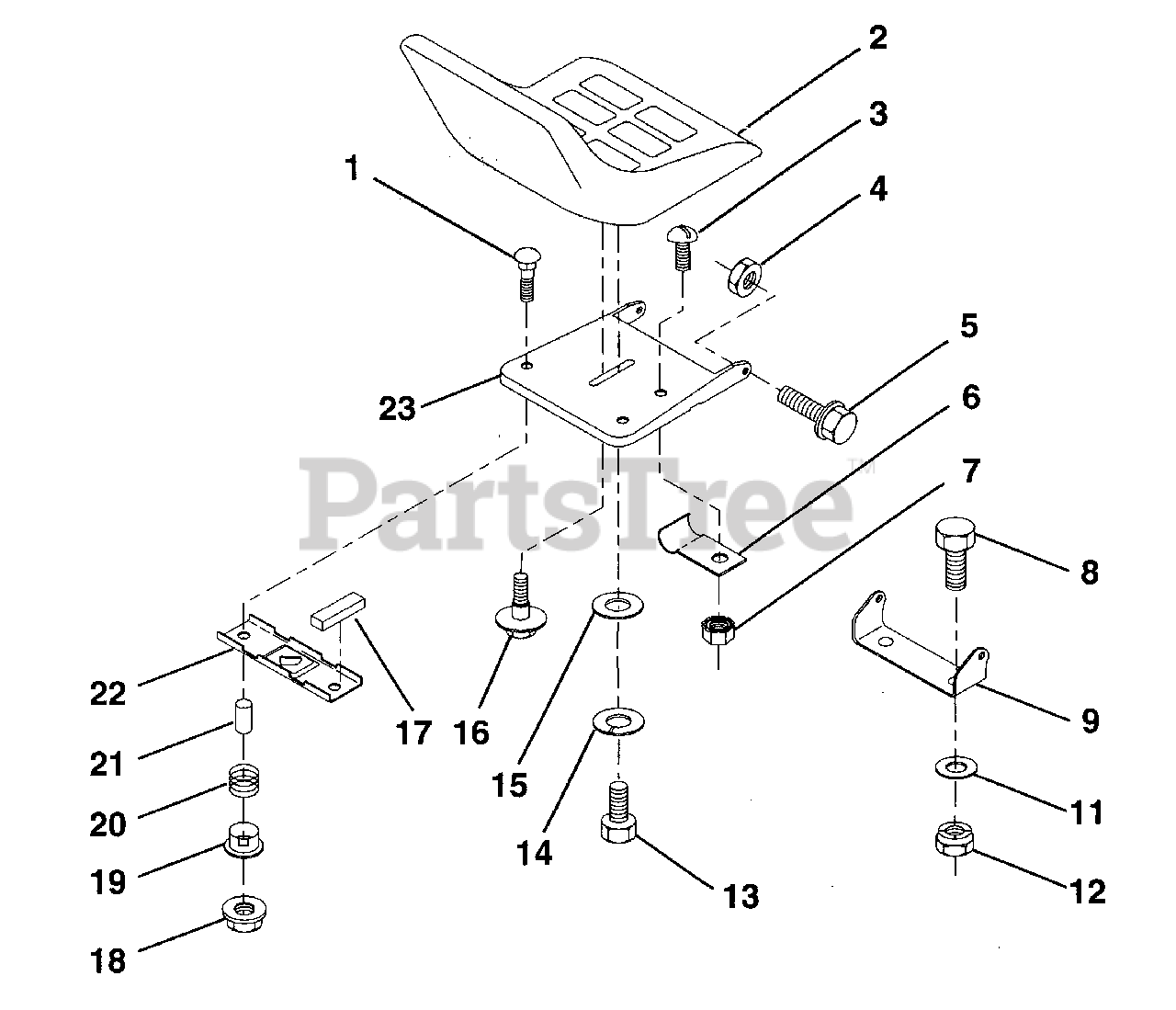

Seat Assy. Parts Diagram

  • Title

1

Husqvarna 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Husqvarna 532130875

Seat
(Superseded to 532401042)

$206.99

$

In Stock, only 1 left!

0

3

Husqvarna 874641008

Screw, Slotted Pan Head #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680500

Nut, Crown lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532105529

Bolt, Shoulder 5/16-18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 532124967

Clip, Insulated

$

$

Not available

7

Husqvarna 873951000

Nut, Hex, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874760612

Bolt, Hex, Fin. 3/8-16 UNC x 3/4

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 532126656

Bracket, Pivot, Seat

$

$

Not available

11

Husqvarna 819133210

Washer 12/32 x 2 x 10 Gauge
(Superseded to 532413524)

$

$

Not available

12

Husqvarna 873680600

Nut, Crown lock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780814

Bolt, Hex, Fin. 1/2-13 UNC x 7/8 Grade 5
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040800

Washer, Lock, Heavy Helical Spring

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532121251

Strip, Foam

$

$

Not available

18

Husqvarna 532123976

Nut, Hex, Large, Flangelock
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532134300

Spacer, Split

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532121246

Bracket, Switch Mounting
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

23

Husqvarna 532131451

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0
