LR 100 (954000572) - Husqvarna Lawn Tractor (1995-03) Transaxle Parts Diagram

Lawn Tractor

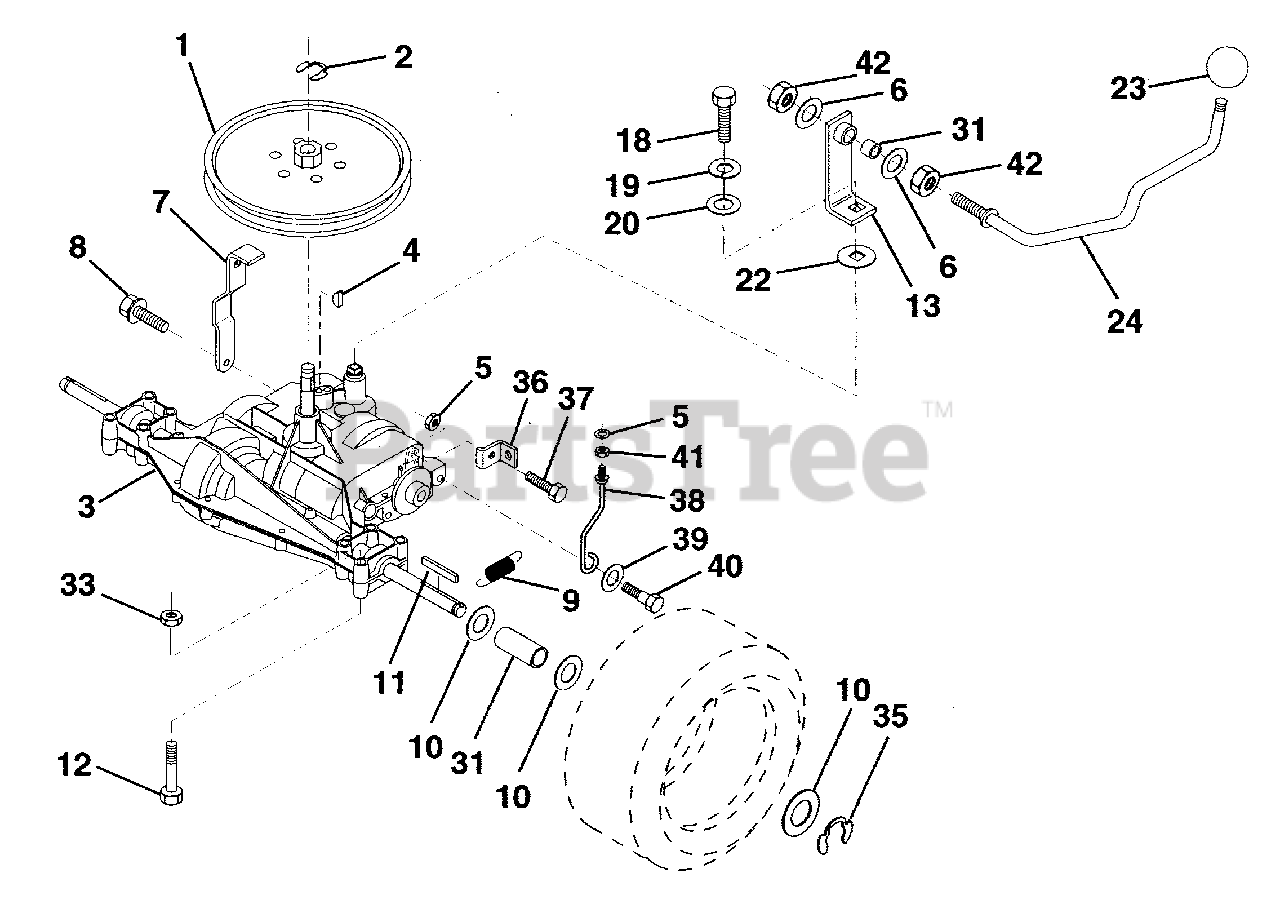

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 14

0

3

Transaxle, Peerless, 5 Speed Model Number 2000-07

$

$

Not available

4

Husqvarna 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 819151612

Washer 15/32 x 1 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532133597

Strap, Torque

$

$

Not available

8

Husqvarna 817490512

Screw, Hex Head, Thd. Roll. 5116-18 x 314
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121749

Washer 25/32 x l-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 844760644

Bolt Fin Hex 3/8 - 16 x 2 3/4

$

$

Currently unavailable

13

Husqvarna 532137491

Bracket Asm., Shft Cntr

$

$

Not available

18

Husqvarna 870140412

Bolt, Hex Head, Fin. l/4-28 UNF x 3/4 Grade 8

$

$

Currently unavailable

19

Husqvarna 810040400

Washer, Lock l/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Gauge

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532106933

Knob, Shift Control

$7.49

$

In Stock, only 4 left!

0

24

Husqvarna 532131930

Rod, Shift Center

$

$

Not available

31

Husqvarna 862132985

Spacer

$

$

Currently unavailable

33

Husqvarna 873680600

Nut, Crownlock 3/8 x 16 Unc

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 17

0

36

Husqvarna 532131965

Bracket Brake

$

$

Currently unavailable

37

Husqvarna 872140506

Bolt, Carriage 5/l 6-l 8 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532131937

Keeper Belt RH

$

$

Not available

39

Husqvarna 819171612

Washer l/32 x 1 x 12 Ga.
(Superseded to 734117801)

$

$

Not available

40

Husqvarna 532171612

Bolt, Shoulder 5/26 - 18

$

$

Currently unavailable

41

Husqvarna 532132827

Nut, Crowlock 5/l 6 - 18

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 582065854

Nut, Centerlock

$

$

Currently unavailable
