LR 11 - Jonsered Rear-Engine Riding Mower (1998-01) DRIVE Parts Diagram

Rear-Engine Riding Mower

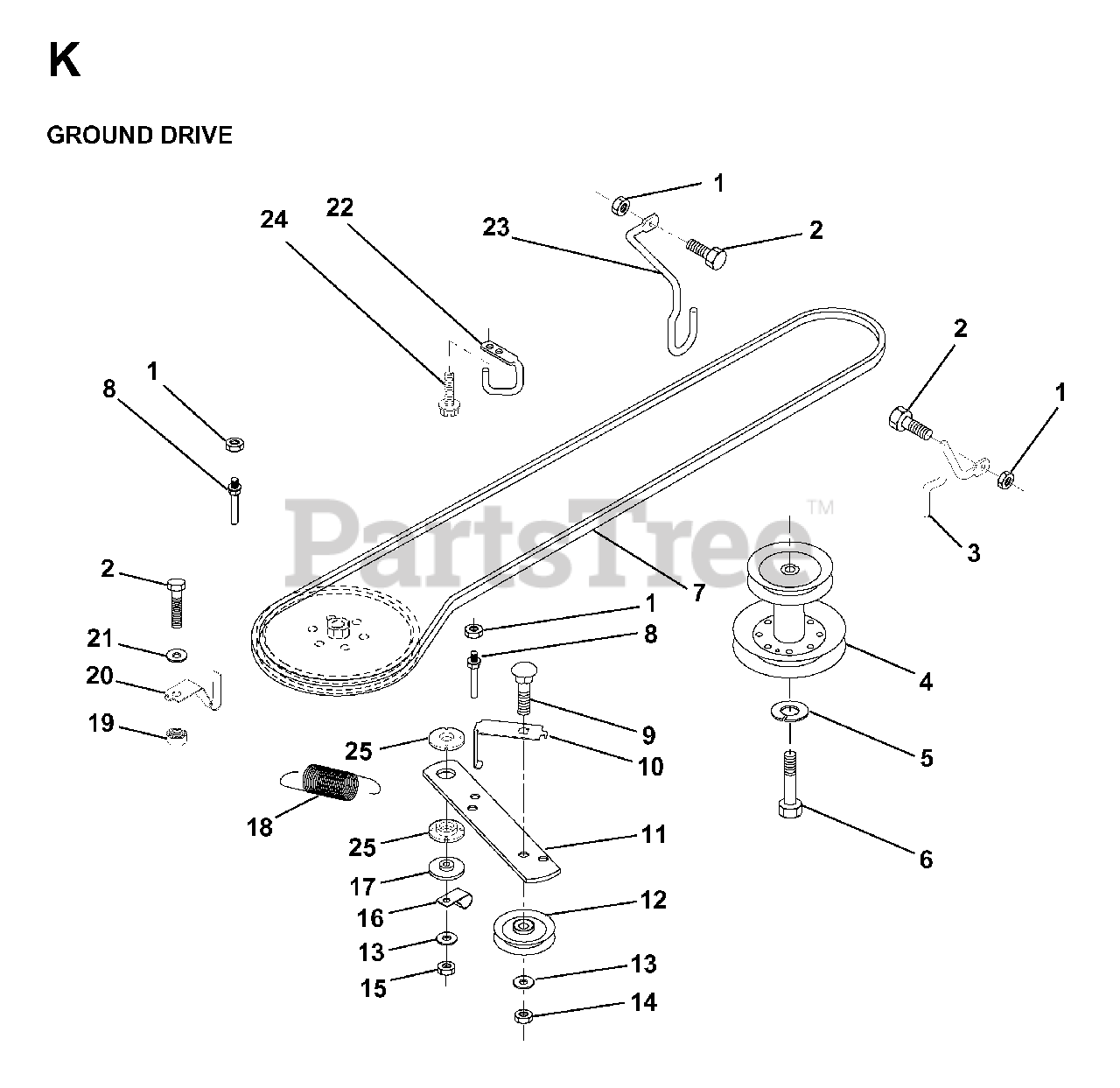

DRIVE Parts Diagram

  • Title

1

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

2

Jonsered 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 532141342

KEEPER/MOWER DRIVE RH

$

$

Not available

4

Jonsered 532138029

ENGINE PULLEY

$

$

Not available

5

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

6

Jonsered 871170744

HEX BOLT

$

$

Not available

7

Jonsered 531013129

No Description Available

$

$

Not available

8

Jonsered 532123405

KEEPER,DRIVE BELT
(Superseded to 532164173)

$6.99

$

In Stock, only 2 left!

0

9

Jonsered 872140612

BOLT

$

$

Not available

10

Jonsered 532123396

KEEPER.BELT.GROUND.DRIVE.IDLER

$

$

Not available

11

Jonsered 532150926

ARM, GROUND DRIVE CLUTCH

$

$

Not available

12

Jonsered 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

13

Jonsered 819131316

WASHER

$4.99

$

In Stock, only 3 left!

0

14

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

15

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

16

Jonsered 532126471

CLIP,INSULATOR

$

$

Not available

17

Jonsered 532150932

SPACER, RETAINER

$

$

Not available

18

Jonsered 532131459

SPRING.EXTENSION

$

$

Not available

19

Jonsered 873510500

NUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

20

Jonsered 532139919

KEEPER-T/A GROUND DRIVE BELT

$

$

Not available

21

Jonsered 819111016

WASHER
(Superseded to 734116301)

$

$

Not available

22

Jonsered 532123404

KEEPER,FRA DR BEL

$

$

Not available

23

Jonsered 532140916

KEEPER-MOWER DRIVE LH

$

$

Not available

24

Jonsered 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

25

Jonsered 532150935

BUSHING NYLON COLLERED

$

$

Not available
