LR 111 (954001212-A) - Husqvarna Lawn Tractor (1994-07) Engine Parts Diagram

Lawn Tractor

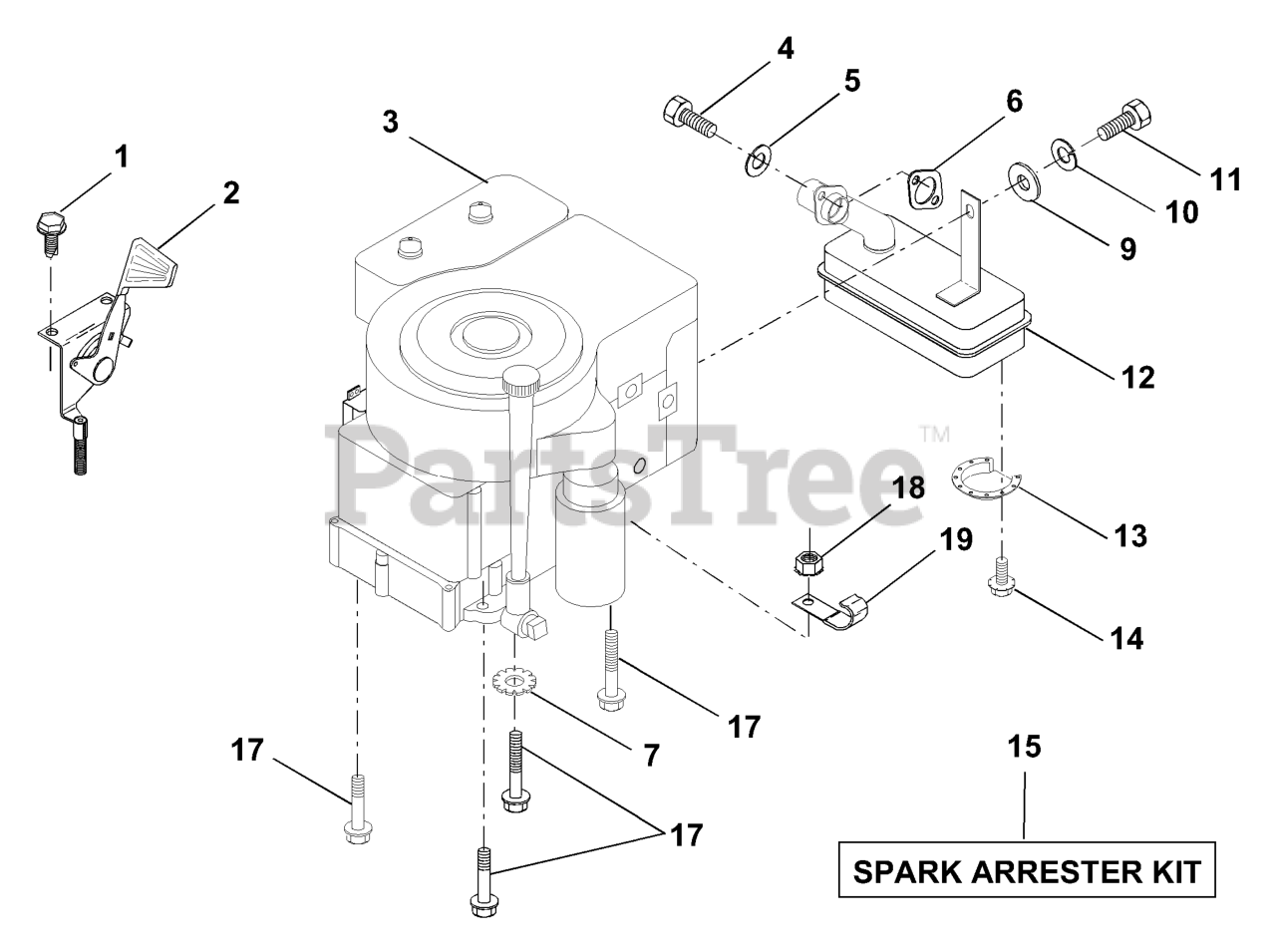

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

SCREW

$

$

Not available

2

Husqvarna 532132752

CONTROL.TH/CH.RH.BLK.FLG.26

$

$

Not available

3

Engine, Briggs and Stratton Model No. 28C707

$

$

Not available

4

Husqvarna 871070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532125593

GASKET ENGINE
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$5.99

$

In Stock, Qty 19

0

10

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

11

Bolt, Hex Fin.

Note: (Order From Eng. Mfg.)

$

$

Not available

12

Husqvarna 532137437

MUFFLER.SINGLE.B&S.12HP

$

$

Not available

13

Husqvarna 532144987

DEFLECTOR, MUFFLER

$

$

Not available

14

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: (Optional equipment)

$203.99

$

In Stock, only 1 left!

0

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.99

$

In Stock, Qty 6

0

18

Husqvarna 873510600

NUT

$

$

Not available

19

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available
