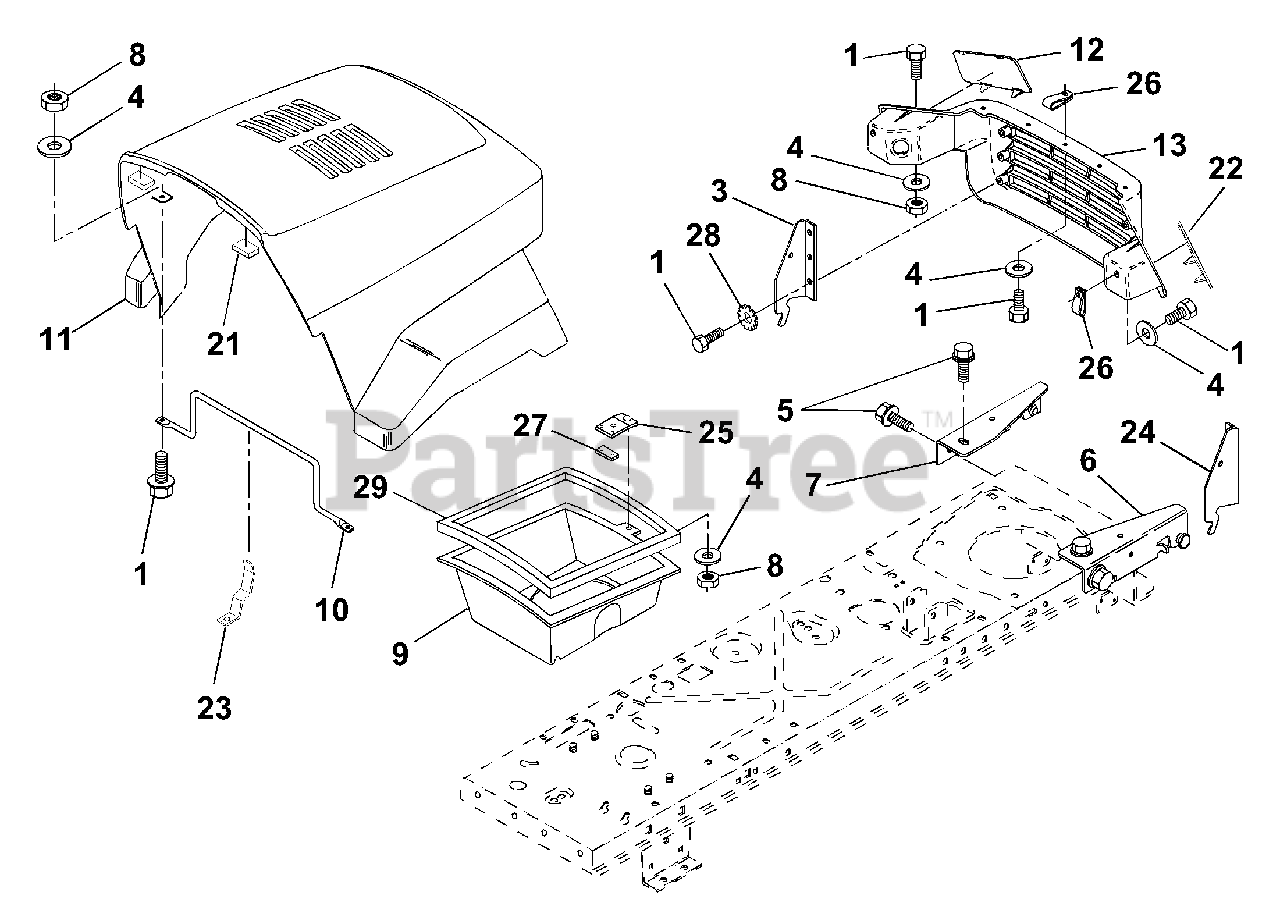

LR 111 (954001212-A) - Husqvarna Lawn Tractor (1994-07) Hood Parts Diagram

Lawn Tractor

Hood Parts Diagram

  • Title

1

Husqvarna 874780410

Bolt Fin Hex 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

3

Husqvarna 532128445

Bracket Pivot Hood LH

$

$

Not available

4

Husqvarna 819091016

Washer, Flat 1/4

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817490512

Screw Thdrol 5/16-28 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532140051

Bracket Asm. Pivot Hood RH

$

$

Not available

7

Husqvarna 532140050

Bracket Asm. Pivot Hood LH

$

$

Not available

8

Husqvarna 873680400

Nut Fin Hex 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532123840

Duct Air Hood

$

$

Not available

10

Husqvarna 532130850

Brace Hood

$

$

Not available

11

Husqvarna 532140142

Hood

$

$

Not available

12

Husqvarna 532130986

Lens LH

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532130984

Grille
(Superseded to 532404673)

$546.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532126938

Bumper Hood

$

$

Not available

22

Husqvarna 532130985

Lens RH

$

$

Not available

23

Husqvarna 532139969

Latch Hood

$

$

Not available

24

Husqvarna 532142873

Bracket Pivot Hood RH

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 532131037

Clip Asm. Duct Air

$

$

Not available

26

Husqvarna 532052921

Clip Tinnerman

$

$

Not available

27

Husqvarna 532131028

Clip Tinnerman

$

$

Not available

28

Husqvarna 811050400

Washer Lock Ext. Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 532120537

Strip Foam

$

$

Not available
