LR 12 (954000752-A) - Husqvarna Lawn Tractor (1994-05) Front Axle Parts Diagram

Lawn Tractor

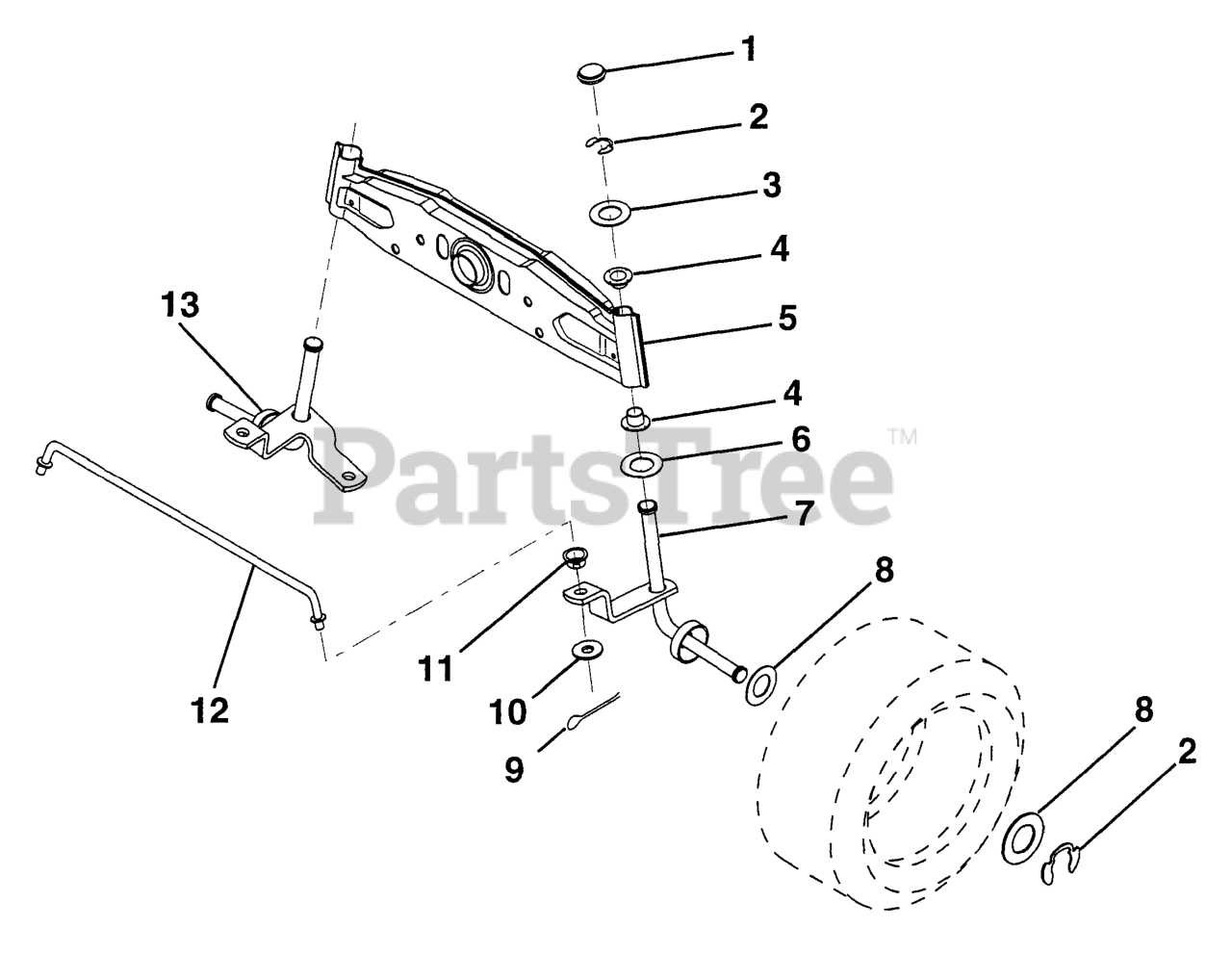

Front Axle Parts Diagram

  • Title

1

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

3

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532121922

NYLINER

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121914

AXLE FRONT

$

$

Not available

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121919

SPINDLE RH

$

$

Not available

8

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 532121924

ROD TIE

$

$

Not available

13

Husqvarna 532121918

Spindle Assembly, L.H.

$

$

Currently unavailable
