LR 12 (954000762-A) - Husqvarna Lawn Tractor (1994-01) Ground Drive Parts Diagram

Lawn Tractor

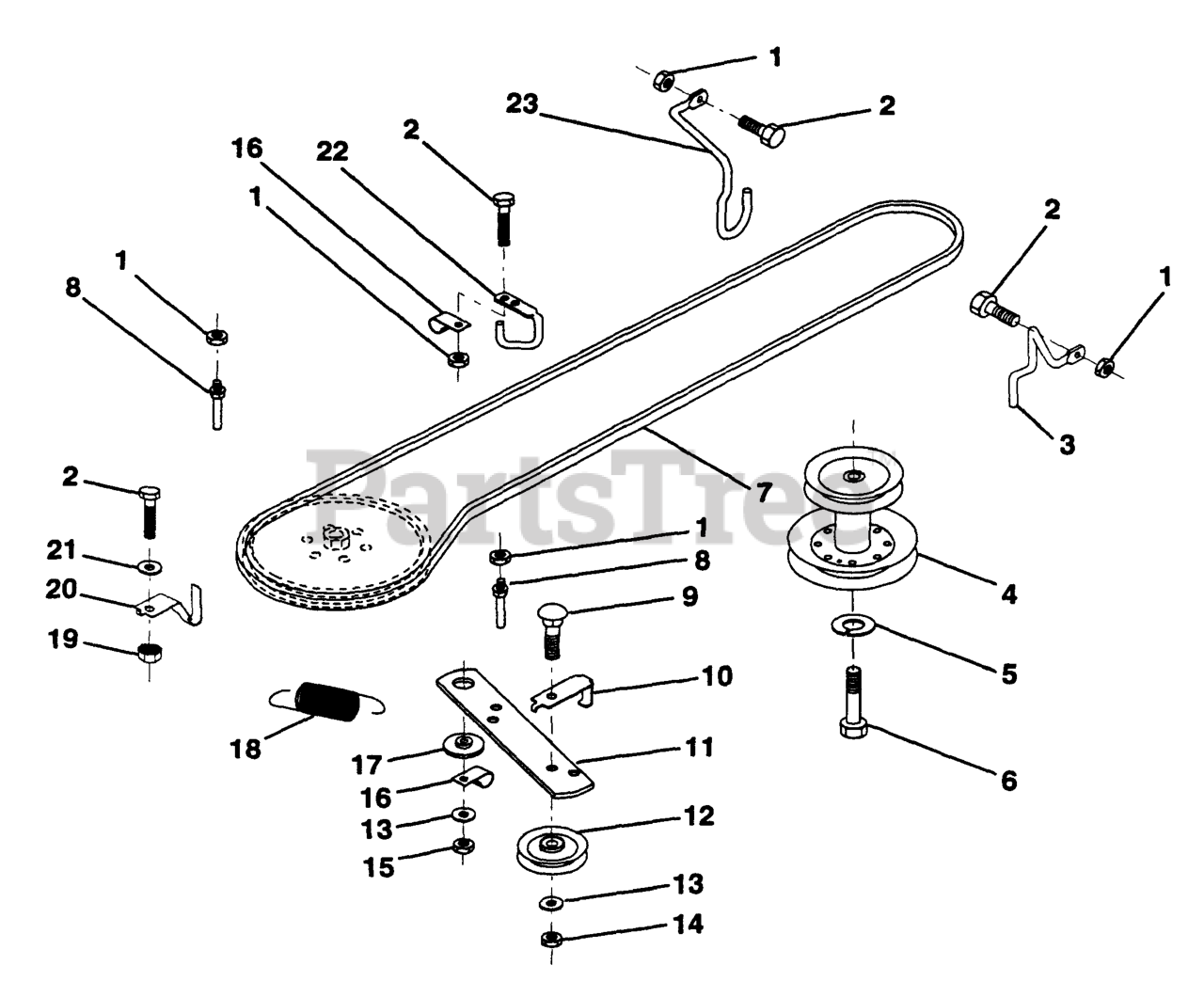

Ground Drive Parts Diagram

  • Title

1

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532141341

KEEPER.BELT.FRT.

$

$

Not available

4

Husqvarna 532138029

PULLEY.ENGINE.36/38 LR
(Superseded to 532140189)

$

$

Not available

5

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 871170744

Bolt, Hex Hd. 7/16-20 UNF Grade 5

$

$

Not available

7

Husqvarna 532124525

BELT

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532123405

KEEPER,DRIVE BELT
(Superseded to 532156109)

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$

$

Not available

10

Husqvarna 532123396

KEEPER.BELT.GROUND.DRIVE.IDLER

$

$

Not available

11

Husqvarna 532123395

ARM,DR CLUTCH GRO
(Superseded to 532140911)

$

$

Not available

12

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

15

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

16

Husqvarna 532126472

CLIP INSULATOR

$

$

Not available

17

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 532131459

SPRING.EXTENSION

$

$

Not available

19

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

20

Husqvarna 532139919

KEEPER-T/A GROUND DRIVE BELT

$

$

Not available

21

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$

$

Not available

22

Husqvarna 532123404

KEEPER,FRA DR BEL

$

$

Not available

23

Husqvarna 532142240

KEEPER

$

$

Not available
