LR 12 (954000762-A) - Husqvarna Lawn Tractor (1994-01) Hood Parts Diagram

Lawn Tractor

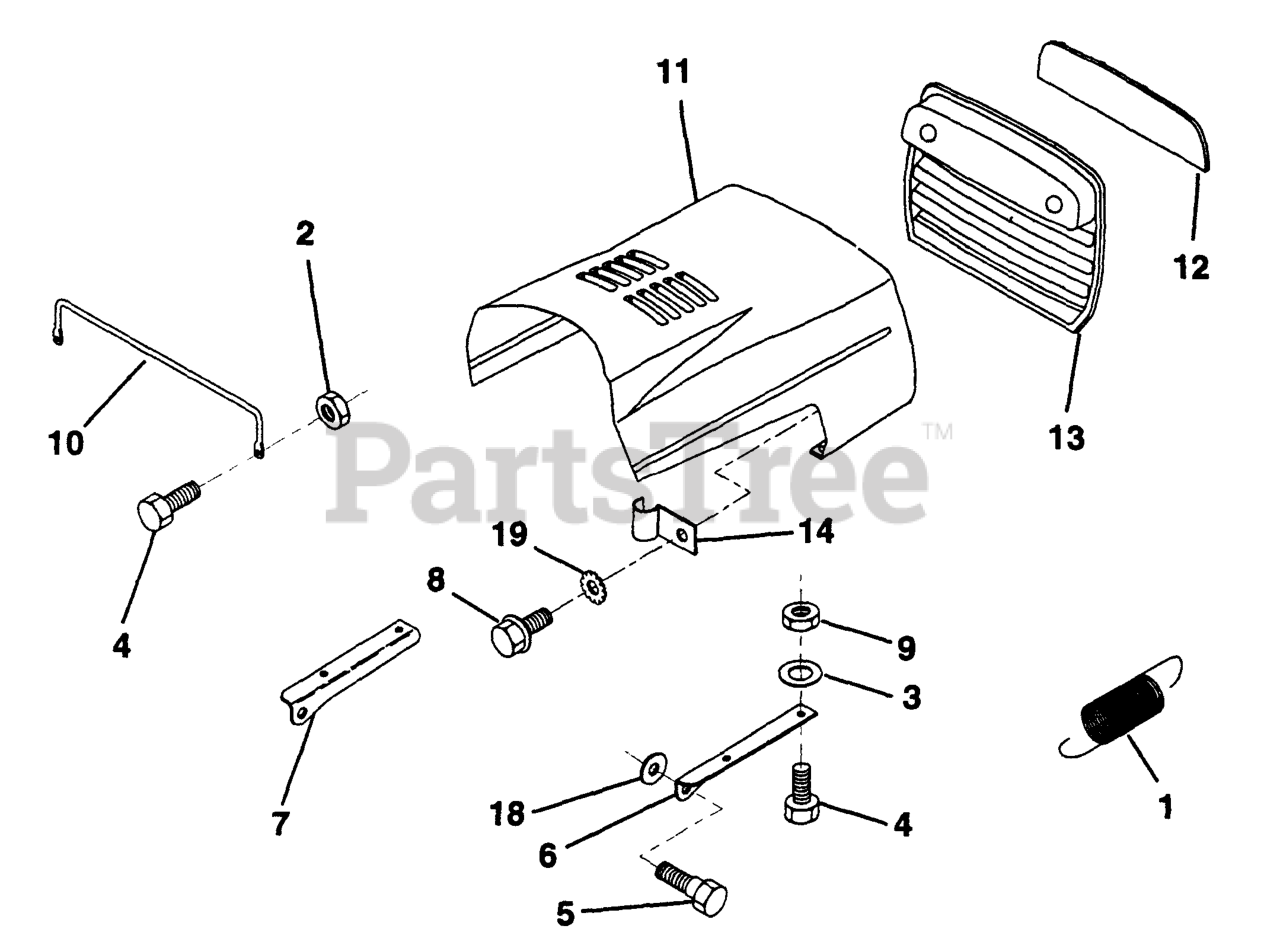

Hood Parts Diagram

  • Title

1

Husqvarna 532124657

EXT SPRING

$

$

Not available

2

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

4

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532126675

BOLT, SHOULDER
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 532122549

BRKT HOOD RH

$

$

Not available

7

Husqvarna 532122548

BRKT HOOD LH

$

$

Not available

8

Husqvarna 817521312

Screw, Sltd Hex Hd w/PI Washer

$

$

Not available

9

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532123693

BRACE,HOOD

$

$

Not available

11

Husqvarna 532140463

HOOD
(Superseded to 532132918)

$

$

Not available

12

Husqvarna 532122035

LENS

$

$

Not available

13

Husqvarna 532127029

GRILL

$

$

Not available

14

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

18

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 811030400

LOCKWASHER GT
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0
