LR 12 (954002701-B) - Husqvarna Lawn Tractor (1994-10) Hood Parts Diagram

Lawn Tractor

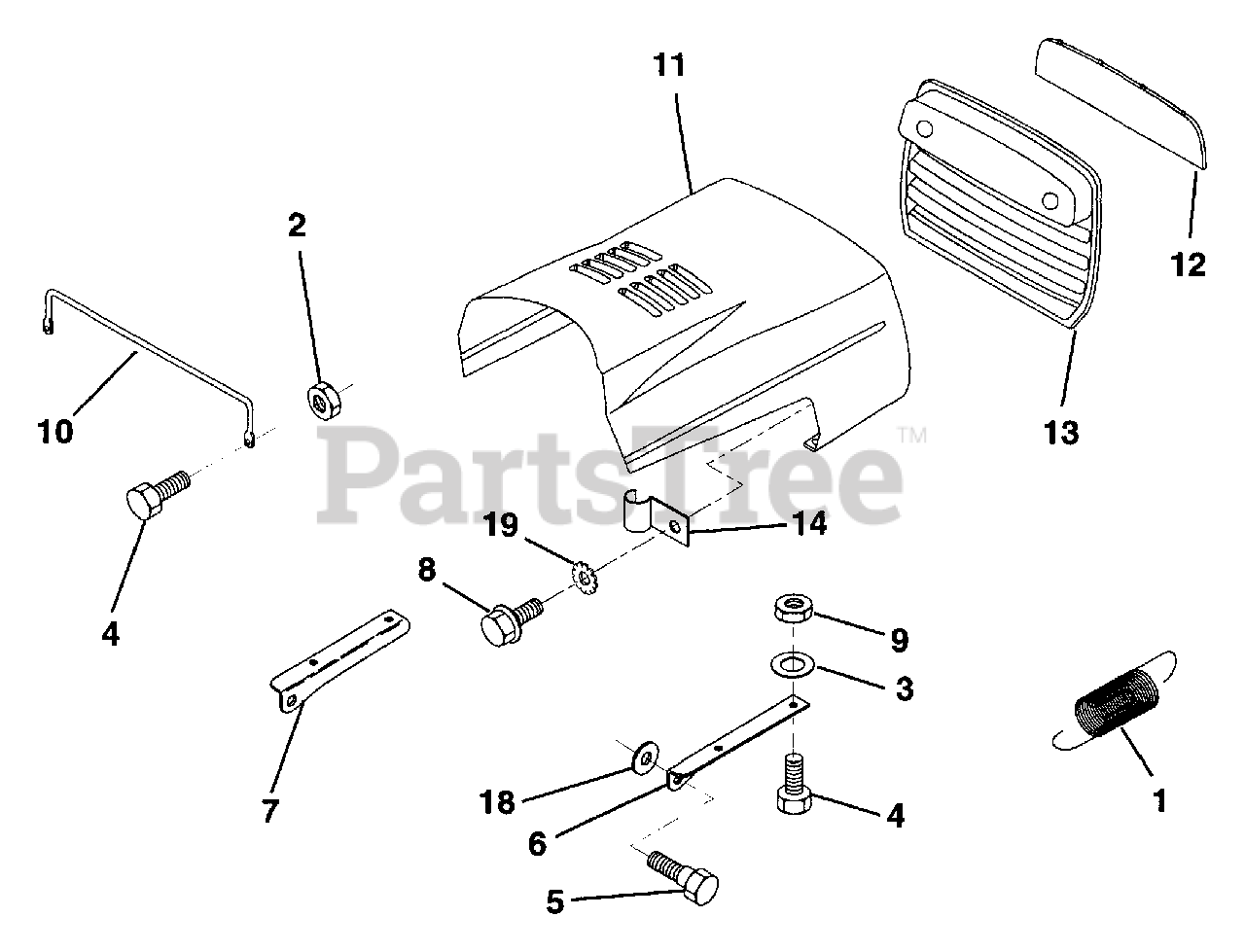

Hood Parts Diagram

  • Title

1

Husqvarna 532124657

Spring, Ext

$

$

Not available

2

Husqvarna 873680400

Nut, Keps
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

4

Husqvarna 874780412

Bolt, Fin Hex 1/4-20 x .75
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532139888

Bolt, Shoulder 5/16-18

$4.99

$

In Stock, Qty 6

0

6

Husqvarna 532122549

Bracket Hood RH

$

$

Not available

7

Husqvarna 532122548

Bracket Hood LH

$

$

Not available

8

Husqvarna 817521312

Screw, Sltd Hex Hd w/PI Washer

$

$

Not available

9

Husqvarna 873800400

Nut, Lock w/Insert 1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532123693

Brace, Hood

$

$

Not available

11

Husqvarna 532140463

Hood
(Superseded to 532132918)

$

$

Not available

12

Husqvarna 532122035

Lens, Headlight Bar

$

$

Not available

13

Husqvarna 532127029

Grille

$

$

Not available

14

Husqvarna 532124996

Clip, Line Fuel
(Superseded to 532002751)

$

$

Not available

18

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 811030400

Washer Lock 1/4 Ext/Int Tooth
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0
