LR 12 C (954820181) - Jonsered Rear-Engine Riding Mower (1996-01) MOWER LIFT LEVER Parts Diagram

Rear-Engine Riding Mower

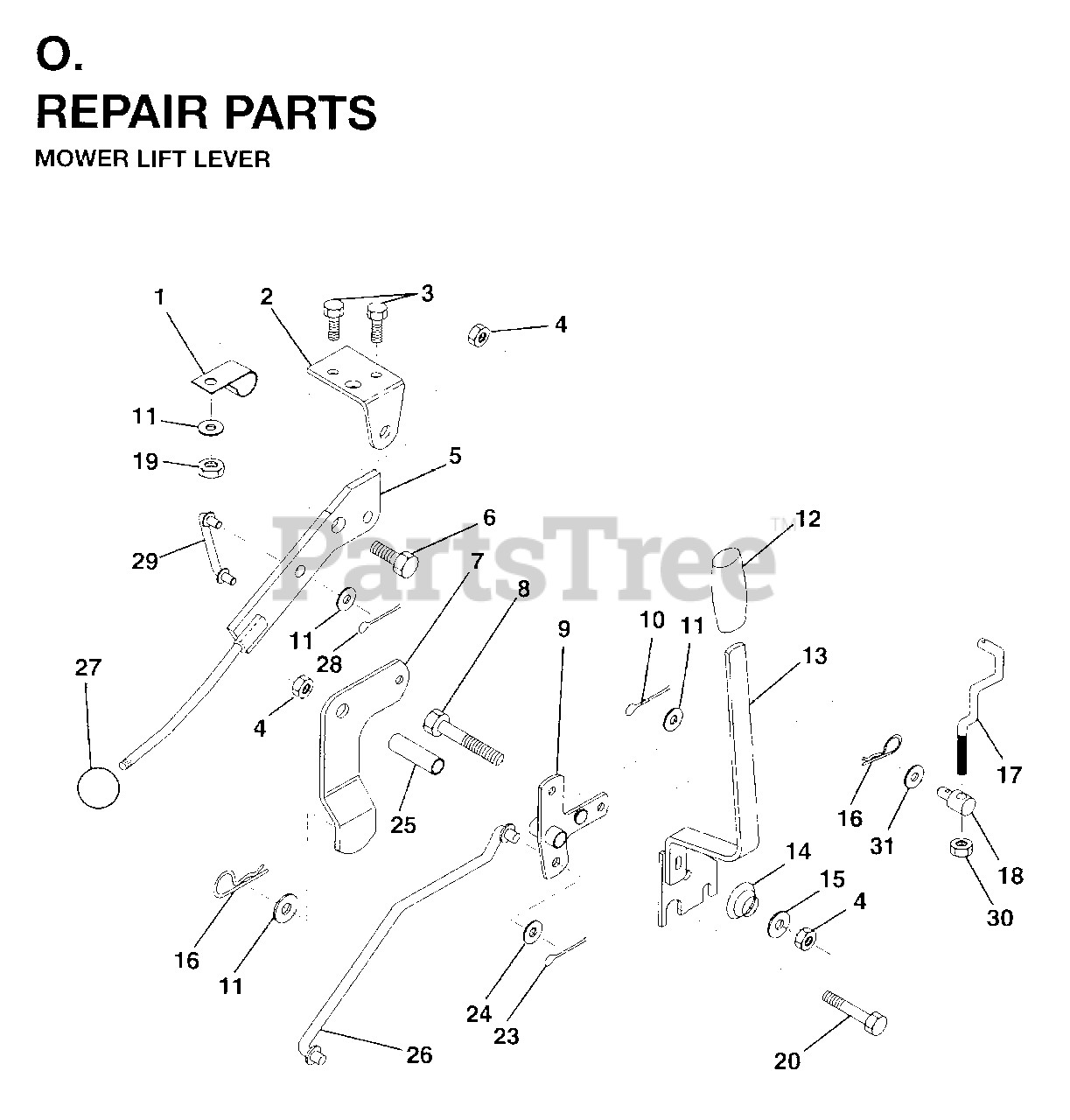

MOWER LIFT LEVER Parts Diagram

  • Title

1

Jonsered 532126470

CLIP,INSULATOR

$

$

Not available

2

Jonsered 532122018

BRKT CLUTCH

$

$

Not available

3

Jonsered 874780408

BOLT
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

4

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

5

Jonsered 532145187

CLUTCH LEVER

$

$

Not available

6

Jonsered 532106451

BOLT, SHOULDER LT

$

$

Not available

7

Jonsered 532135371

ASSEMBLY MOWER CLUTCH ARM

$

$

Not available

8

Jonsered 874760636

BOLT

$5.99

$

In Stock, only 1 left!

0

9

Jonsered 532121930

BELLCRANK,LIFT

$

$

Not available

10

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

11

Jonsered 734117201

WASHER
(Superseded to 819121414)

$

$

Not available

12

Jonsered 532122027

GRIP HANDLE

$

$

Not available

13

Jonsered 532139352

LIFT HANDLE ASSY

$

$

Not available

14

Jonsered 532123496

SPRING COMPRESSIO

$

$

Not available

15

Jonsered 734117201

WASHER
(Superseded to 819121414)

$

$

Not available

16

Jonsered 532004921

SPRING.RETAINER

$5.99

$

In Stock, only 2 left!

0

17

Jonsered 532127359

LINK LIFT FRT

$

$

Not available

18

Jonsered 532142028

TRUNNION

$

$

Not available

19

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

20

Jonsered 874760644

BOLT

$

$

Not available

23

Jonsered 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

24

Jonsered 734117801

WASHER - M12
(Superseded to 596040101)

$3.49

$

In Stock, Qty 20+

0

25

Jonsered 532121933

TUBE SPACER

$

$

Not available

26

Jonsered 532141470

LIFT ROD

$

$

Not available

27

Jonsered 532121466

KNOB
(Superseded to 121466X)

$

$

Not available

28

Jonsered 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131655

LINK MOWER CLUTCH

$

$

Not available

30

Jonsered 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

31

Jonsered 734117441

WASHER

$4.99

$

In Stock, only 1 left!

0
