LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Dash Parts Diagram

Lawn Tractor

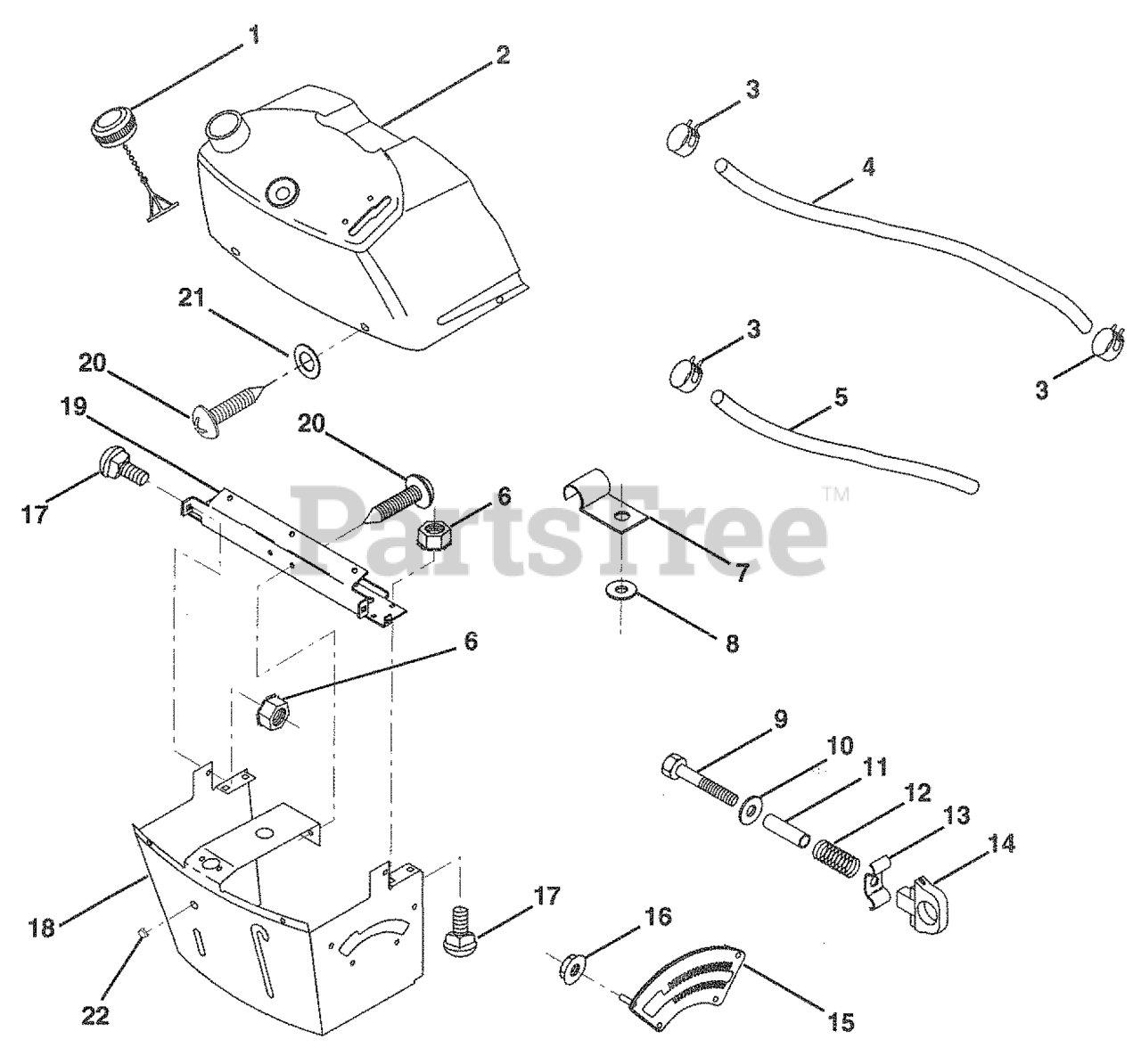

Dash Parts Diagram

  • Title

1

Husqvarna 532127399

FUEL CAP
(Superseded to 532142187)

$

$

Not available

2

Husqvarna 532130916

TANK & DASH
(Superseded to 532138395)

$

$

Not available

3

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

4

Husqvarna 532008544

FUEL LINE
(Superseded to 532000295)

$

$

Not available

5

Husqvarna 532008548

FUEL LINE T

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

8

Husqvarna 819091218

Washer 9/32 x 3/4 x 16 Ga.

$

$

Currently unavailable

9

Husqvarna 874760428

BOLT HEX FIN 1/4-20X1 3/4
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 819091413

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

11

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 532003720

SPRING.COMPRESSION

$

$

Not available

13

Husqvarna 532126450

KNOB HGT RETAINER

$

$

Not available

14

Husqvarna 532126115

KNOB

$

$

Not available

15

Husqvarna 532122023

ADJUSTER QUAD

$

$

Not available

16

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532130745

SUPT ASSY DASH

$

$

Not available

19

Husqvarna 532134744

CROSS BRACE

$

$

Not available

20

Husqvarna 818000408

Screw 1/4-20 x 1/2 SLFTTPG

$

$

Not available

21

Husqvarna 819090816

REPL BY 734 11 53-01
(Superseded to 734115301)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532134014

PLUG DOME

$

$

Not available
