LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Engine / Throttle Parts Diagram

Lawn Tractor

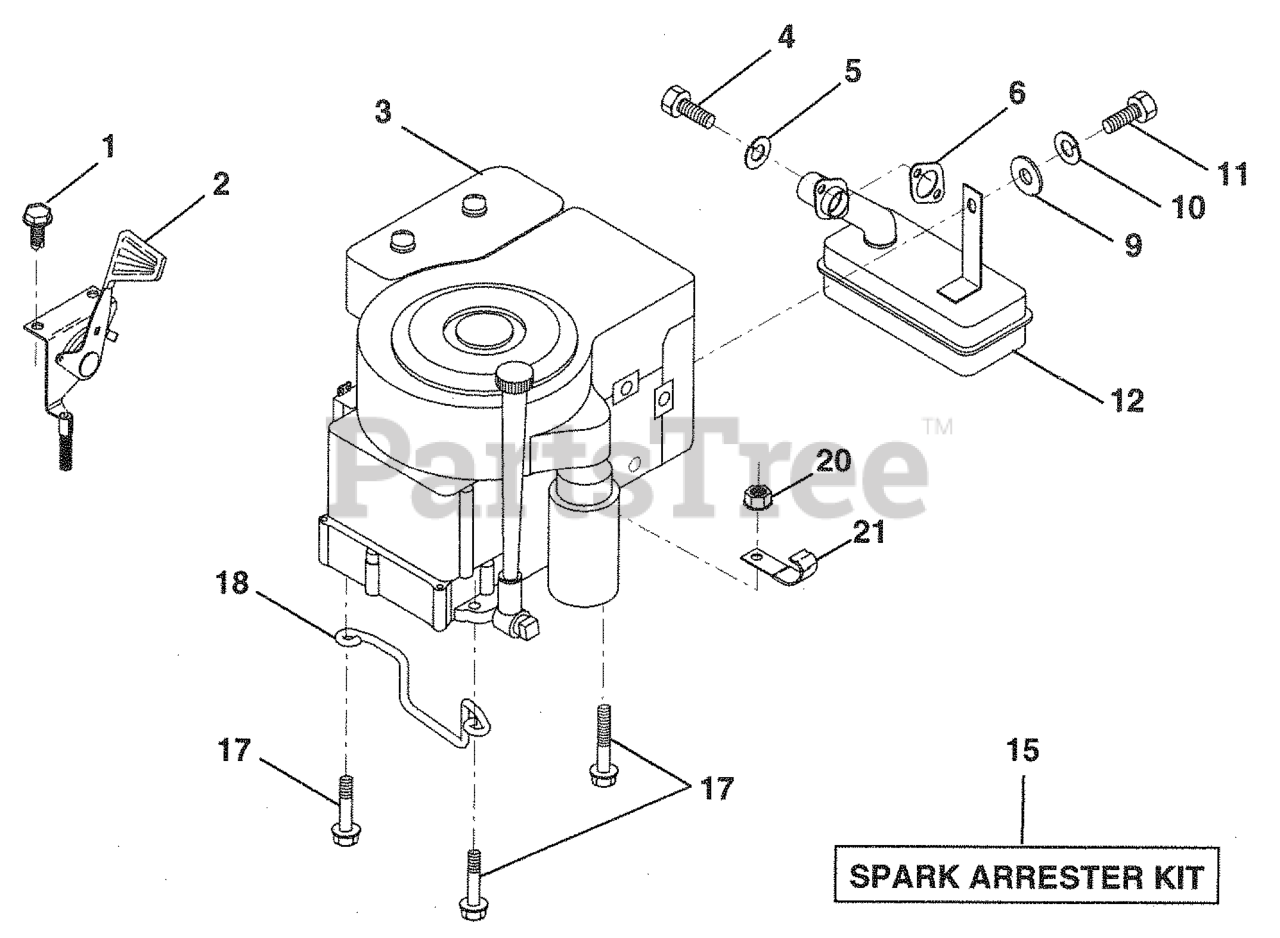

Engine / Throttle Parts Diagram

  • Title

1

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 532132752

CONTROL.TH/CH.RH.BLK.FLG.26

$

$

Not available

3

Engine, Briggs and Stratton Model No.282707

$

$

Not available

4

Husqvarna 871070512

SCREW
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532125593

GASKET ENGINE
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 374760412

Bolt, Hex Fin. 1/4-20 UNC x 3/4

$

$

Currently unavailable

12

Husqvarna 532137437

MUFFLER.SINGLE.B&S.12HP

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: (Optional Equipment)

$193.99

$

In Stock, only 1 left!

0

17

Husqvarna 317490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2

$

$

Currently unavailable

18

Husqvarna 332126636

Keeper, Ground Drive Beit

$

$

Currently unavailable

20

Husqvarna 373510600

Nut, Keps 3/8 - 16

$

$

Currently unavailable

21

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available
