LR 120 (954001242-B) - Husqvarna Lawn Tractor (1995-02) Brake/Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

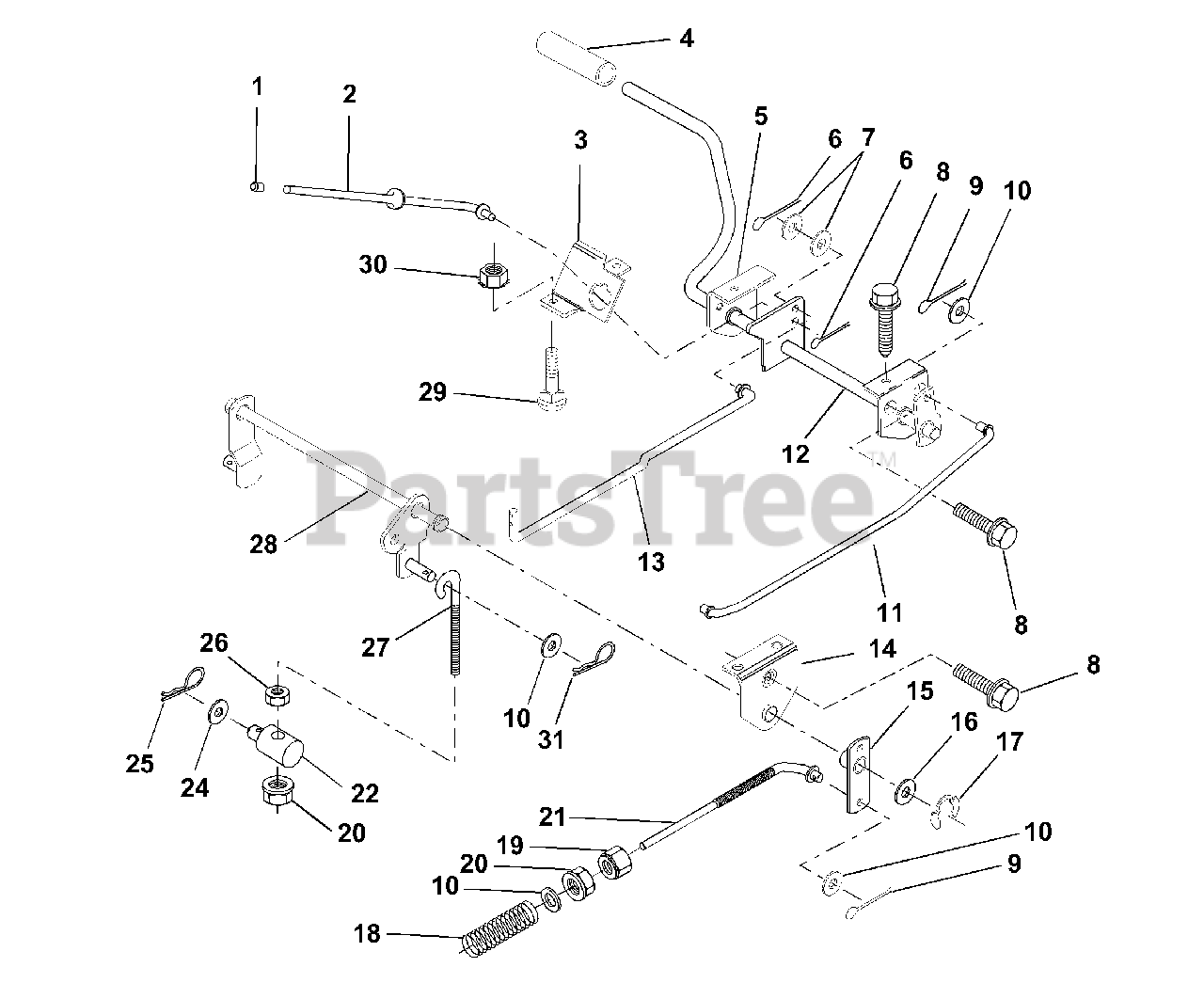

Brake/Rear Mower Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532071673

Cap, Plunger

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532123436

Rod, Parking Brake

$

$

Not available

3

Husqvarna 532123437

Bracket, Parking Brake

$

$

Not available

4

Husqvarna 532008156

Cover, Pedal

$

$

Not available

5

Husqvarna 532122504

Bracket, Clutch/Brake Pedal, L.H.

$

$

Not available

6

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

7

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 817490508

Screw, Hex, Thd. Roll. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532123543

Rod, Brake Front

$

$

Not available

12

Husqvarna 532139933

Assembly, Clutch/Brake Pedal

$

$

Not available

13

Husqvarna 532123394

Rod, Clutch

$

$

Not available

14

Husqvarna 532121978

Bracket, Lift, Shaft

$

$

Not available

15

Husqvarna 532133332

Assembly, Brake, Pivot, Arm

$

$

Not available

16

Husqvarna 819251816

Washer 25/32 x 1-1/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 812000034

Ring, Klip

$

$

Not available

18

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

19

Husqvarna 873350600

Nut, Hex, Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532131460

Rod, Rear Brake
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532144585

Trunnion, Lift

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124961

Spring, Retainer
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532127369

Link, Threaded

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532140776

Assembly, Rear Mower Lift

$

$

Not available

29

Husqvarna 872110506

Bolt, Carriage 5/16-18 UNC x 3/4

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 873510500

Nut, Keps 5/16-16 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532124660

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0
