LR 120 (954001242-B) - Husqvarna Lawn Tractor (1995-02) Dash Parts Diagram

Lawn Tractor

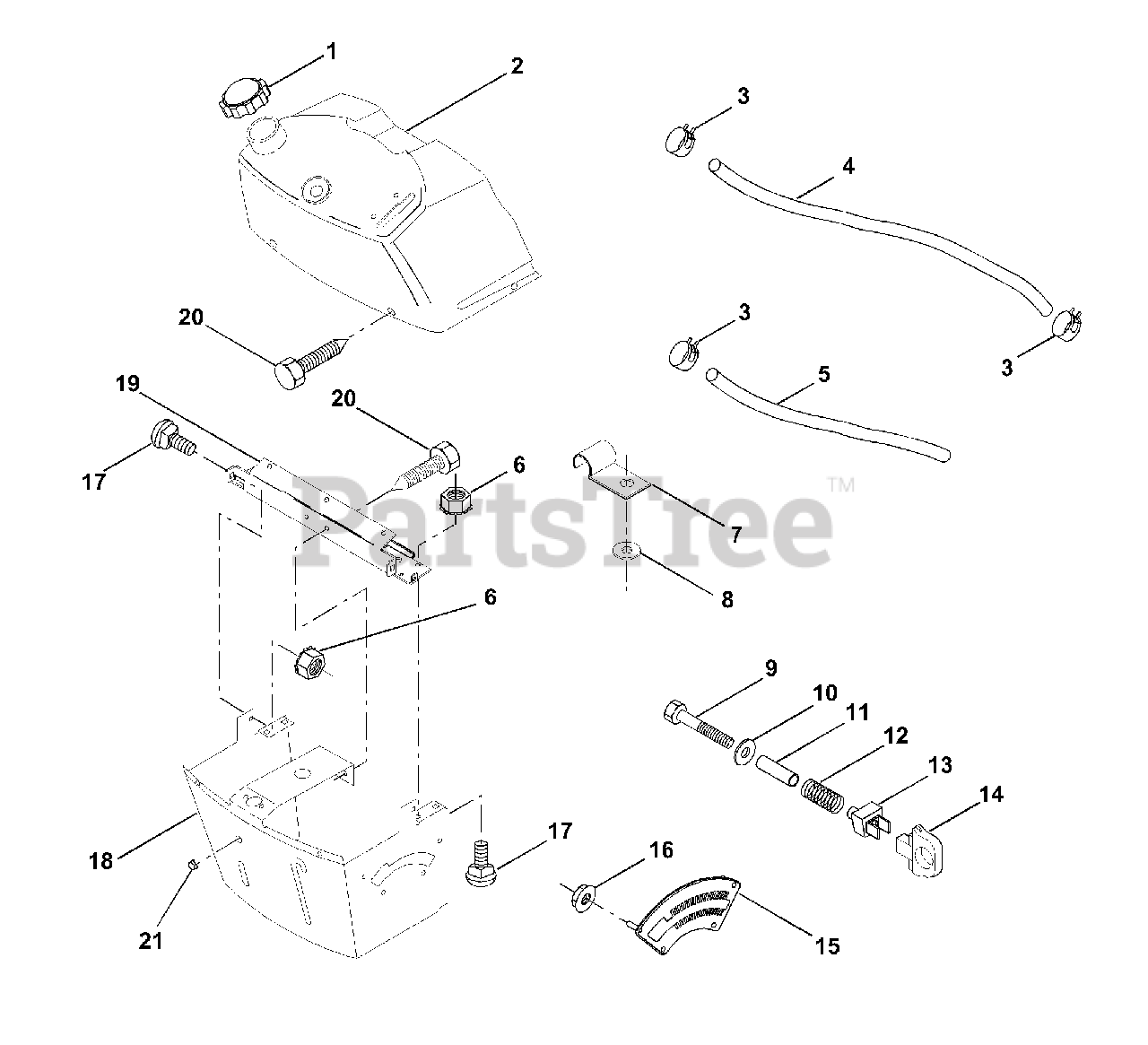

Dash Parts Diagram

  • Title

1

Husqvarna 532142187

Cap, Fuel

$

$

Not available

2

Husqvarna 532138395

Assembly, Dash & Fuel Tank

$

$

Not available

3

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, Qty 16

0

4

Husqvarna 532008544

Line, Fuel
(Superseded to 532000295)

$

$

Not available

5

Husqvarna 532008548

Line, Fuel

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 873640400

Nut, Hex, Keps 1/4-20

$

$

Not available

7

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

8

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

9

Husqvarna 874760428

Bolt, Hex, Fin 1/4-20 x 1-3/4
(Superseded to 874760432)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 819091413

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, Qty 5

0

12

Husqvarna 532003720

Spring

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532126450

Clip, Height Adjustment

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532126115

Knob, Height Stop

$

$

Not available

15

Husqvarna 532122023

Adjustment, Quadrant Height

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532124346

Nut, Self-Threading 3/16-18

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532130745

Support Assembly, Dash

$

$

Not available

19

Husqvarna 532134744

Brace, Cross

$

$

Not available

20

Husqvarna 817060408

Screw, Self-Tapping 1/4-20 x 1/2

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532134014

Plug Dome Black

$

$

Not available
