LR 120 (954001242-B) - Husqvarna Lawn Tractor (1995-02) Front Axle Parts Diagram

Lawn Tractor

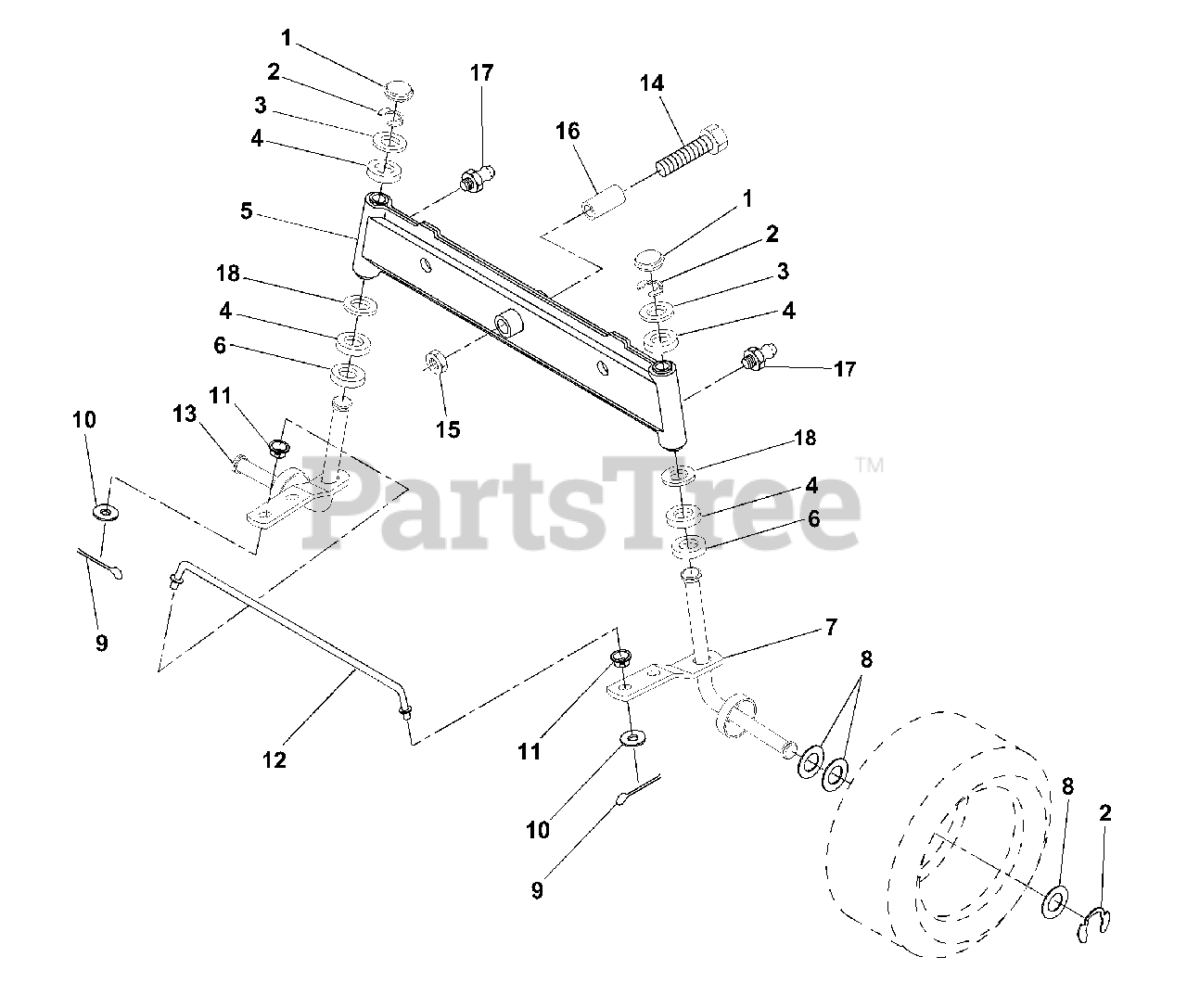

Front Axle Parts Diagram

  • Title

1

Husqvarna 532121232

Cap, Spindle

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 812000029

Ring, Clip

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532124937

Nyliner
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532142033

Axle, Front

$

$

Not available

6

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Husqvarna 532137062

Spindle, R.H. Asm.

$

$

Not available

8

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532126847

Bushing

$4.99

$

In Stock, Qty 15

0

12

Husqvarna 532130465

Rod, Tie
(Superseded to 532192757)

$34.99

$

In Stock, Qty 5

0

13

Husqvarna 532137061

Spindle, L.H. Asm.

$

$

Not available

14

Husqvarna 874011056

Bolt Hex 5/1-11 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873901000

Nut, Lock Flange 5/8-11
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532110438

Spacer Bearing Axle
(Superseded to 532155134)

$

$

Not available

17

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0
