LR 120 (954830051-B) - Husqvarna Lawn Tractor (1996-05) Steering Wheel Parts Diagram

Lawn Tractor

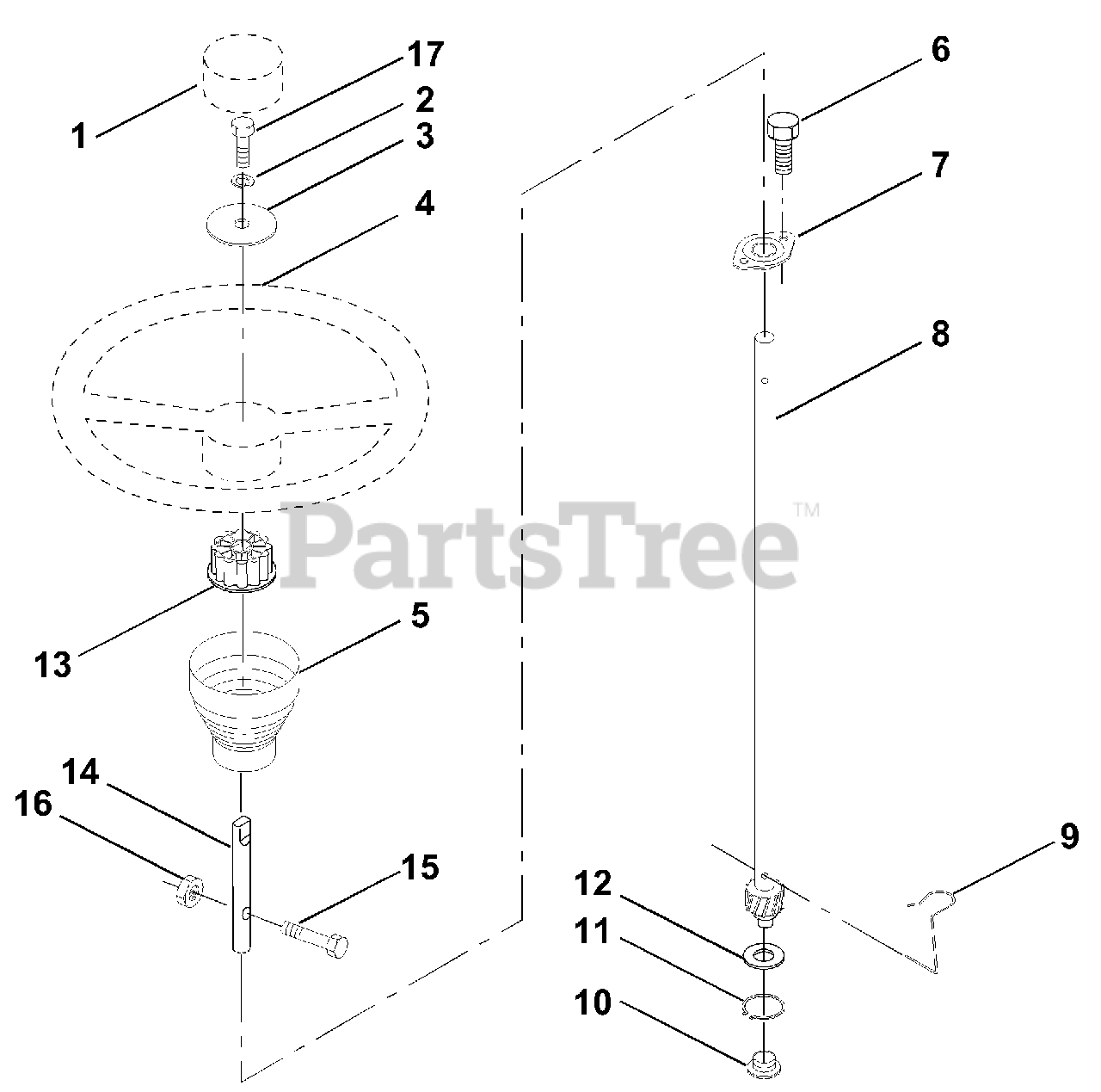

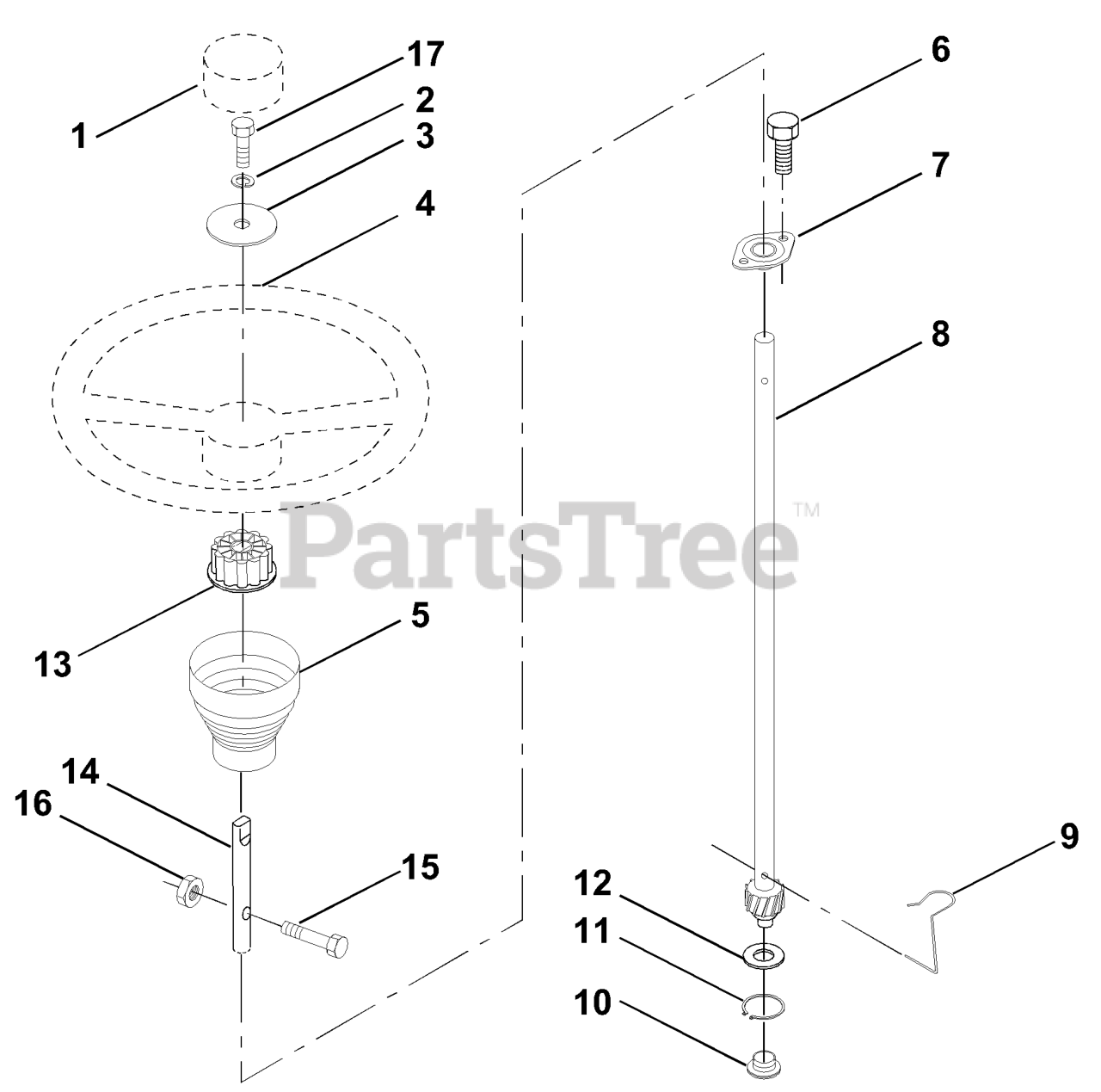

Steering Wheel Parts Diagram

  • Title

1

Husqvarna 532124416

Insert, Wheel, Steering

$

$

Not available

2

Husqvarna 810040600

Washer, Lock Hvy. Hlcl
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 819133808

Washer 12/32 x 2-3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available

4

Husqvarna 532124415

Wheel, Steering

$

$

Not available

5

Husqvarna 532127396

Sleeve, Steering

$

$

Not available

6

Husqvarna 817431008

Screw, Hex #10-16 x 1/2 TY-B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532102803

Bushing, Steering
(Superseded to 532155107)

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 532147391

Shaft, Steering
(Superseded to 532148966)

$

$

Not available

9

Husqvarna 532124210

Clip, Steering

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532123438

Bushing, Lower, Steering

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 812000045

Ring, Retaining

$7.49

$

In Stock, Qty 5

0

12

Husqvarna 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532100711

Adaptor, Wheel, Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

14

Husqvarna 532153720

Extension Shaft
(Superseded to 532153721)

$

$

Not available

15

Husqvarna 874780520

Bolt, Fin, Hex 5/16-18 UNC x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

Nut Lock, Hex W/Ins 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 UNC x 1

$6.49

$

Usually ships in 3-10 days

0
