LR 121 (954140001-B) - Husqvarna Lawn Tractor (1997-01) DRIVE Parts Diagram

Lawn Tractor

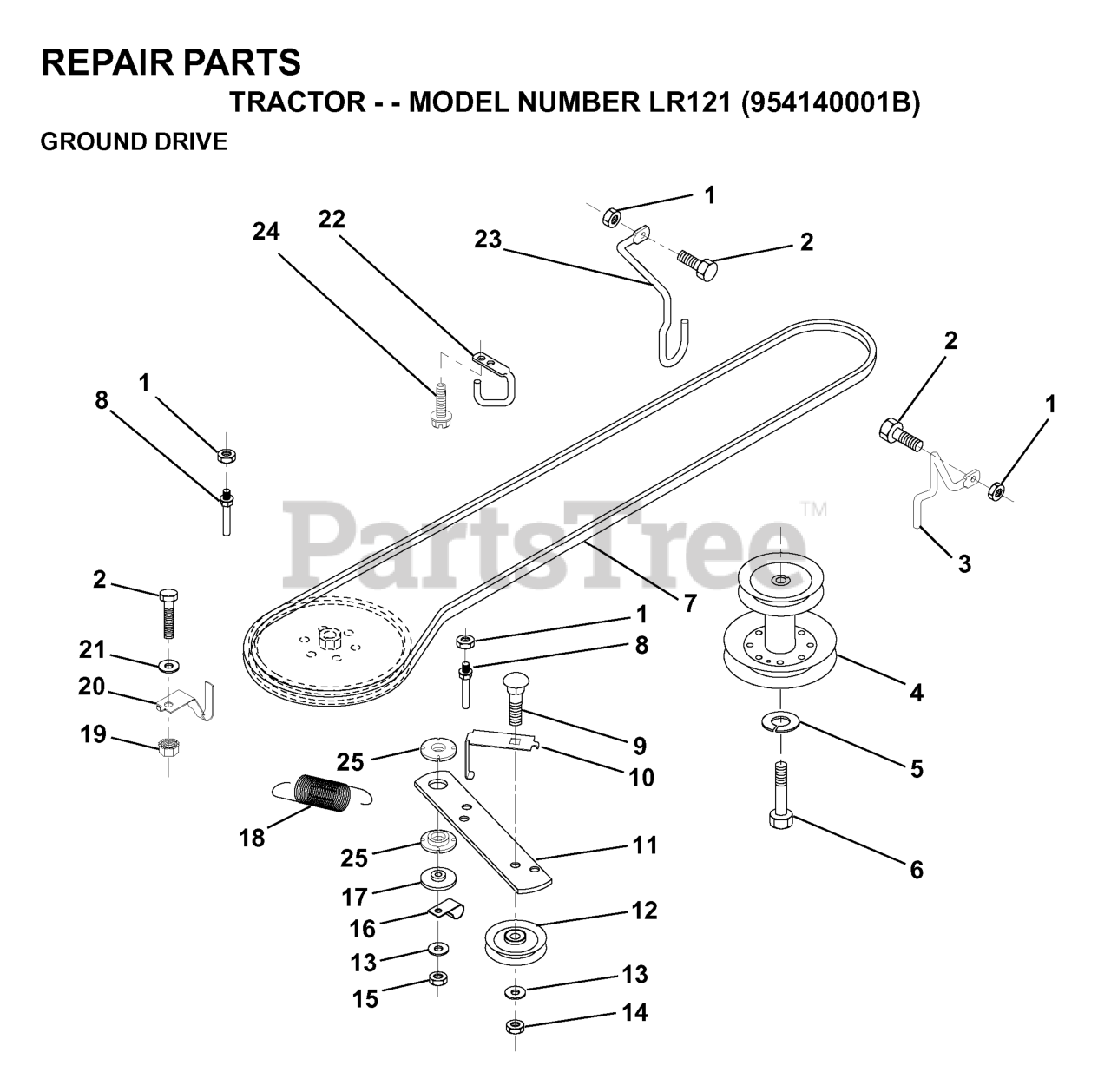

DRIVE Parts Diagram

  • Title

19

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150926

ARM, GROUND DRIVE CLUTCH

$

$

Not available

17

Husqvarna 532150932

SPACER, RETAINER

$

$

Not available

12

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532150935

BUSHING NYLON COLLERED

$

$

Not available

9

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532139919

KEEPER-T/A GROUND DRIVE BELT

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

15

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532123405

KEEPER,DRIVE BELT
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123404

KEEPER,FRA DR BEL

$

$

Not available

18

Husqvarna 532131459

SPRING.EXTENSION

$

$

Not available

10

Husqvarna 532123396

KEEPER.BELT.GROUND.DRIVE.IDLER

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140916

KEEPER-MOWER DRIVE LH

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532141342

KEEPER/MOWER DRIVE RH

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126520

BELT
(Superseded to 532419271)

$60.99

$

In Stock, only 3 left!

0

4

Husqvarna 532138029

PULLEY.ENGINE.36/38 LR
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

6

Husqvarna 871170744

Bolt, Hex Hd. 7/16-20 UNF Grade 5

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0
